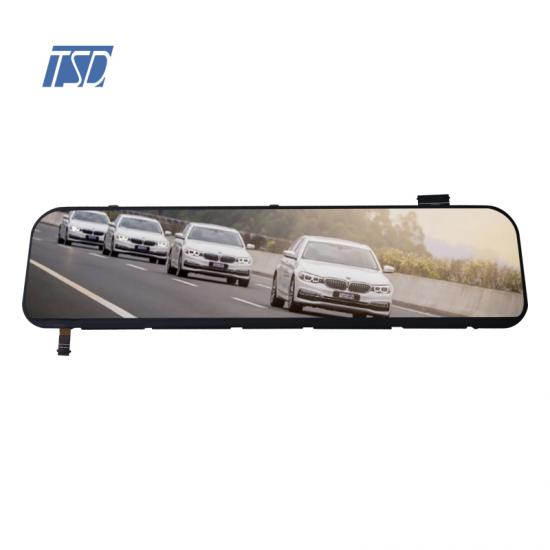

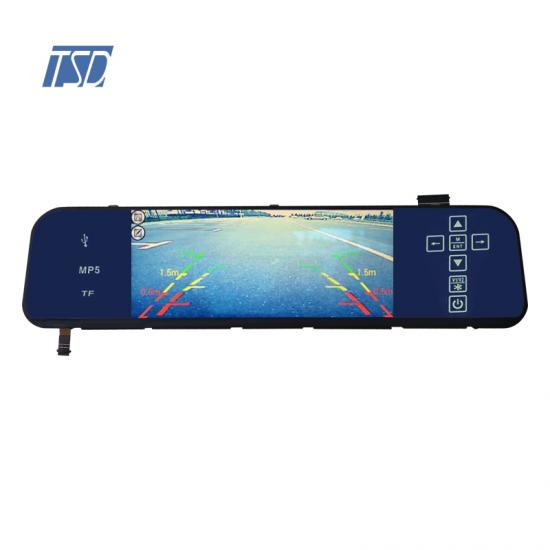

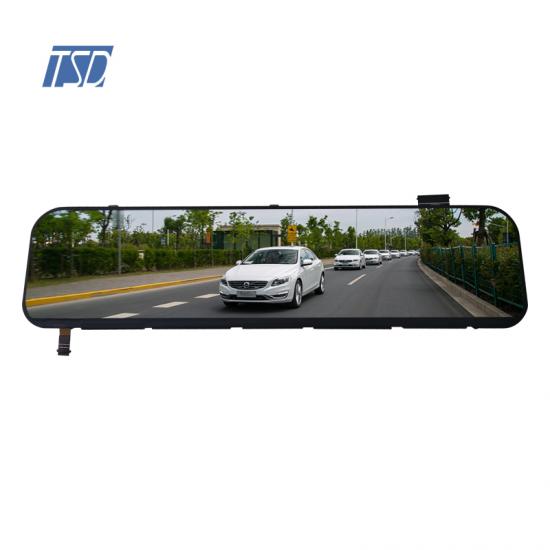

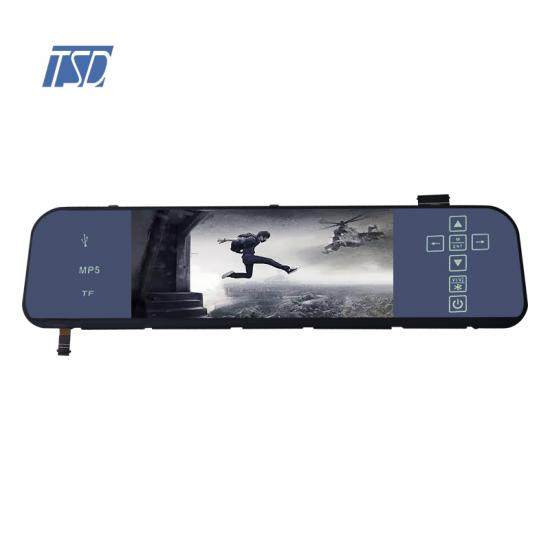

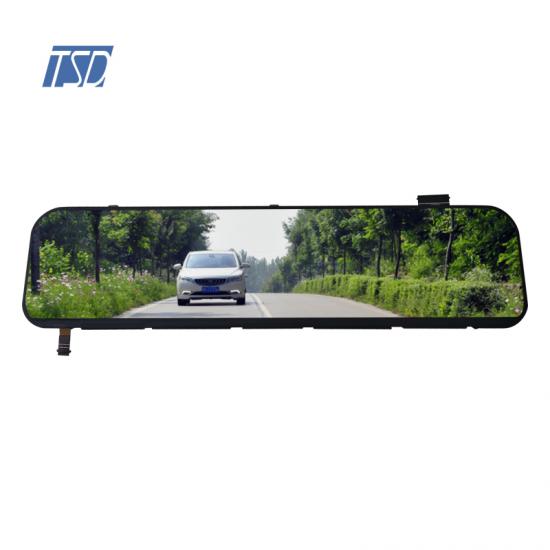

TSD 9.2 inch TFT LCD mirror with resolution of 1920*384 high brightness 3500cd/m² Car display

  • Model Name: TST092FHHH-01
  • LCD Type: 9.2 inch TFT LCD display
  • Resolution: 1920x384
  • Viewing angle: All o'clock
  • Brightness: 3500 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃

Description:

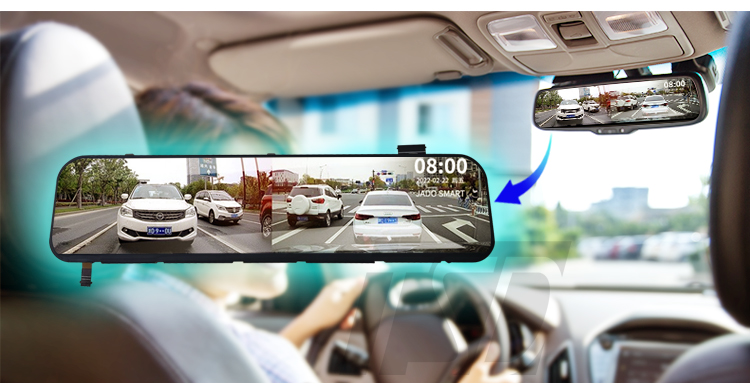

TST092FHHH-01 is automotive grade lcd display module, LCD size is 9.2 inch, resolution is 1920x384, IPS tft lcd display with full viewing angle, support 30 pins LVDS interface. Widely using for rearview mirror in car. Outline dimension of LCM is 238.1x57.85x12.56mm, active area is 229.25x45.45mm. Display luminance is 3500 cd/m2 typically. Operating temperature is -30 to +85 degree, storage temperature is -40 to +90 degree.

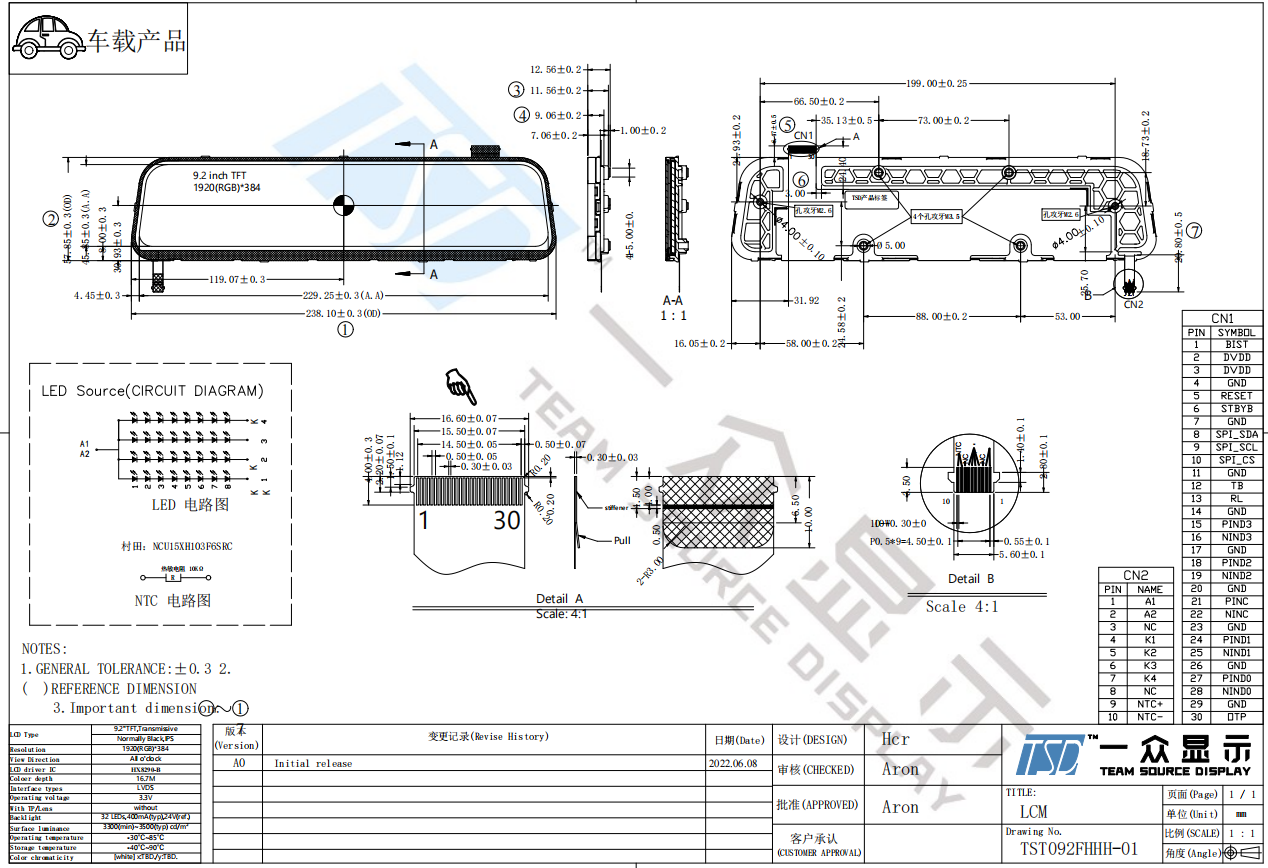

Drawing:



9.2 inch LCD


Specifications:



General Specification
Part No.  TST092FHHH-01
Outline Dimension(mm)  238.1x57.85x12.56mm
Active Area(mm) 229.25x45.45mm
Resolution(dots) 1920x384
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1920(H)xRGBx384(V)
Touch panel  without
Brightness 3500 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 9.2 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 BIST Normal operation/BIST pattern select. BIST="1": BIST mode. BIST="0": Normal operation.
2 DVDD Digital power (3.3V)
3 DVDD Digital power (3.3V)
4 GND Ground
5 RESET Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ, C=0.1µF)
6 STBYB Standby mode setting pin. active low. Timing controller, output buffer, DAC and power circuit all of when STBYB is low. Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ, C=1µF)
7 GND Ground
8 SPI_SDA/NC SPI interface/No conncetion
9 SPI_SCL/NC SPI interface/No conncetion
10 SPI_CS/NC SPI interface/No conncetion
11 GND Ground
12 TB Up/down selection
13 RL Left/right selection
14 GND Ground
15 PIND3 LVDS data Positive
16 NIND3 LVDS data Negative
17 GND Ground
18 PIND2 LVDS data positive
19 NIND2 LVDS data negative
20 GND Ground
21 PINC
LVDS clock Positive
22 NINC
LVDS clock Negative
23 GND Ground
24 PIND1
LVDS data Positive
25 NIND1
LVDS data Negative
26 GND Ground
27 PIND0 LVDS data Positive
28 NIND0 LVDS data Negative
29 GND Ground
30 OTP/NC No connection




Features:



• Display Resolution: 1920 x RGB x 384

• Wide viewing angle (U/D/L/R): Free viewing direction

• Display up to 16.7M colours

LVDS interface

• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.

• White LED backlight

• “RoHS” compliance.



9.2 inch lcd
