Description:

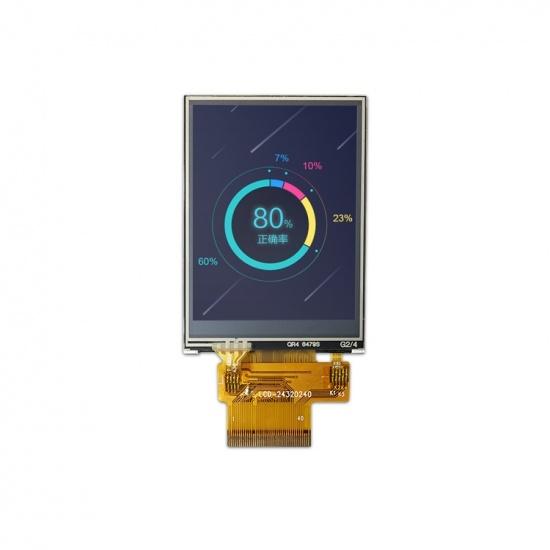

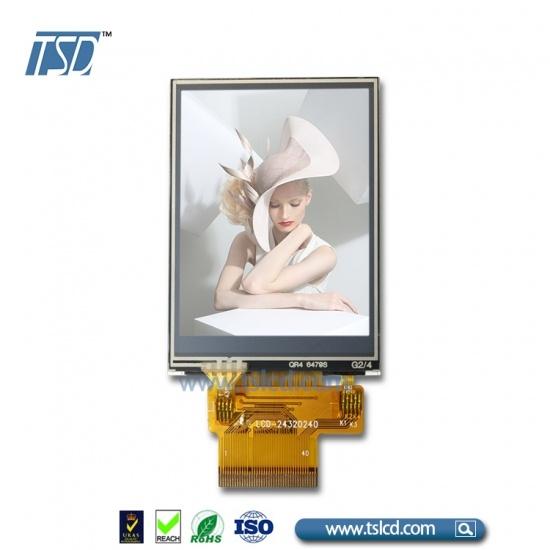

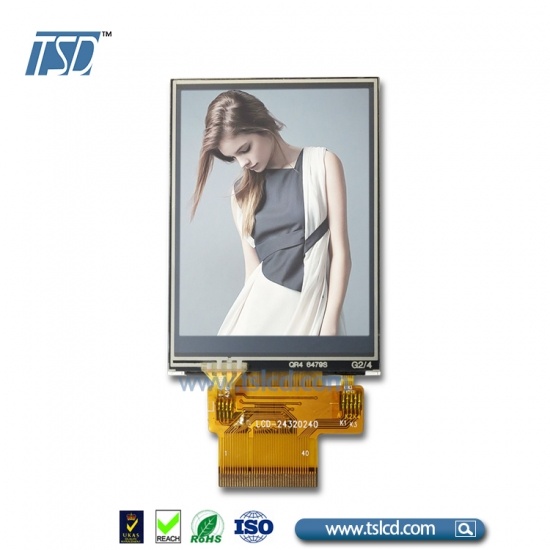

TST024QVSS-32 is 2.4 inch 240*320 resolution LCD display with MCU interface, standard brightness is 280 cd/m2, which is suitable for indoor and outdoor application. For this 2.4 inch TFT LCD module, driver IC is ST7789V, viewing direction is 12 o'clock, color depth is 65K, operating voltage is 2.8V, if you are interested in touch panel for this LCD, customized design are welcome. 2.4 inch LCD is frequently utilized in smart home appliance like cooktop and embedded systems.

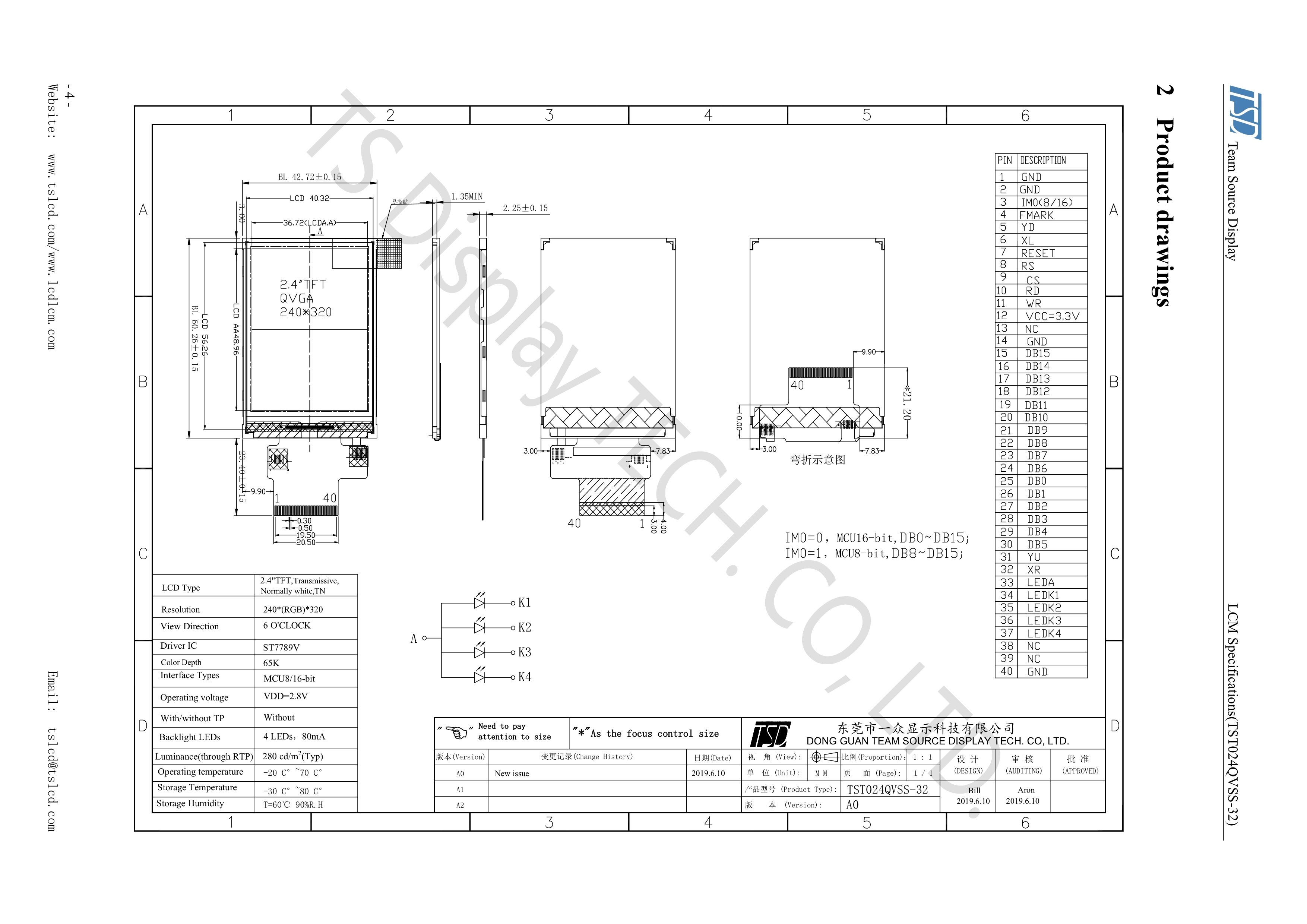

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST024QVSS-32 | |
| Outline Dimension(mm) |
42.72W) x 60.26(H) x 2.25(D)
|
|
| Active Area(mm) | 36.72 (W) x 48.96 (H) | |
| Resolution(dots) | 240 x (RGB) × 320 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) |
240 x (RGB) × 320
|
|
| Touch panel | Customizable | |
| Driver IC | ST7789V | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal white,TN, 2.4 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 6 |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU | |
| Module lifetime(Hours) | 50,000-100,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 |
GND
|
System Ground. (0V)
|
| 2 |
GND
|
System Ground. (0V)
|
| 3 |
IM0
|
IM0=0: MCU16-BIT, DB0~DB15
IM0=1: MCU8-BIT, DB8~DB15
|
| 4 |
FMARK
|
Tearing Effect output signal
|
| 5 | YD |
The touch panel Y Down pin
|
| 6 | XL |
The touch panel X Left pin
|
| 7 | RESET |
Reset input signal
|
| 8 | RS |
Data/Command Selection pin
|
| 9 | CS | Chip select signal. |
| 10 | RD |
read signal
|
| 11 | WR |
serves as a write signal
|
| 12 | VCC | Power supply +2.8V |
| 13 | NC | |
| 14 | GND |
System Ground. (0V)
|
| 15~24 | DB15~DB6 |
Data BUS
|
| 25~30 | DB0~DB5 |
Data BUS
|
| 31 | YU |
The touch panel Y Up pin
|
| 32 | XR |
The touch panel X Right pin
|
| 33 | LEDA | Backlight A Aothod input pin. |
| 34~37 | LEDK1~LEDK4 |
Backlight K Cathode input pin
|
| 38~39 | NC | |
| 40 | GND |
System Ground. (0V)
|
Applications:
For our 2.4 inch LCD display TST024QVSS-24, displays an small size and suitable resolution, making it widely used in white goods and embedded systems. No matter it's in smart home appliance, embedded systems, or measuring instruments, TSD's 2.4 inch LCD support clear and high-quality image display, offering users a great visual experience and information presentation.
Product Features:
1. 2.4 inch LCD with MCU interface, widely used for smart home products ;
2. ST7789V IC of this LCD for customers's better development;
3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.
