| Specification | |

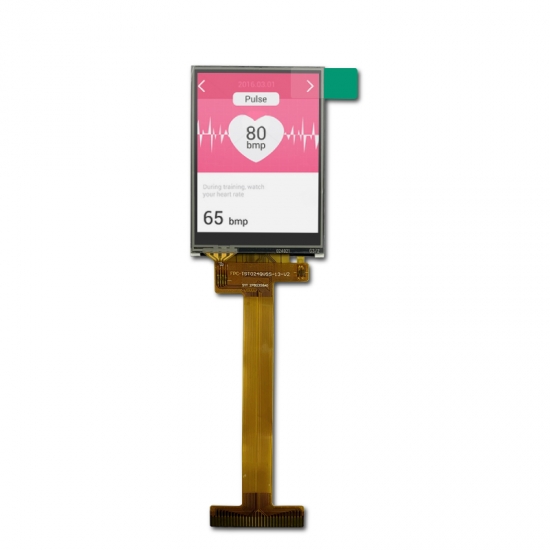

| LCD type | a-Si TFT,Transmissive,Normally white,TN |
| LCD Size | 2.4 inch |
| Resolution(WxH) | 240xRGBx320 |
| LCM(WxHxD) | 42.72(w)x60.26(H)x3.5(D) |
| Active Area(WxH) | 36.72(w)x48.96(H) |
| Dot Pitch(WxH) | 0.051(W)x0.153(H) |
|
Brand name |
TSD |
| Resolution | QVGA 240*RGB*320 |
| Viewing Direction | 6 o'clock |
| Gray Scale Inversion Direction | 12 o'clock |
| Viewing Angle | Top:55 Bottom:35;Left/Right:55 |
| Color Depth | 65K/262K |
| Pixel arrangement | RGB Vertical Stripe |
| Backlight Type | 4LEDs |
| Surface Luminance | 270 cd/m2 |
| Surface Treatment | Anti-Glare |
| Driver IC | ST7789V |
| Interface Type |
MCU 8 bit/3 line 9 bit |
| Input Voltage | 2.8V |
| With/Withour TP |
with RTP |
| Weight | 16.4g |
