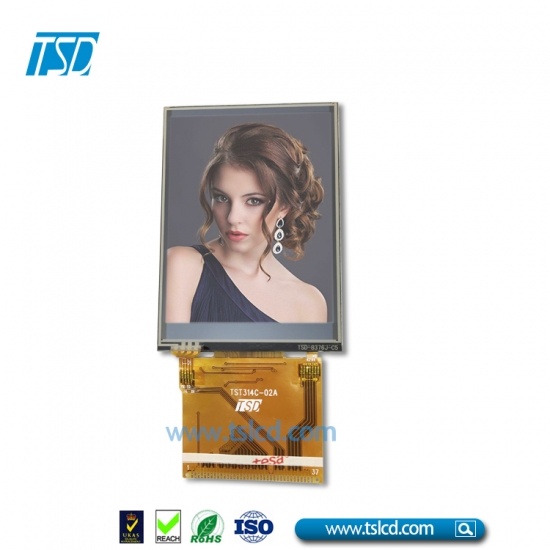

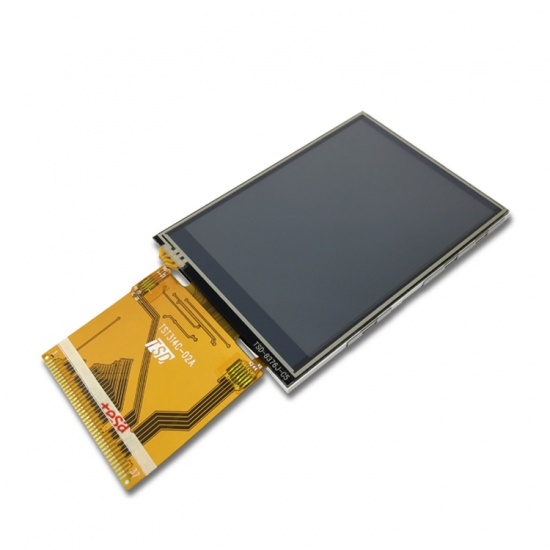

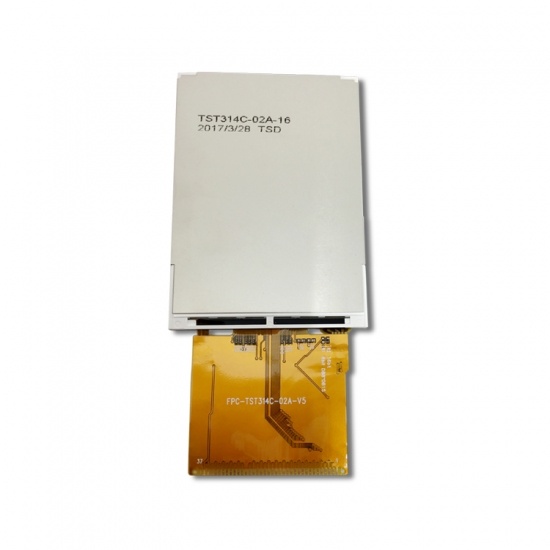

Color TFT 3.2 inch 240x320 LCD display with Resistive touch panel

Inquiry now Data sheet

Specification
LCD type	3.2 inch TFT,Transmissive
Display type	3.2 inch TFT, 262k color, normal white
Description	3.2 inch tft lcd
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	55.04x77.7x3.65
A.A.(mm)	47.87*63.84
Driver IC	ST7789V
Resolution	QVGA 240RGB320
Viewing Direction	12H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Operating Voltage	2.8v
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Weight(g)	TBD
Backlight	6 LEDs, White
Weight(g)	TBD
Interface	MCU 16 bit
Touch panel	4 wire resistive TP
Module lifetime(Hours)	50,000-100,000
