Description:

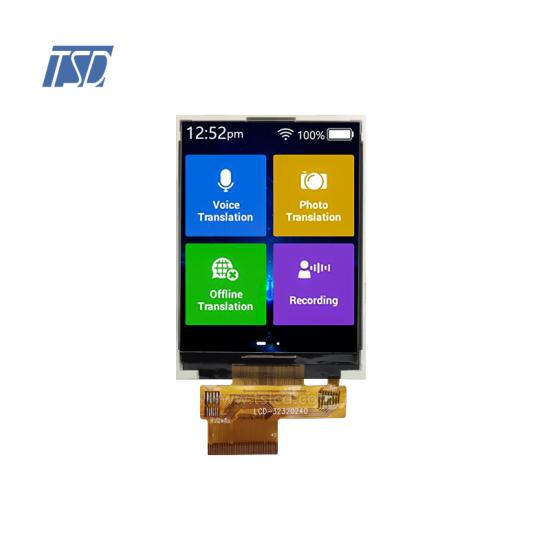

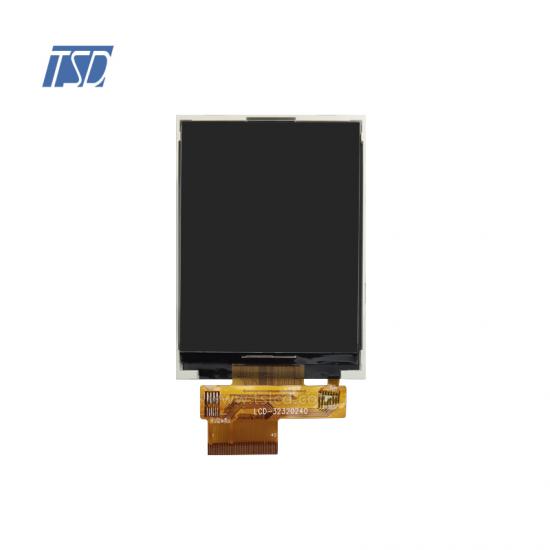

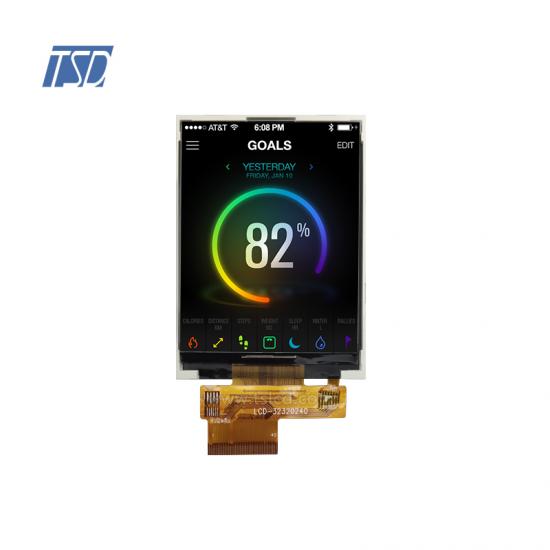

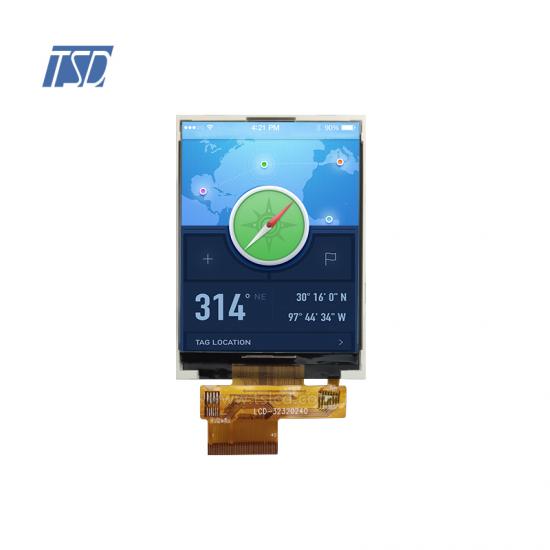

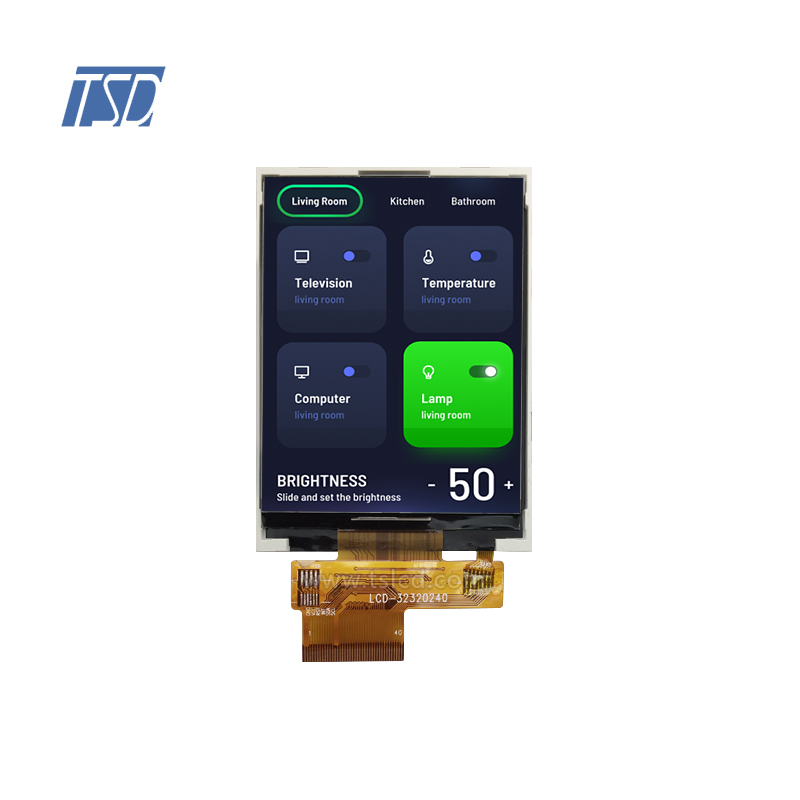

TST32QV08B is a 3.2 inch 240*320 resolution LCD display with MCU interface. With a small size looking, this LCD is popular in handheld devices and smart phone market in some areas of all world. For our standard 3.2 inch LCD, which has such features: Driver IC is ILI9341V, Viewing direction is 12 o'clock, interface is MCU, Operating voltage is 2.8~3.3v, Color depth is 65K/262K. 3.2 inch LCD found in a wide range of applications like portable electronic devices, industrial instruments and phone.

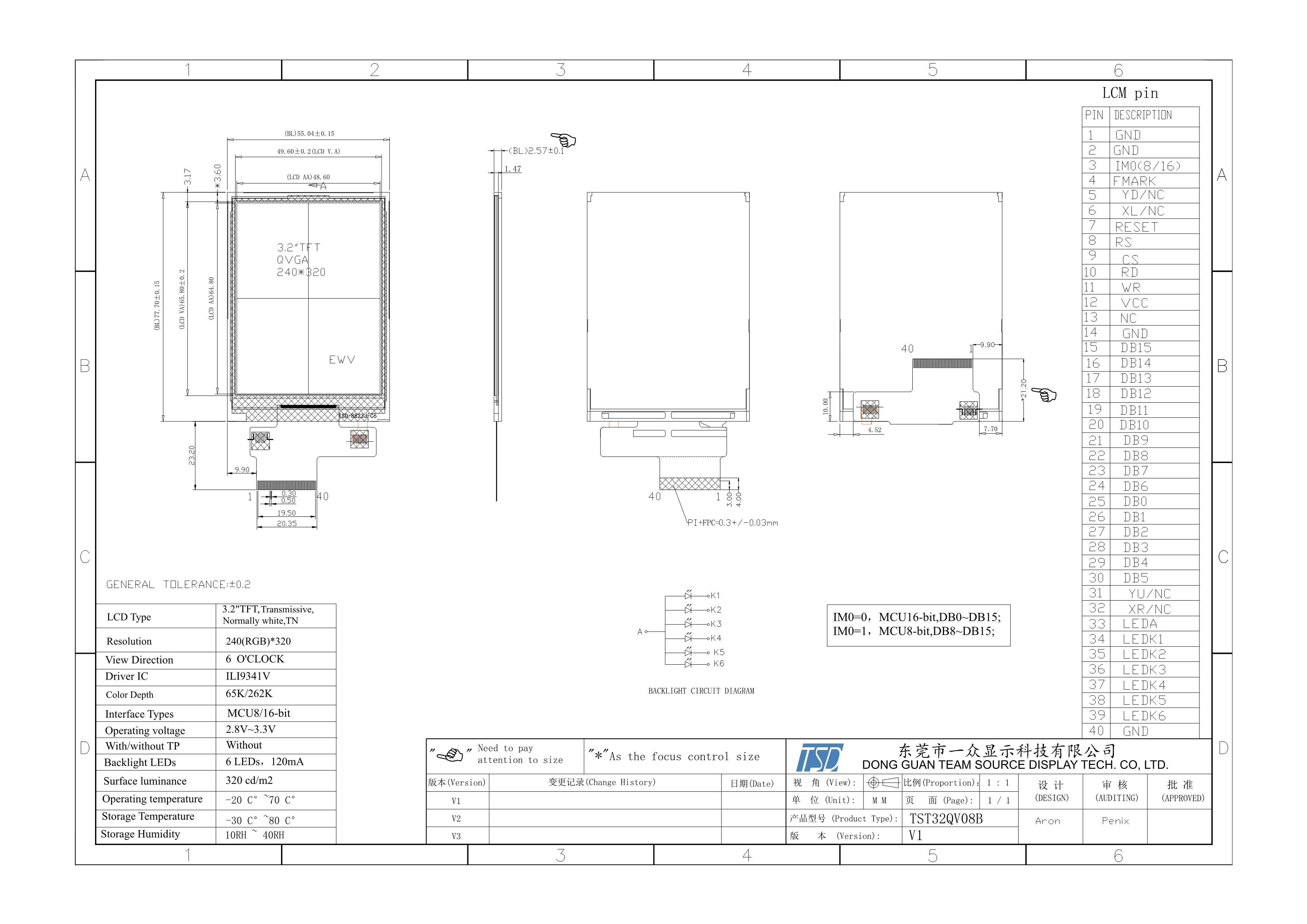

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST32QV08B | |
| Outline Dimension(mm) |
55.04W) x 77.7(H) x 3.77(D)
|
|
| Active Area(mm) |
48.6 (W) x 64.8 (H)
|
|
| Resolution(dots) | 240 x (RGB) × 320 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) |
240 x (RGB) × 320
|
|
| Touch panel | Available | |
| Driver IC |
ILI9341V
|
|
| Pixel arrangement | RGB-stripe | |
| Display mode | Normally white,TN,3.2 inch TFT | |
| Surface treatment | Anti-Glare | |
| View direction | 12H | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU | |
| Module lifetime(Hours) | 50,000-100,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 |
GND
|
System Ground. (0V)
|
| 2 |
GND
|
System Ground. (0V)
|
| 3 |
IM0
|
IM0=0: MCU16-BIT, DB0~DB15
IM0=1: MCU8-BIT, DB8~DB15
|
| 4 |
FMARK
|
Tearing Effect output signal |
| 5 |
YD
|
The touch panel Y Down pin
|
| 6 |
XL
|
The touch panel X Left pin
|
| 7 |
RESET
|
Reset input signal
|
| 8 |
RS
|
Data/Command Selection pin |
| 9 | CS |
Chip select signal.
|
| 10 | RD |
read signal
|
| 11 |
WR
|
serves as a write signal
|
| 12 |
VCC
|
Power supply +2.8V
|
| 13 |
NC
|
|
| 14 | GND | System Ground. (0V) |
| 15~24 |
DB15~DB6
|
Data BUS
|
| 25~30 |
DB0~DB5
|
Data BUS |
| 31 |
YU
|
The touch panel Y Up pin
|
| 32 |
XR
|
The touch panel X Right pin
|
|
33
|
LEDA
|
Backlight A Aothod input pin
|
| 34~39 |
LEDK1~LEDK6
|
Backlight K Cathode input pin.
|
| 40 |
GND
|
System Ground. (0V)
|
Applications:
For our 3.2 inch LCD display TST32QV08B, displays an small size and high resolution, making it widely used in portable electronic devices and embedded systems. No matter it's in smartphones, embedded systems, measuring instruments, or navigation devices, TSD's 3.2 inch LCD support clear and high-quality image display, offering users a great visual experience and information presentation.
Product Features:
1. The 3.2 inch LCD finds extensive application in portable electronic devices such as smartphones to complete these devices expressing a user-friendly interface and image presentation;
2. This 3.2 inch LCD is commonly found in embedded systems. Embedded systems like computer systems embedded in various devices;
3. If you have other design requirements like touch panel, cover glass, you are warmly welcome.
