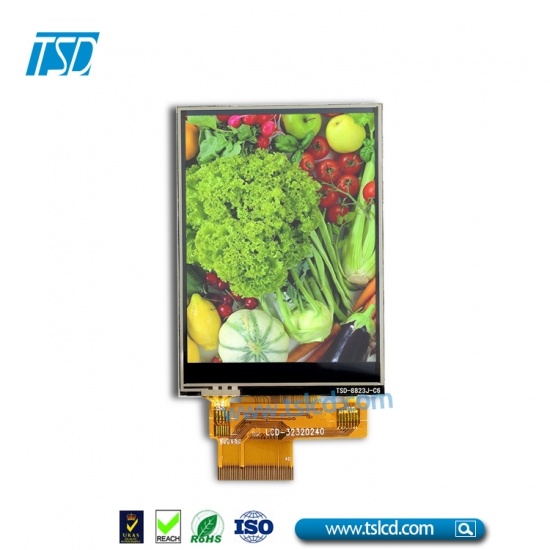

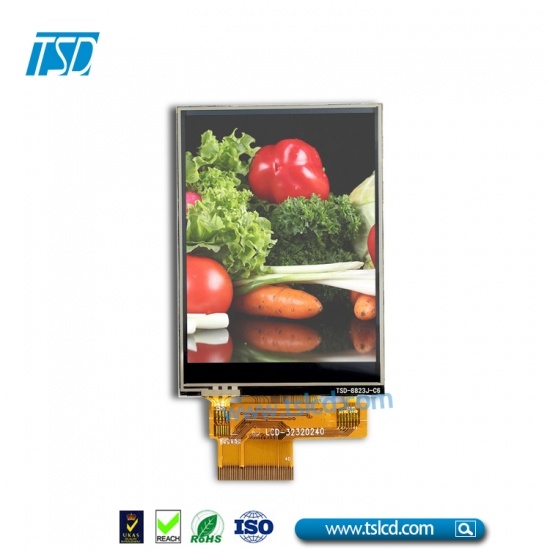

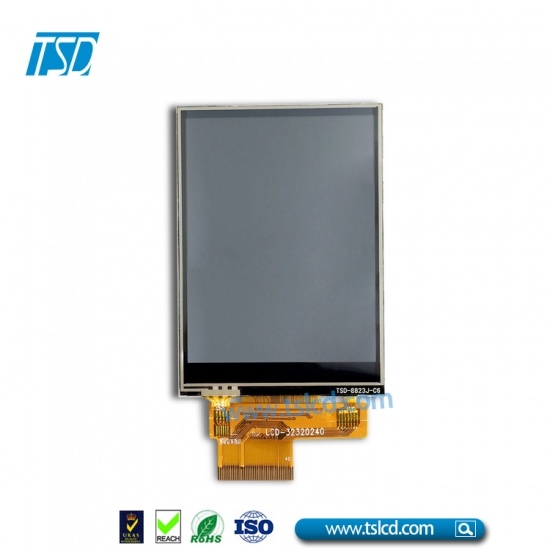

3.2inch 240x320 TFT LCD module with ZIF FPC connector with RTP


3.2inch 240x320 TFT with ZIF FPC connctor
3.2inch 240x320 TFT with ZIF FPC connctor 3.2inch 240x320 TFT with ZIF FPC connctor 3.2inch 240x320 TFT with ZIF FPC connctor

3.2inch 240x320Res TFT LCD with ZIF FPC connector with touch panel

resistance & capacitive touch panel available

MCU interface

Inquiry now Data sheet



Specification
LCD type a-Si TFT,Transmissive,Normally white,TN
LCD Size 3.2 inch
Resolution(WxH) 240xRGBx320
LCM(WxHxD) 55.04(w)x77.7(H)x3.77(D)
Active Area(WxH) 48.6(w)x64.8(H)
Dot Pitch(WxH) 0.2025(W)x0.2025(H)
Viewing Direction 12 o'clock
Resolution QVGA 240*RGB*320
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Viewing Angle Top:55 Bottom:35;Left/Right:55
Color Depth 65K/262K
Pixel arrangement RGB Vertical Stripe
Backlight Type 6LEDs
Surface Luminance 257 cd/m2
Surface Treatment Anti-Glare
Driver IC ST7789V
Interface Type MCU 8/16-bit
Input Voltage 2.8V
With/Withour TP Resistive Touch Panel
Weight 29g
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
