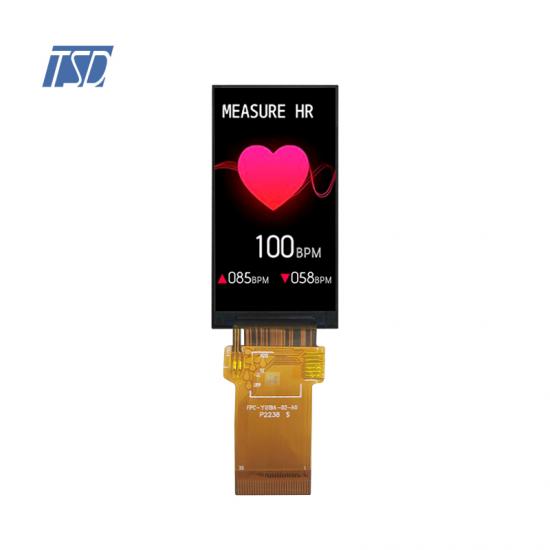

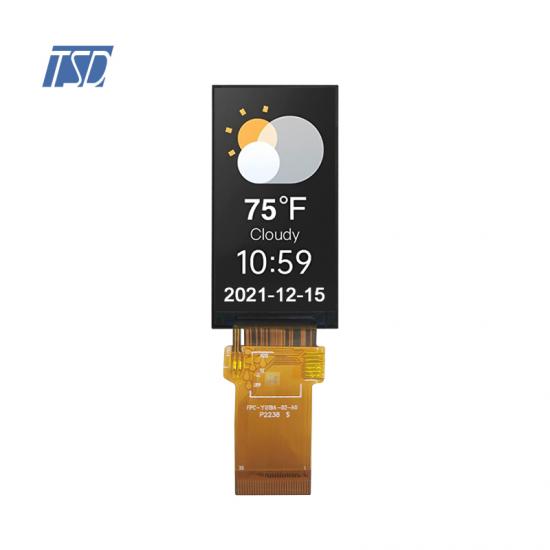

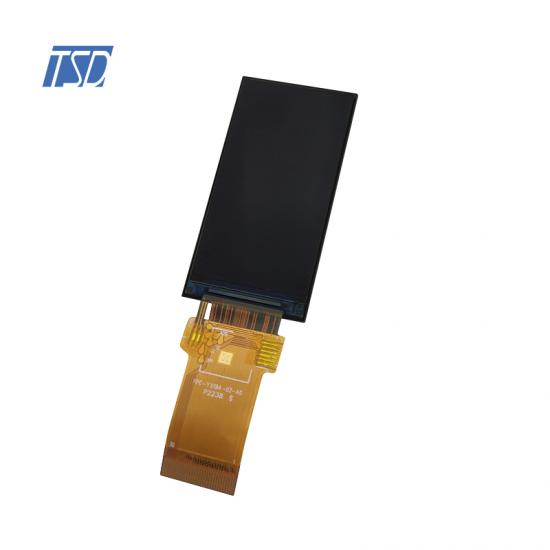

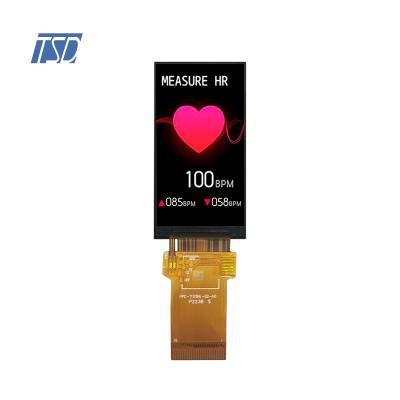

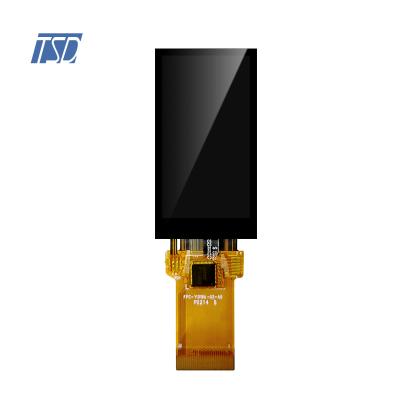

TSD 1.9 Inch TFT LCD IPS lcd panel 170 x (RGB) × 320 resolution

Part number:TST019QVBS-02B
LCD Type
: TFT,Transmissive,Normally black

Resolution: 170 x (RGB) × 320

View Direction: All o’clock

LCD driver IC: ST7789V2

Interface types: MCU8-bit

Operating voltage: 2.8

With TP/Lens: Without

Backlight: 4 LEDs/60mA

Surface luminance: 350(typ)

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:



TST019QVBS-02B is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 22.70 (W) x 42.72 (H) mm diagonally measured active area with 170 x (RGB) × 320  resolutions.

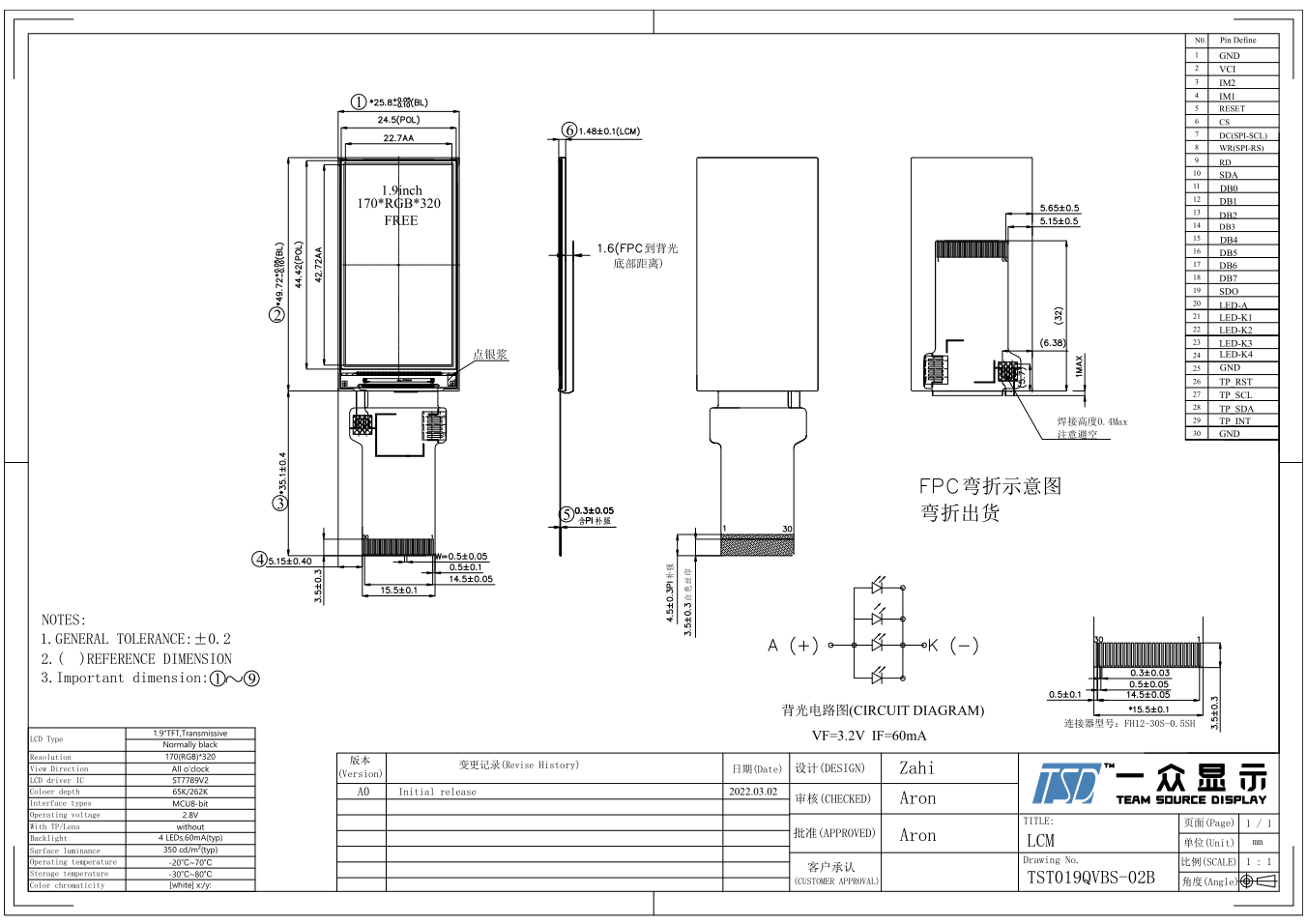

Drawing:

Specifications:



General Specification

Part No.

TST019QVBS-02B

Outline Dimension(mm)

25.8(W) x 49.72(H) x 1.48(D)

Active Area(mm)

22.70 (W) x 42.72 (H)

Resolution(dots)

170 x (RGB) × 320

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

350(typ)

Touch panel

Without

Pixel arrangement

MCU8-bit

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MCU 8/16-bit

Ic

ST7789V2







Pins Description

Pin No.

Symbol

Description

1

GND

System Ground.

2

VCI

Power supply +2.8V

3

IM2

INterface select : IM1=0,IM2=0,MCU8-bit; IM1=1, IM2=1, 4-line SPI;

4

IM1

RESET

Reset input signal

6

CS

Chip select signal

7

DC/(SPI_SCL)

Data/Command selection pin(MCU); Serial clock input( spi )

8

WR

Write signal

9

RD

Read signal

10

SDA

Serial data input

11~18

DB0-DB7

MCU8-bit Data BUS

19

SDO

Serial data output

20

LED-A

Backlight A Anode input pin

21~24

LED-K1~K4

Backlight K Cathode input pin

25

GND

System Ground

26

NC

No connect

27

NC

No connect

28

NC

No connect

29

NC

No connect

30

NC

No connect



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
