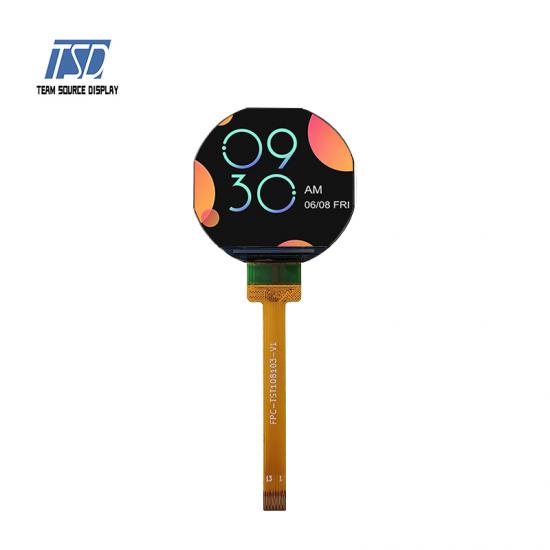

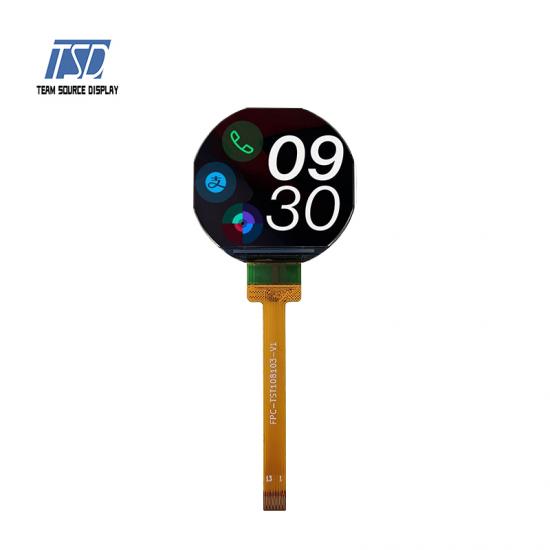

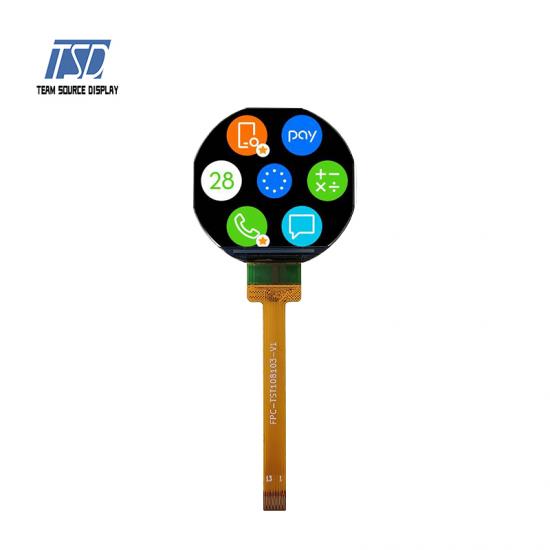

TSD round 1.08 Inch TFT LCD for smart watch 1.08"TFT,Transmissive

Model Name: TST108103B

LCD Type: 1.08"TFT,Transmissive

Resolution: 240(RGB)*210

Viewing angle: All o'clok

Color depth: 65K

Driver IC: ST7789

Interface: SPI

Touch Screen: Without

Operating Temperature: -20℃~60℃

Storage Temperature: -30℃~80℃

General Description

This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.08” contains 240(RGB)X210 dots and can display up to 65k colors.

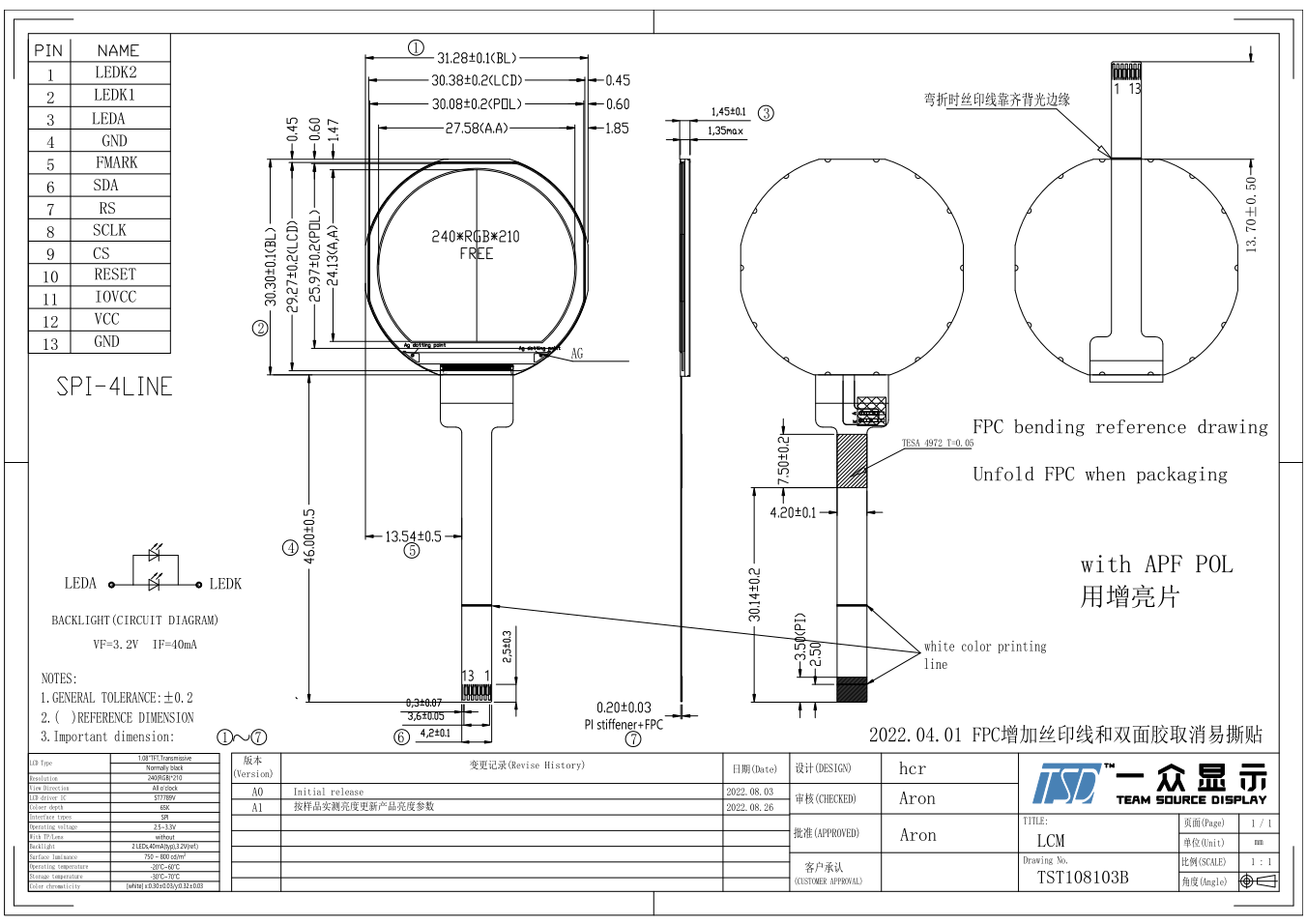

Drawing:



Specifications:



General Specification

Part No.

TST108103

Outline Dimension(mm)

31.28(H) ×30.3(V)×1.45(T)

Active Area(mm)

27.58 (H)×24.13(V)

Resolution(dots)

240RGB x 210

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Number of Pixel(pixels)

320RGB(H)xRGBx480V)

Touch panel

Without

Driver IC

ST7789V2

Pixel arrangement

RGB-stripe

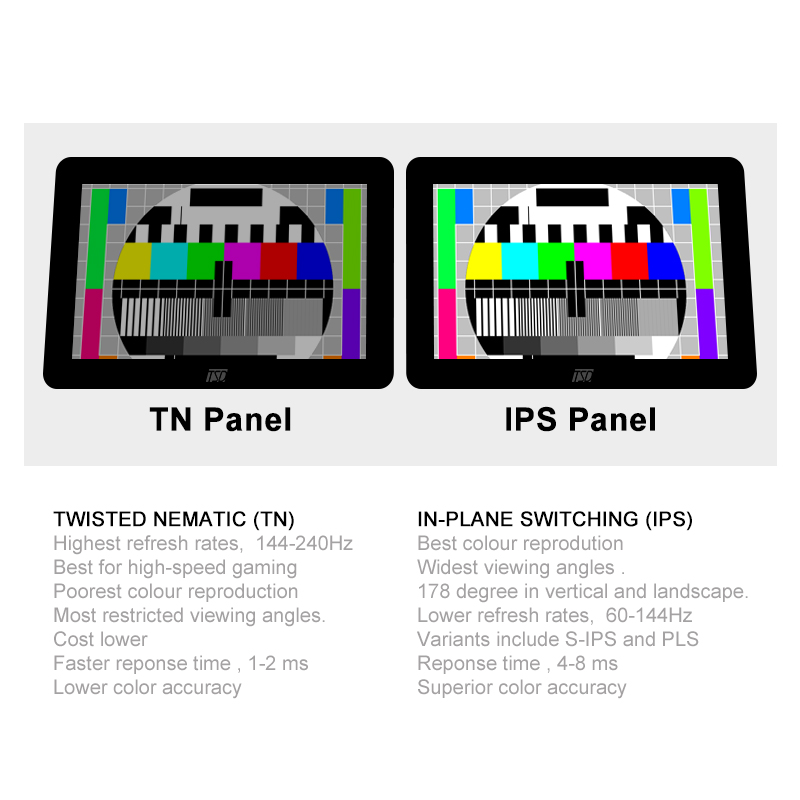

Display mode

IPS / Transmissive / Normally Black

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)4-SPI

Interface

4-SPI

Module lifetime(Hours)

50,000-100,000



Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
