TSD IPS 1.08 inch 240x210 TFT lcd display module with high brightness



  • Model Name: TST108103B
  • LCD Type: 1.08 inch IPS TFT display
  • Resolution: 240x210
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Driver IC: ST7789V
  • Interface: SPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:

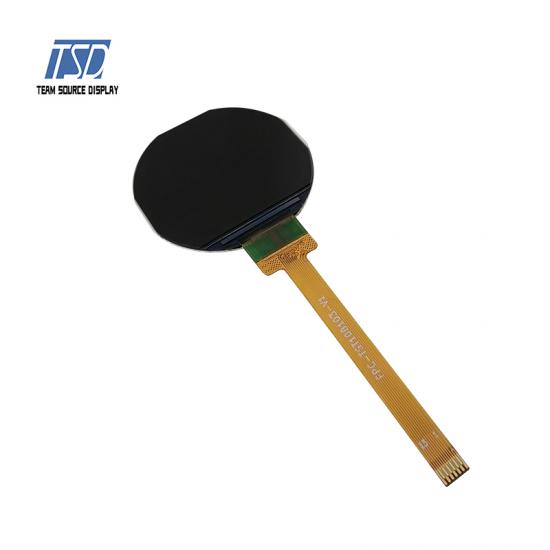

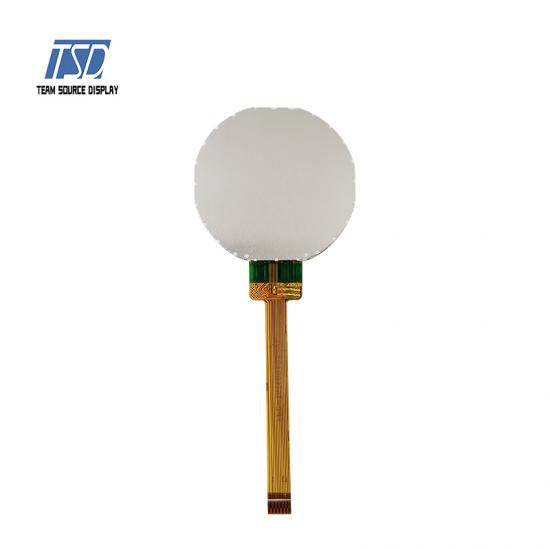

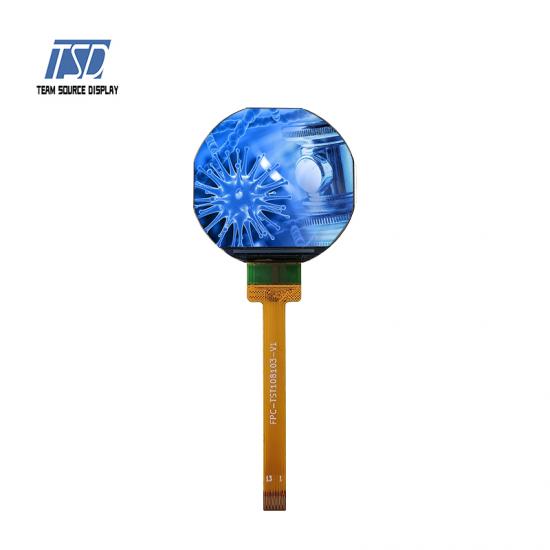

TST108103B is round tft display, it's a very small size 1.08 inch, with 240x210 resolution.  This 1.08 inch lcd is with long FPC design, 13 pins SPI interface. It's with 750~800 cd/m2 high brightness, which is good for outdoor application. LCD type is IPS TFT, normally black. From all vieiwng angle, it's with very good performance. Operating temperature is -20 ~ +70°C, storage temperature is -30 ~ +80°C.

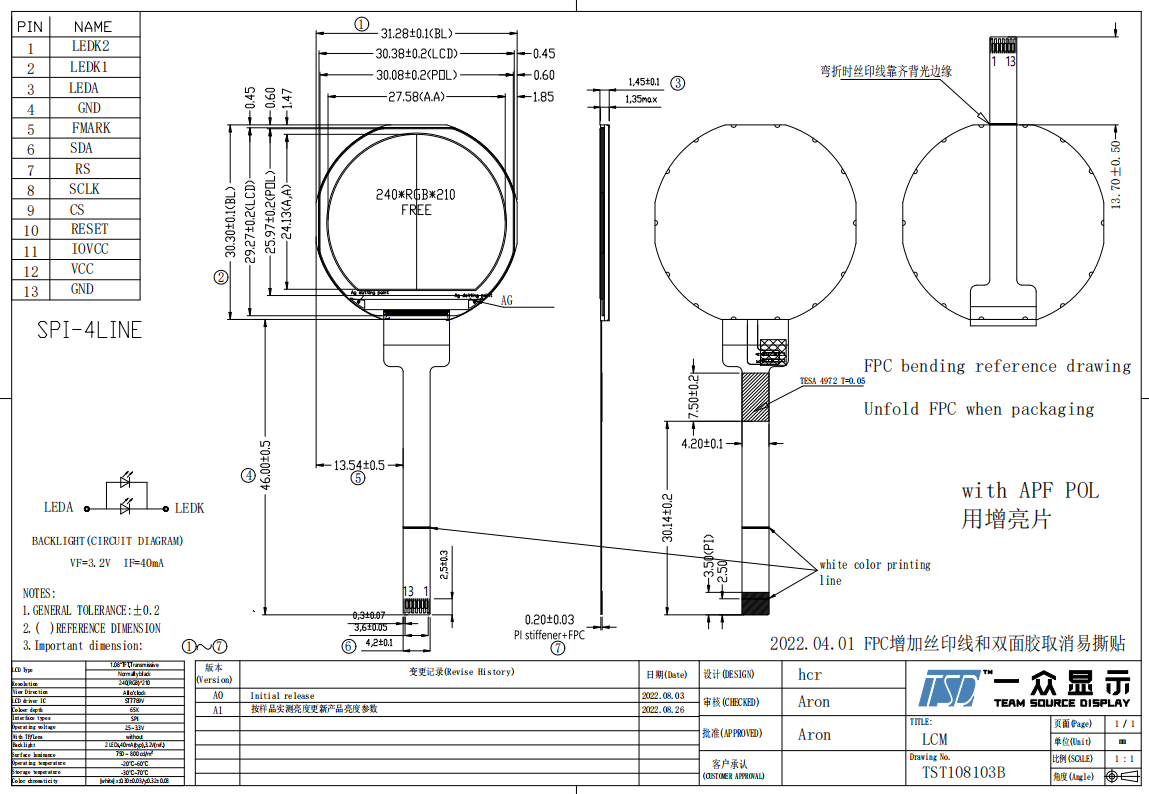

Drawing:




Specifications:



General Specification
Part No.  TST108103B
Outline Dimension(mm)

31.28(W)x30.3(H)x1.45(D)

Active Area(mm) 27.58(W) x 24.13(H)
Resolution(dots) 240x (RGB) × 210
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240RGB(H)xRGBx210(V)
Touch panel  without
Driver IC ST7789V
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 1.08 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDK2 LED Cathode
2 LEDK1 LED Cathode
3 LEDA LED Anode
4 GND Power Ground
5 FMARK Tearing effect signal is used to synchronize MCU to frame memory writing.
6 SDA SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.
7 RS Display data/command selection pin in 4-line serial interface.
8 SCLK This pin is used to be serial interface clock.
9 CS Chip selection pin; Low enable, High disable.
10 RESET This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
11 IOVCC Power Supply for I/O system. IOVCC=1.65V~3.3V
12 VCC Power Supply for Analog, VCC=2.5V~3.3V.
13 GND Power Ground






Features:



LCD circular LCD screens are divided into large and small sizes. Small-sized circular screens are more widely used, such as smart wearables, smart watches, smart wall clocks, electric vehicle meters, car display meters, smart home appliances, smart handheld devices, etc.



Except for this 1.08 inch round tft display, TSD also have the other circle lcd display series, such as 1.3 inch, 2.1 inch, 2.8 inch, 3 inch, 3.4 inch, 4.21 inch, 5 inch etc. Standard and customized touch screen are all available. Contact TSD for more information freely.
