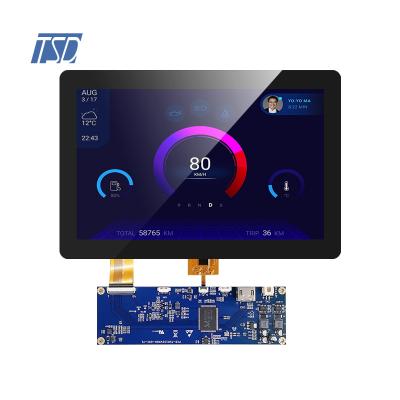

TSD 7 inch 1024x600 resolution TFT LCD with HDMI board with backlight brightness adjustment function

  • Model Name: TSM070WVBH-140
  • LCD Type: 7 inch HDMI TFT display
  • Resolution: 1024x600
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: HX8282-A&HX8696-A
  • Interface: HDMI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃







Description:



TSM070WSBH-140 is 7 inch 1024x480 resolution IPS HDMI TFT display, it's IPS display with all o'clock viewing direction, surface brightness is around 450 nits.It's no need for an external power supply for the screen, HDMI port is to power on display, white USB port is to power on touch screen. This 7 inch LCD is with LED driver and support backlight adjustment also. It is very convenient to adjust the backlight by a potentiometer on the back of the display. Our standard sizes include 3.97 inch 480x800, 4.3 inch 800x480, 7.0 inch 1024x600, 10.1 inch 1280x800, 10.3 inch, 12.3 inch 1920x720 resolution display, customized designs are all welcome.




Drawing:




Specifications:



General Specification
Part No.  TSM070WVBH-140
Outline Dimension(mm)

164.9(W)x100(H)x6.65(D)

Active Area(mm) 153.84(W) x 85.63(H)
Resolution(dots) 1024x (RGB) × 600
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 1024x (RGB) × 600
Touch panel  without
Driver IC HX8282-A&HX8696-A
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 7 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface HDMI
Module lifetime(Hours) 30,000-50,000





Pins Description for HDMI Type A (CN2)
Pin No.  Symbol Description
1 TMDS DATA2+ HDMI data lane2 positive input
2 GND Power ground
3 TMDS DATA2- HDMI data lane2 negative input
4 TMDS DATA1+ HDMI data lane1 positive input
5 GND Power ground
6 TMDS DATA1- HDMI data lane1 negative input
7 TMDS DATA0+ HDMI data lane0 positive input
8 GND Power ground
9 TMDS DATA0- HDMI data lane0 negative input
10 TMDS_CLK+ HDMI clock positive input
11 GND Power Ground
12 TMDS_CLK- HDMI clock negative input
13 CEC No connect
14 NC No connect
15 DDC_SCL Display Data Channel, clock input
16 DDC_SDA Display Data Channel, data input/output
17 GND Power ground
18 +5V Power supply +5V
19 H-PLUG DETECT Hotplug pin



CTP interface Description  (CN3)
Pin No.  Symbol Description
1 USB+5V USB power supply +5V
2 Data- USB data negative
3 Data+ USB data positive
4 NC No connect
5 GND Power ground



DC Power Description  (CN1)
Pin No.  Symbol Description
1 DC+12V Power supply DC +12V
2 GND Ground



Backlight control interface  (CN4)
Pin No.  Symbol Description
1 NC No connect
2 BL_EN Backlight enable input. High(>1.6V): On; Low:(<0.8V) Off
3 BL_PWM Backlight PWM dimming control input. 20KHz≤fDIM≤30KHz
4 GND Ground
5 GND Ground




Features:



1. High-definition transmission: The HDMI interface can transmit high-definition video and audio signals, supporting 1080p and 4K resolution, providing clearer and more realistic image and audio effects.

2. Single-wire transmission: The HDMI interface only requires one cable to transmit video and audio signals, which is simple and convenient.

3. Strong compatibility: HDMI interface is widely used in various devices, such as TVs, monitors, projectors, game consoles, computers, etc., and has high compatibility.

4. Supports multiple signals: The HDMI interface supports multiple signals, such as 3D, ARC, CEC, etc., which can realize more functions.
