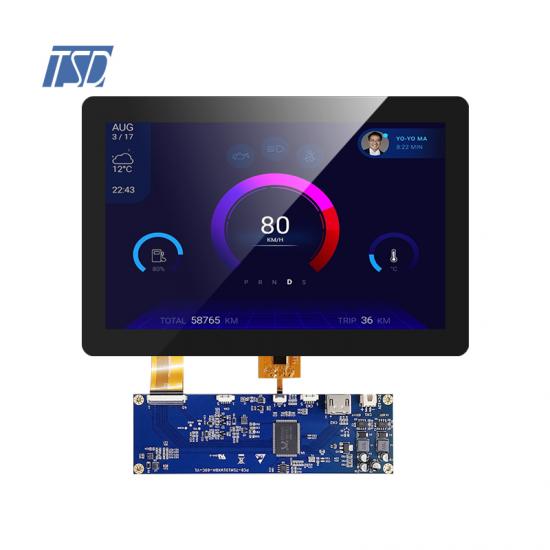

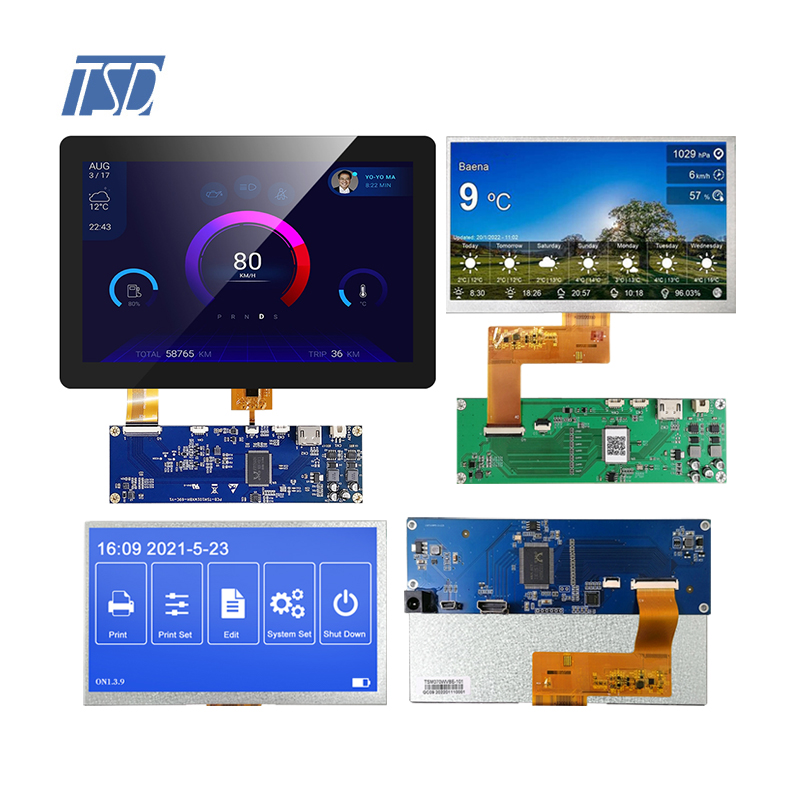

TSD 1280x800 10.1inch IPS TFT Touch LCD with HDMI/USB for Raspberry Pi

  • Model Name: TSM101WXBH-69C
  • LCD Type: 10.1 inch HDMI TFT display
  • Resolution: 1280x800
  • Viewing angle: All o'clock
  • Brightness: 800 cd/m2
  • Driver IC: HX8861
  • Interface: HDMI
  • Touch Screen: with Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



TSM101WXBH-69C is 10.1 inch high resolution IPS TFT display 1280x800 with HDMI and USB interface, it's IPS glass with free viewing angle. LCD driver IC is HX8861, power supply is 12V/1A. This 10.1 inch display is with capacitive touch panel, touch controller IC is Goodix GT928, backlight design is with 36pcs LEDs, integrated with LED driver, available to make the adjustment of brightness freely. It's 800 cd/m2 high brightness which is very suitable for outdoor application.



The lcd display has now become a part of daily office and entertainment consoles. It is a window for constant interaction for human machine interface. With the development of display technology, the machine interaction experience has been elevated to a new level. This HDMI interface types are very convenient for inital development. Generally, you can plug them in and use them directly without conversion, making them easy and fast to use.

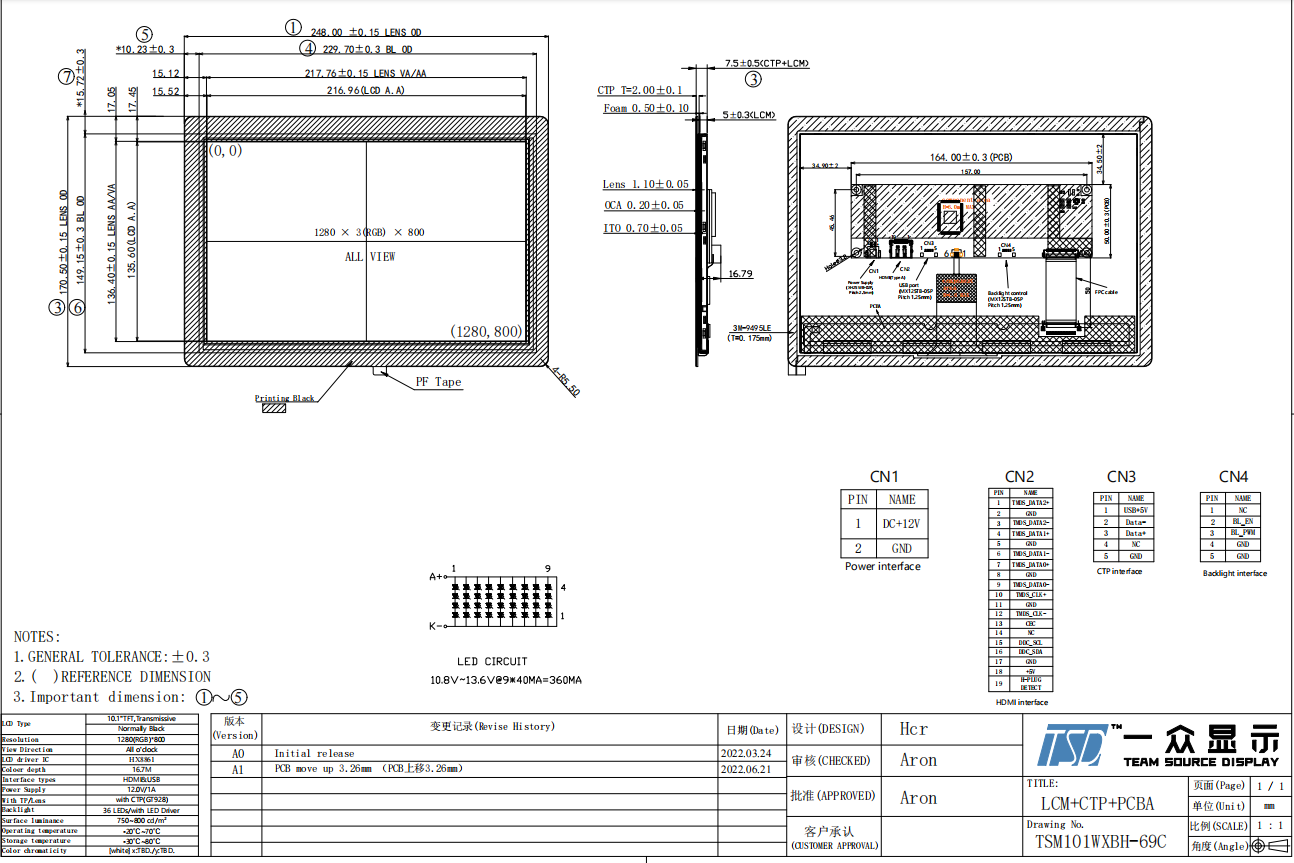

Drawing:






Specifications:



General Specification
Part No.  TSM101WXBH-69C
Outline Dimension(mm)

248(W)x170.5(H)x7.5(D)

Active Area(mm) 216.96(W) x 135.6(H)
Resolution(dots) 1280x (RGB) × 800
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 1280RGB(H)xRGBx800(V)
Touch panel  CTP
Driver IC EK9716BD&EK73002ACGB
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 10.1 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface HDMI
Module lifetime(Hours) 30,000-50,000





Pins Description for HDMI Type A (CN2)
Pin No.  Symbol Description
1 TMDS DATA2+ HDMI data lane2 positive input
2 GND Power ground
3 TMDS DATA2- HDMI data lane2 negative input
4 TMDS DATA1+ HDMI data lane1 positive input
5 GND Power ground
6 TMDS DATA1- HDMI data lane1 negative input
7 TMDS DATA0+ HDMI data lane0 positive input
8 GND Power ground
9 TMDS DATA0- HDMI data lane0 negative input
10 TMDS_CLK+ HDMI clock positive input
11 GND Power Ground
12 TMDS_CLK- HDMI clock negative input
13 CEC No connect
14 NC No connect
15 DDC_SCL Display Data Channel, clock input
16 DDC_SDA Display Data Channel, data input/output
17 GND Power ground
18 +5V Power supply +5V
19 H-PLUG DETECT Hotplug pin



CTP interface Description  (CN3)
Pin No.  Symbol Description
1 USB+5V USB power supply +5V
2 Data- USB data negative
3 Data+ USB data positive
4 NC No connect
5 GND Power ground



DC Power Description  (CN1)
Pin No.  Symbol Description
1 DC+12V Power supply DC +12V
2 GND Ground



Backlight control interface  (CN4)
Pin No.  Symbol Description
1 NC No connect
2 BL_EN Backlight enable input. High(>1.6V): On; Low:(<0.8V) Off
3 BL_PWM Backlight PWM dimming control input. 20KHz≤fDIM≤30KHz
4 GND Ground
5 GND Ground




Features:



· Built-in LED backlight driver

· HDMI & USB Input

· 1280x800 Resolution, 16x9 Aspect Ratio

· Solid Capacitors for Improved Durability

· High Performance Image and Video Signal Processor

· Auto Power-On upon signal detection

· Mirror and Vertical Image Flip

· Function to Disable Front Button(s) and On Screen Text

· Supports 12V DC

· Full viewing angle

· Standard & customized touch screen combined

· 19-Pin for HDMI input

· 12 Months/1 Year Warranty

· RoHs, Reach, ISO13485, IATF16949 Certification
