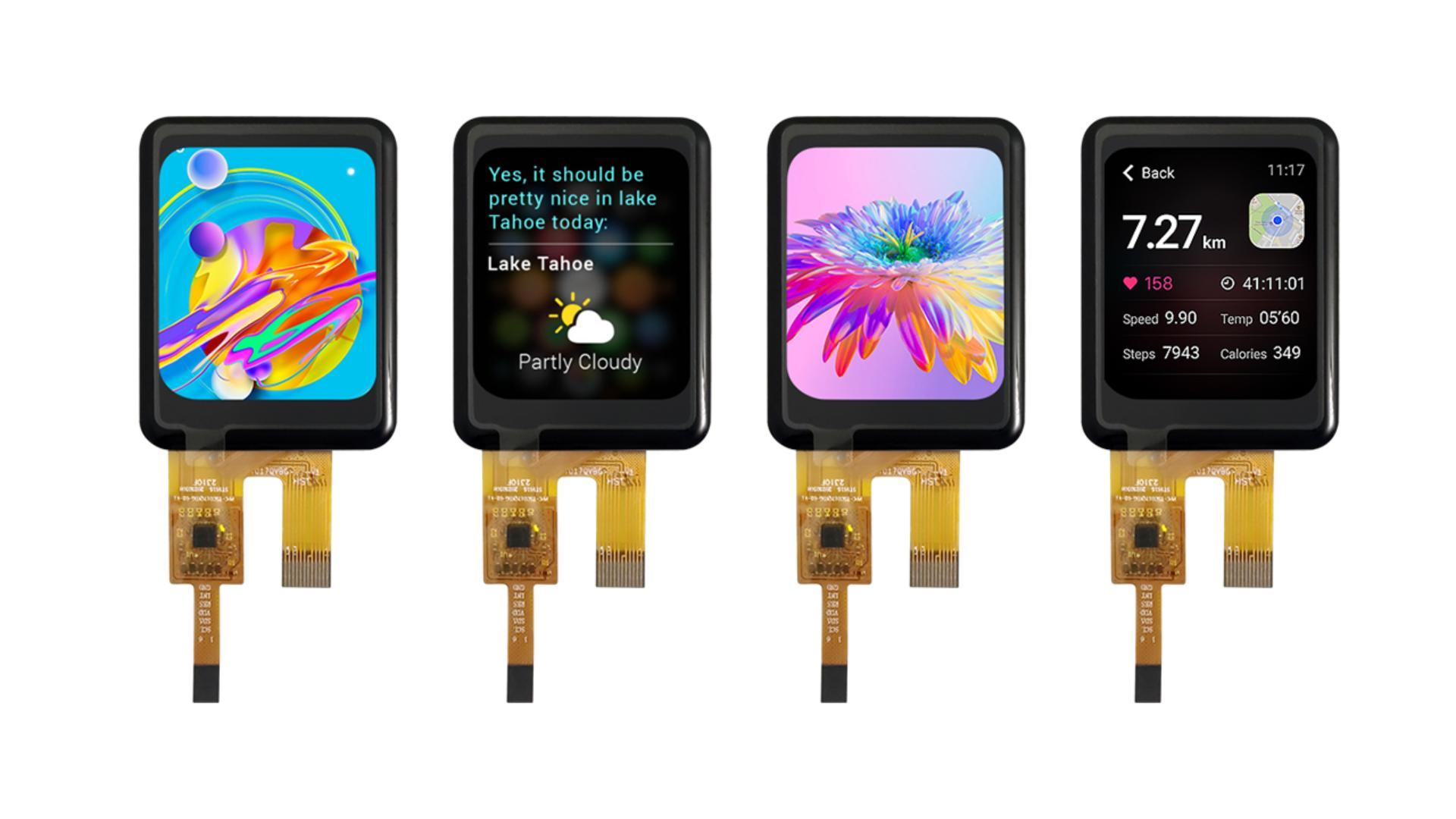

TSD 1.69 inch 240x280 TFT lcd display module

  • Model Name: TST017QVBG-05
  • LCD Type: 1.69 inch TFT LCD display
  • Resolution: 240x280
  • Viewing angle: All o'clock
  • Brightness: 900 cd/m2
  • Driver IC: ST7796S
  • Interface: 4 wire SPI
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST017QVBG-05 is a 1.69 inch square tft lcd module in 240x280 resolution, it is 4 wire SPI in 31 pins, and could be customed for other pinmap. Brightness is 900 nits. Backlight current is 40mA and backlight voltage is 3.0V, with 2 backlight LEDs. This 1.69 inch TFT LCD module is designed with ST7796S, viewing direction is all o'clock, color depth is 65K, white backlight and transmissive type. It is suitable for indoor application, such as smart watch, thermostat control display, hybrid recorders, temperature measurement device etc.


Drawing:




Specifications:



General Specification
Part No.  TST017QVBG-05
Outline Dimension(mm)    30.07x37.43x1.88
Active Area(mm) 27.97x32.63
Resolution(dots) 240x280
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 240(H)xRGBx280(V)
Touch panel  w/o CTP
Driver IC ST7789
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.69 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-40,000








Applications:



This small square lcd display is suitable for thermostat control display, hybrid recorders, temperature measurement device.




Product Features:



TST017QVBG-05 is a standard TFT display module, This model is 1.69 inch diagonally resolution in 240 horizontal by 280 vertical pixel array). Each pixel is divided into Red, Green, Blue dots and can display 65K colors. Regarding backlight, brightness is 900 nit and 2 LEDs, current is 40mA  and voltage 3.0V. Contrast ratio is 1000:1.

Pins Description
Pin No.  Symbol
1 GND
2 LEDK
3 LEDA
4 VCC
5 GND
6 GND
7 RS
8 CS
9 SCL
10 SDA
11 RST
12 GND
