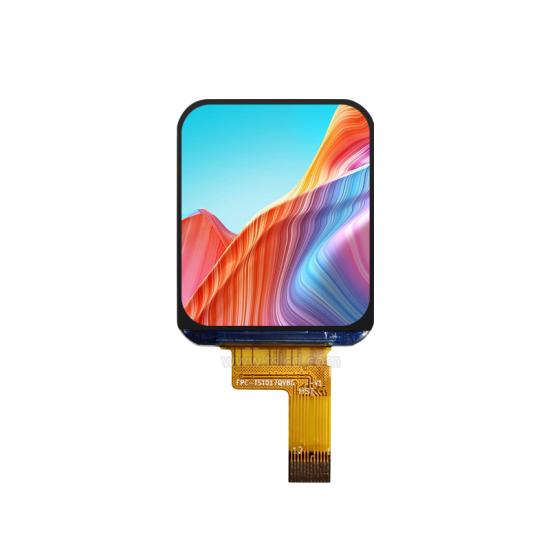

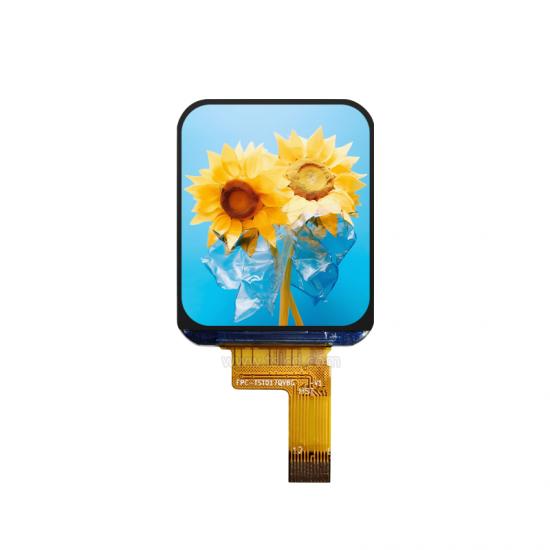

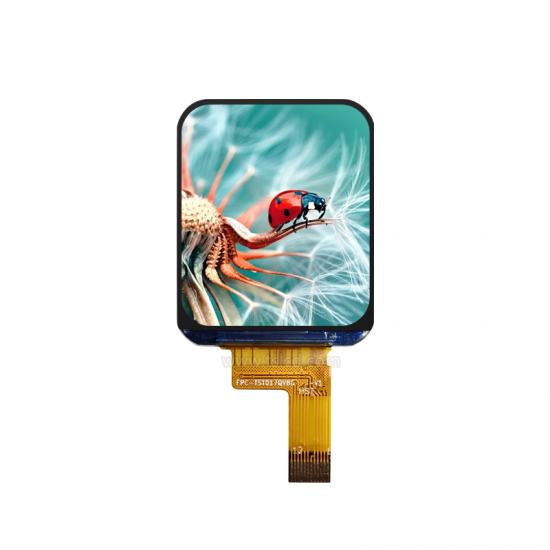

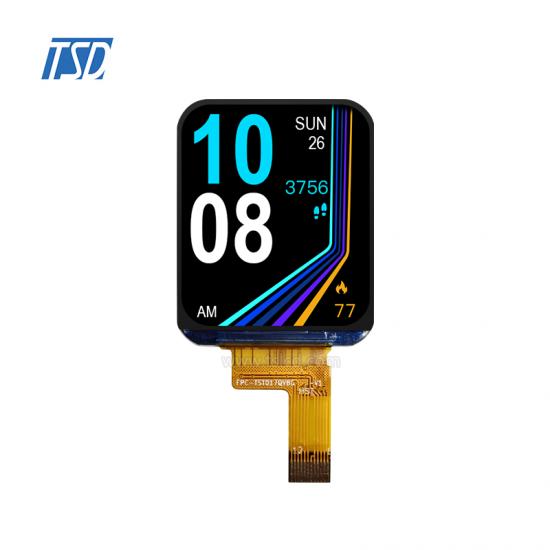

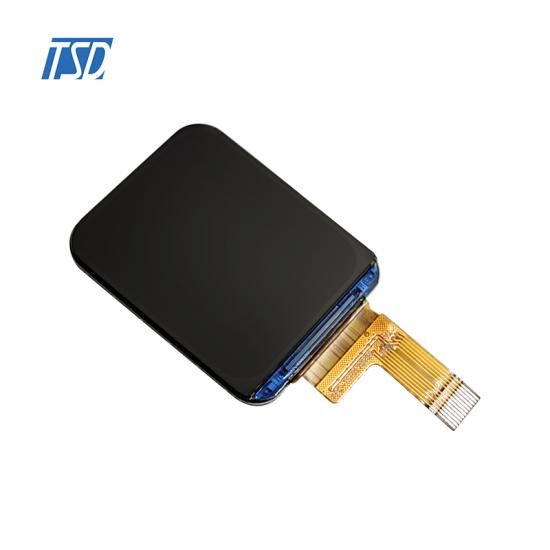

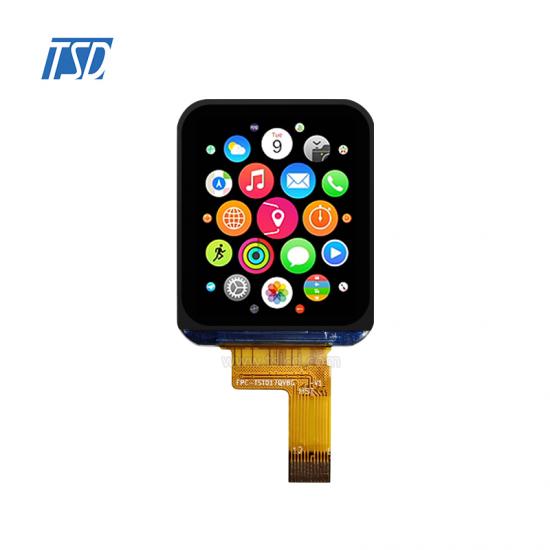

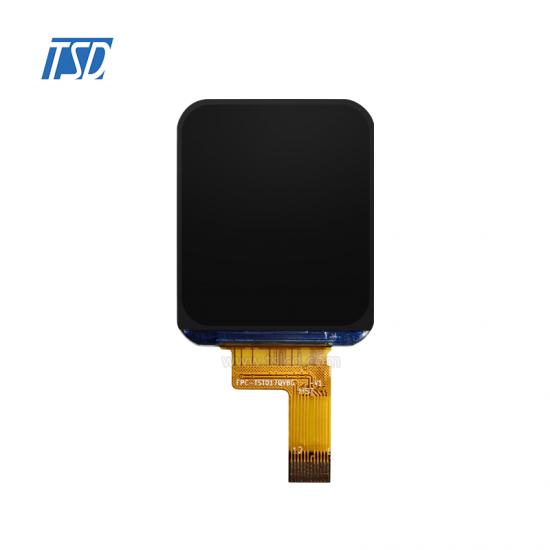

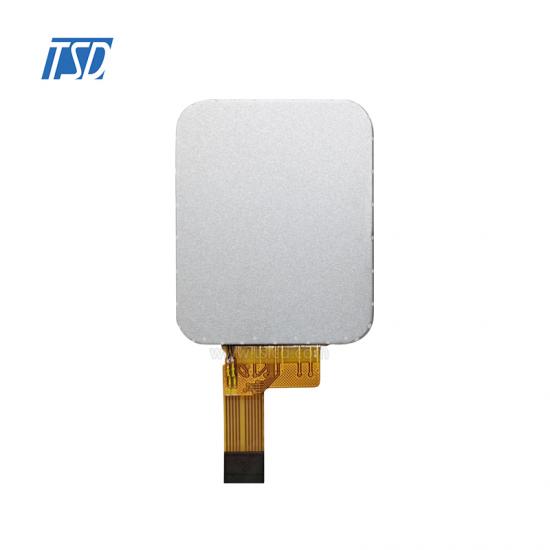

TSD 1.69 inch small size tft lcd panel 240(RGB)*280 Resolution ST7789V LCD Driver IC

Part number: TST017QVBG-05

Resolution: 240(RGB)*280

View Direction: All o’clock

Active area: 32*27

LCM: 34*30

Backlight:  LED

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

TST017QVBG-05 is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 30*27 and the native resolution is 240*280 feathers of this product are listed in the following table

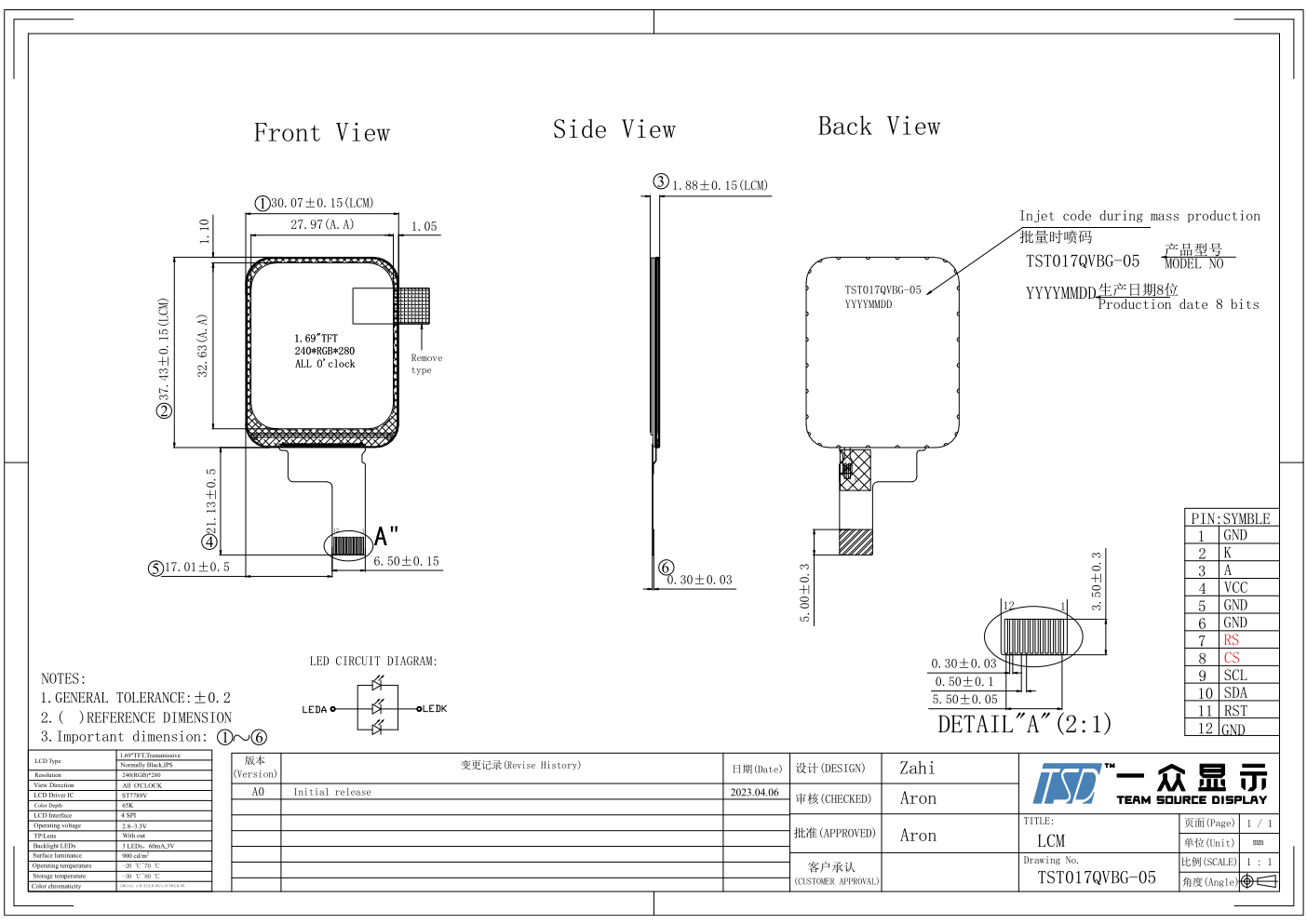

Drawing:



Specification

General Specification

Part No.

TST017QVBG-05

Display Size(Diagonal)

1.7 inch

LCD type

TFT,Transflective,Normally white

Resolution

240*320

View Direction

ALL o’clock

Module Outline

37*30

Active Area

32*27

Viewing Area

ALL o’clock

Backlight

3 LEDs 60mA,3V

Driver IC

ST7789V

Interface

4 SPI

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2070

Storage Temperature

-3080





Pin No.

Symbol

I/O

Function

1

GND

P

Power ground

2

K

P

Cathode of LED backlight

3

A

P

Anode of LED backlight

4

VCC

P

Power supply

5

GND

P

Power ground

6

GND

P

Power ground

7

RS

1

Display data/command selection

8

CS

1

Chip selection.pin Low enable. High

9

SCL

1

serial interface clock pin

10

SDA

1/0

SPI interface input/output pin.

11

RST

1

Global reset pin

12

GND

P

Power ground

13

GND

P

Power ground







Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
