TSD 7 inch 800*1280 IPS TFT LCD display module with MIPI interface

  • Model Name: TST070HDHI-130
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 450 cd/m2
  • Driver IC: JD9366AB
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST070HDHI-130 is 7 inch 800*1280 resolution LCD display with MIPI interface, standard brightness is 400cd/m2. For this 7 inch TFT LCD module,  Driver IC is JD9366AB, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in Handheld device, Pos Machine.Scanner.





Specification
Part No. TST070HDHI-130
Outline Dimension(mm) 99.85x161.7x2.6
Active Area(mm) 94.2x150.72
Resolution(dots) 800*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx1280(V)
Touch panel without touch
Dot Pitch 0.03925(W)x0.11775(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black, IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Brightness 400 cd/m2
Interface MIPI
Module lifetime(Hours) 50,000-100,000

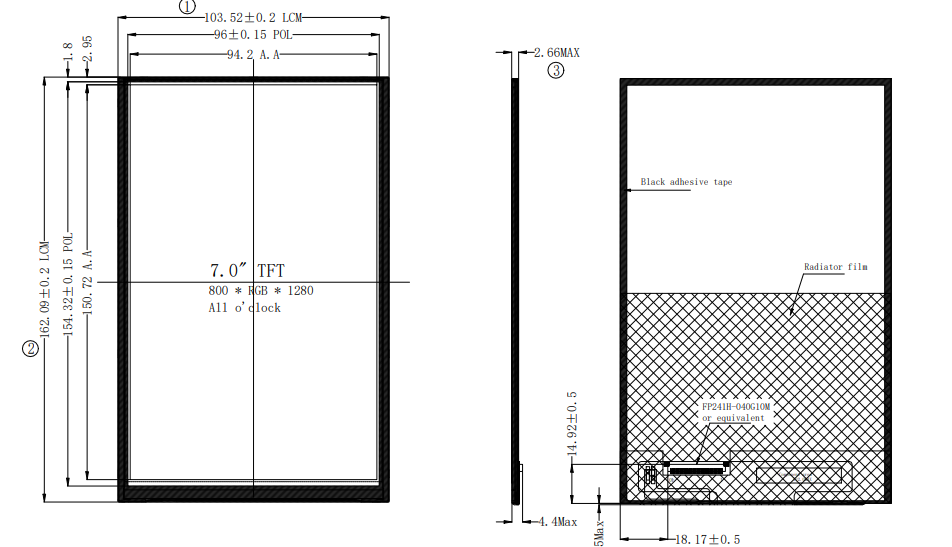

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VCOM Common Voltage(-1.7560.3VNo comnect
2 VDDIN Power supply +2.8-3.3V
3 VDDIN Power supply +2.8-3.3V
4 GND System Ground. (0v)
5 RST Reset input signal
6 NC No connect
7 GND System Ground. (0v)
8 MIPI DON MlPI data cathode input pin
9 MIPI DOP MiPl data aothod input pin
10 GND System Ground. (0v)
11 MIPI D1N MlPl clock cathode input pin
12 MIPI D1P MiPl data aothod input pin
13 GND System Ground. (0v)
14 MIPI CKN MlPl clock cathode input pin
15 MIPI CKP MiPl data aothod input pin
16 GND Ground
17 MIPI D2N MlPl clock cathode input pin
18 MIPI D2P MlPI data aothod input pin
19 GND Ground
20 MIPI D3N MIPI-DSI data Lane 2 positive-end input/output pin
21 MIPI D3P MIPI-DSI data Lane 2 nesitive-end input/output pin
22 GND Ground
23-24 NC No connect
25 GND Ground
26 NC No connect
27 PWMO PWM control signal for LED driver(CABC)
28 NC No connect
29 VCL Output voltage pin/No connect
30 GND System Ground. (ov)
31-32 LED- Backlight k Cathode input pin.
33-34 NC No connect
35 AVEE Analog supply negative voltage/No connect
36-37 NC No connect
38 AVDD Analog supply positive voltage/No connect
3.9-40 LED+ Backlight A Aothod input pin.

Applications:

For our 7 inch LCD display TST070HDHI-130, it's widely using in handheld device, Consumer electronics products.POS machine etc.

Product Features:

1. 7inch 800*1280res. with 40pins MIPI interface

2. IPS lcd : full viewing angle

3.high brightness up to 450nits

4.Vertical lcd type

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
