TSD 480x640 IPS TFT LCD display with RGB interface

  • Model Name: TST030VGGP-02
  • LCD Type: 3.0 inch TFT LCD display
  • Resolution: 480x640
  • Viewing angle: All o'clock
  • Brightness: 500 cd/m2
  • Driver IC: could be flexible
  • Interface: RGB 24 bits
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST030VGGP-02 is 3.0 inch 480x640 resolution RGB 24 bit interface LCD display module, without standard capacitive touch panel. Backlight is 500 nits, which could be customized. For this 3.0 inch TFT LCD module, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.

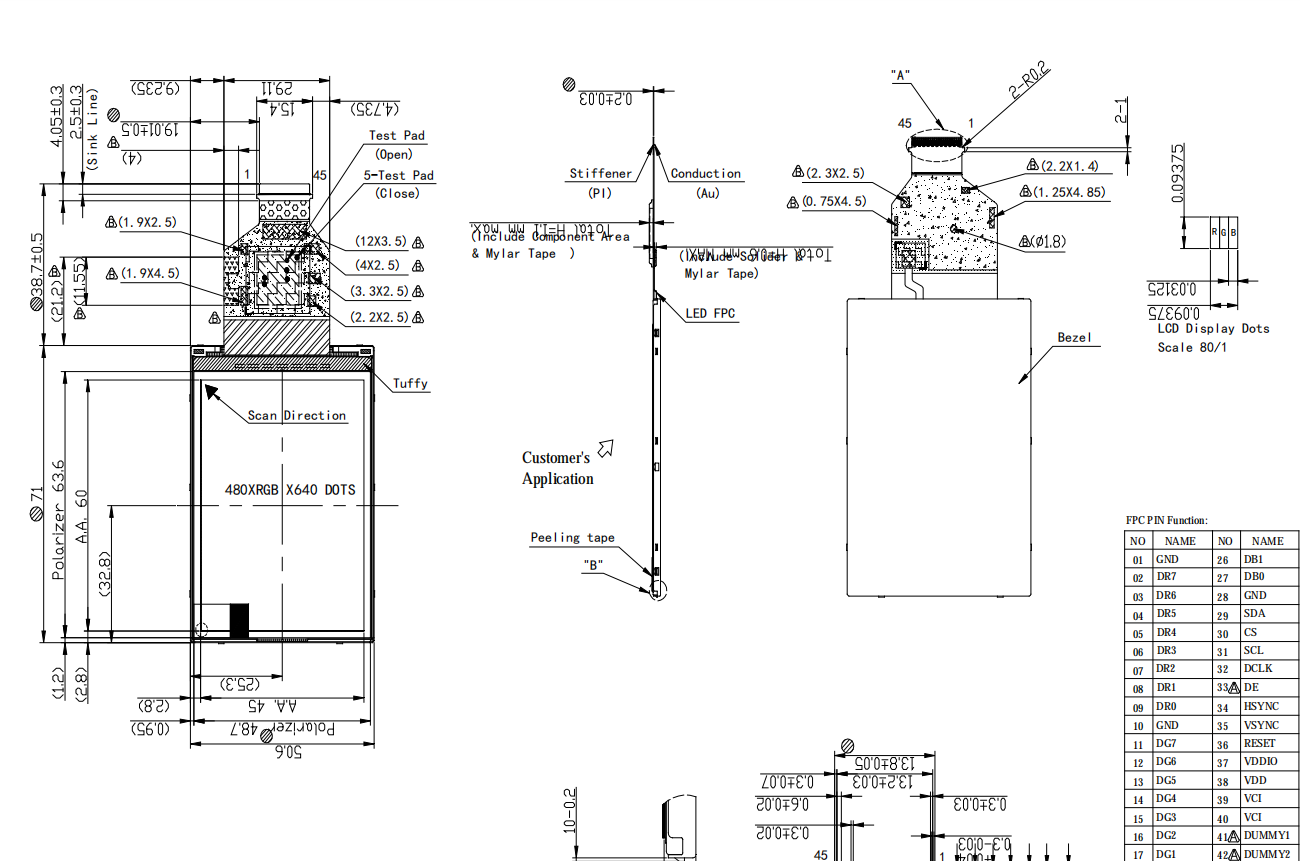

Drawing:




Specifications:



General Specification
Part No.  TST030VGGP-02
Outline Dimension(mm)

50.6x70x2.2

Active Area(mm) 45x60
Resolution(dots) 240x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx640(V)
Touch panel  w/o CTP
Driver IC could be customized
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.0 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24 bits
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 GND Power ground
2-9 DR7-DR0 8 bits red digital data input
10 GND Power ground
11-18 DG7-DG0 8 bits green digital data input
19 GND Power ground
20-27 DB7-DB0 8 bits blue digital data input
28 CS Chip select signal
29 GND Power ground
30 SDA Serial communication data input/output
10 CS chip selection signal
31 SCL Serial communication clock input
32 DCLK Clock signal pin
33 DE Data input Enable pin
34 HSYNC Horizontal sync signal
35 VSYNC Vertical sync signal
36 RESET Global reset pin
37 VDDIO I/O power supply
38 VDD Core power
39 VCI Analog power supply
40 VCI Analog power supply
41 DUMMY1 Not use
42 DUMMY2 Not use
43 DUMMY3 Not use
44 VLED- Cathode for LED power supply
45 VLED+ Anode for LED power supply




Applications:



For our 3.0 inch LCD display TST030VGGP-02, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.




Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.0" contains 480x640 dots and can display up to 262k colors.
