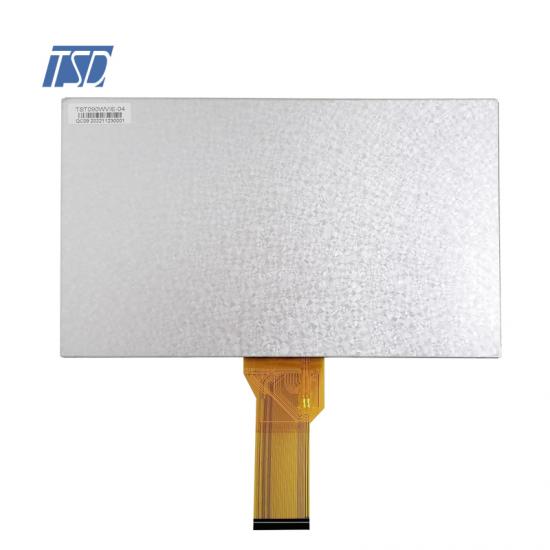

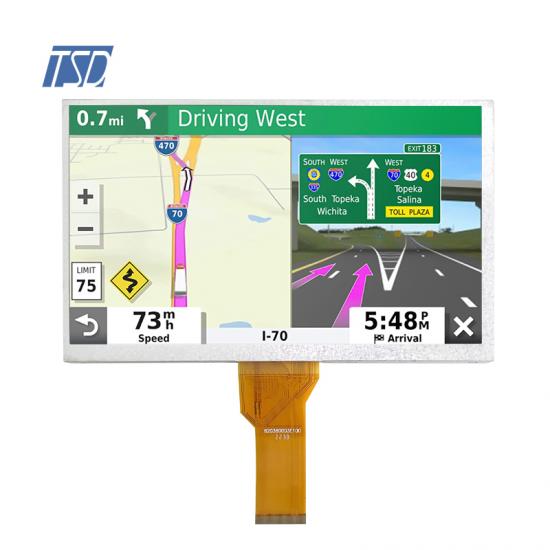

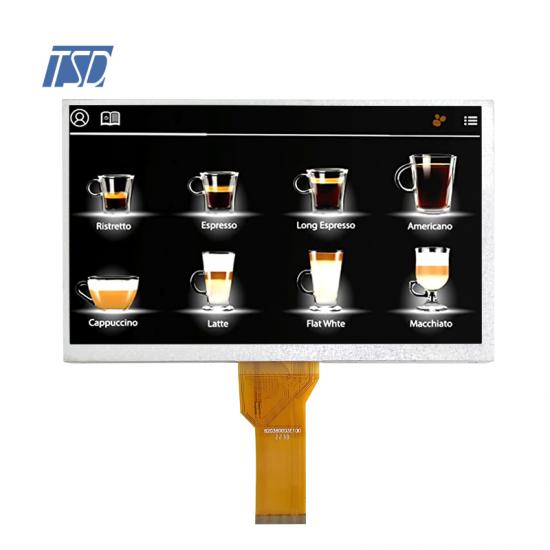

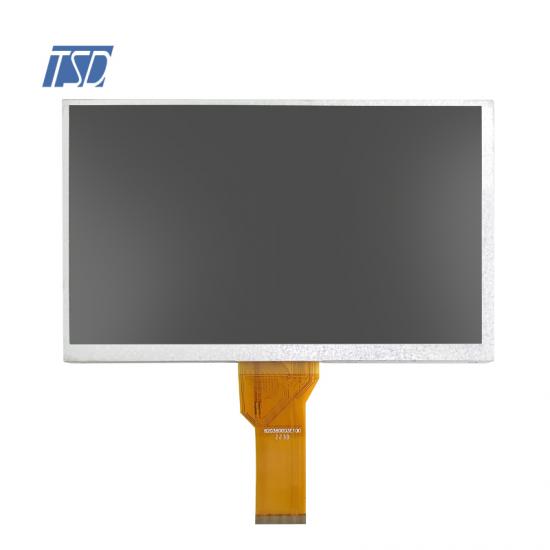

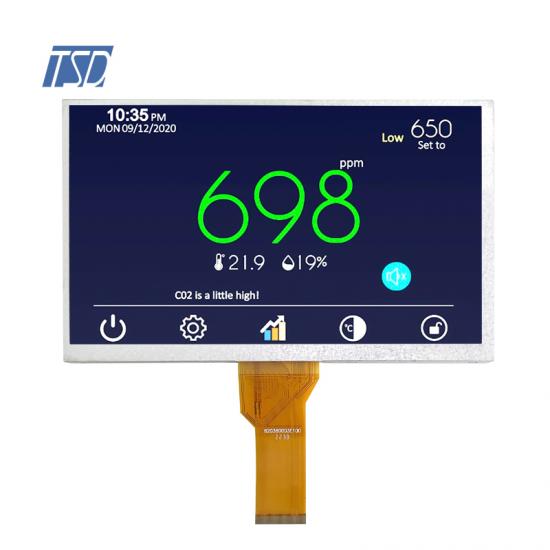

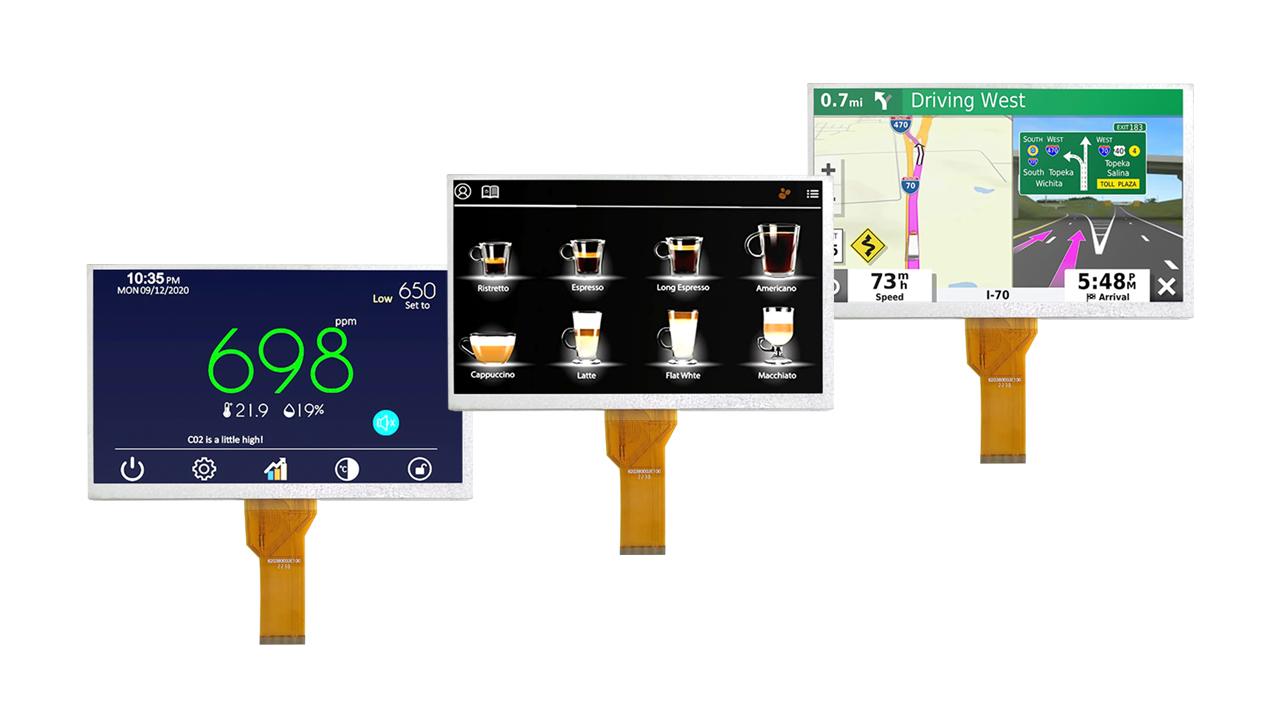

TSD 9 inch lcd display module 800x480 resolution with RGB

  • Model Name: TST090WVIE-04
  • LCD Type: 9 inch TFT LCD display module
  • Resolution: 800x480
  • Viewing angle: 12 o'clock
  • Brightness:  250cd/m2
  • Driver IC: EK9713CA+EK73002A
  • Interface: RGB 24bit
  • Touch Screen: available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



Team Source Display model TST090WVIE-04 is a standard color TFT LCD, normally white with transmissive type TN panel, 800x480 resolution, EK9713CA+EK73002A driver IC, RGB-24bits 50pin interface, 16.7M color depth, Anti-glare surface treatment.

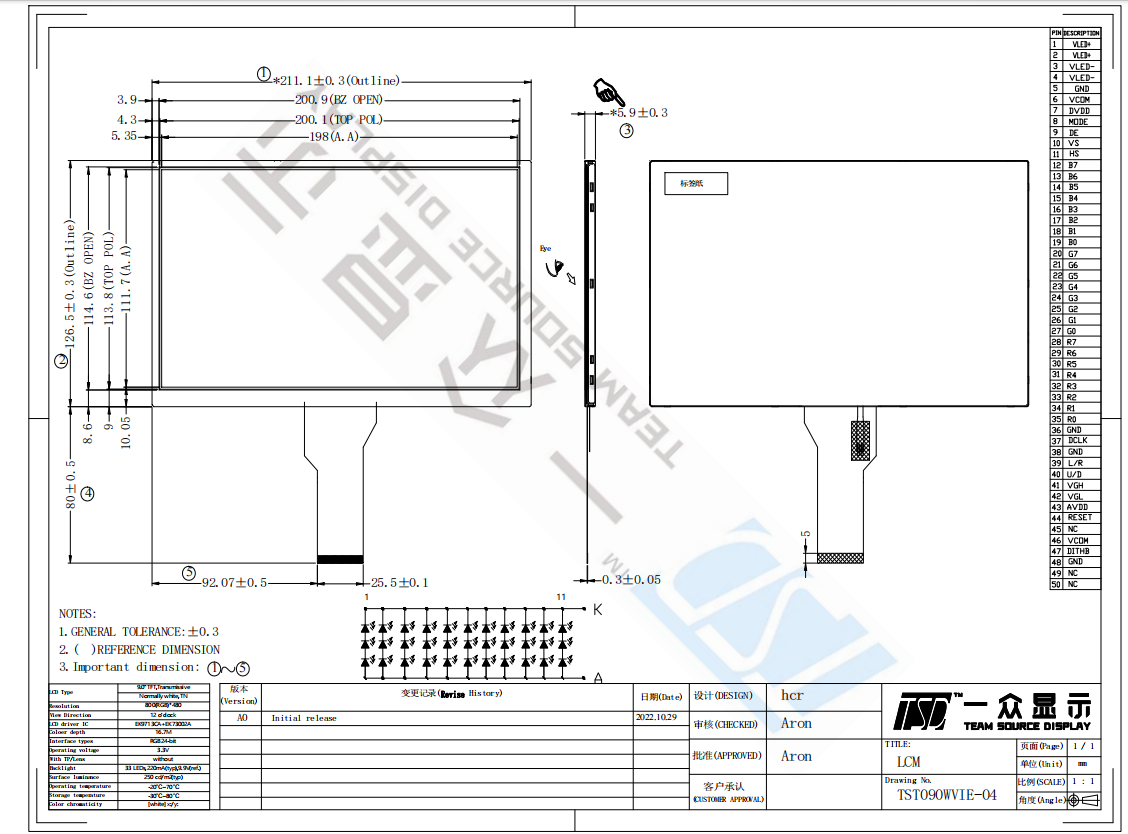

Drawing:




Specifications:



General Specification
LCD Type. 9"TFTTransmissive. Normally white,TN
Part No.  TST090WVIE-04
Outline Dimension(mm)

211.1(W)x126.5(H)x5.9(D)

Active Area(mm) 198(W) x 111.7(H)
Resolution(dots) 800x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Backlight 33 LEDs,220mA(typ),9.9V
Touch panel  available with CTP&RTP
Driver IC EK9713CA+EK73002A
Pixel arrangement RGB-stripe
View direction  12H
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface RGB 24bits
Module lifetime(Hours) 30,000-50000





Pins Description
Pin No.  Symbol Description
1-2 VLED+ Anode ofLED backlight
3-4 VLED- Cathode ofLED backlight
5 GND Power ground
6 VCOM A power supply for the TFT-LCD common Cathode electrode
7 DVDD Power voltage(3.3V)
8 MODE DE /SYNC mode select
9 DE Date Enable signal
10 VS

Vertical Sync input.

11 HS Horizontal Sync input.
12-19 B7-B0 Blue data bus
20-27 G7-G0

Green data bus

28-35 R7-R0 Red data bus
36 GND Power ground
37 DCLK Dot clock signal for DPI (RGB) interface
38 GND Power ground
39 L/R Source Right or Left sequence control.
40 U/D Gate Up or Down scan control
41 VGH Power output pin for gate driver
42 VGL Power output (Negative) pin for gate driver
43 AVDD Power pad for analog circuit
44 RESET Global reset pin
45 NC Not connection
46 VCOM
A power supply for the TFT-LCD commonp /Down Display Control electrode
47 DITHB
Dithering function enable control.
48 GND Power ground
49-50 NC Not connection




Applications:



For this 9 inch TFT LCD display TST090WVIE-04 800x480 resolution, widely used for home appliances and fitness equipment, medical devices, consumer products and industrial equipment.




Product Features:



1. 800x480 resolution of 9 inch LCD display.

2. Standard touch screen and customization could be supported.
