Description:

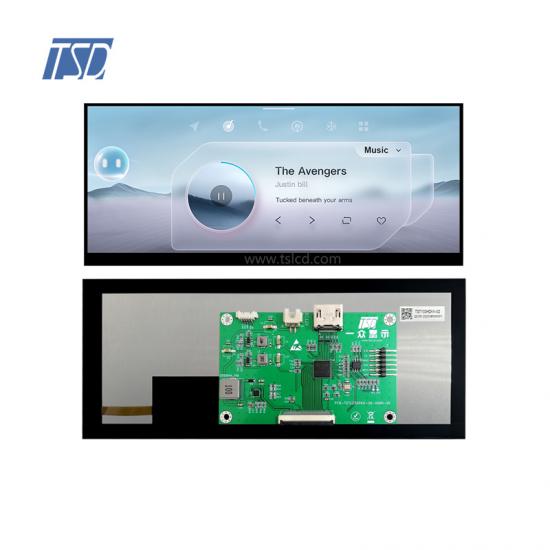

TST103HDKK-02 is 10.3 inch 1920x720 resolution IPS tft lcd display. This is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)that uses a-Si and transmissive TFT as a switching device with normal-black technology. It is composed of a TFT LCD panel, driver IC and back-light. The TFT LCD has 10.3 inch with 1920 x 720 resolution and RoHS directive.

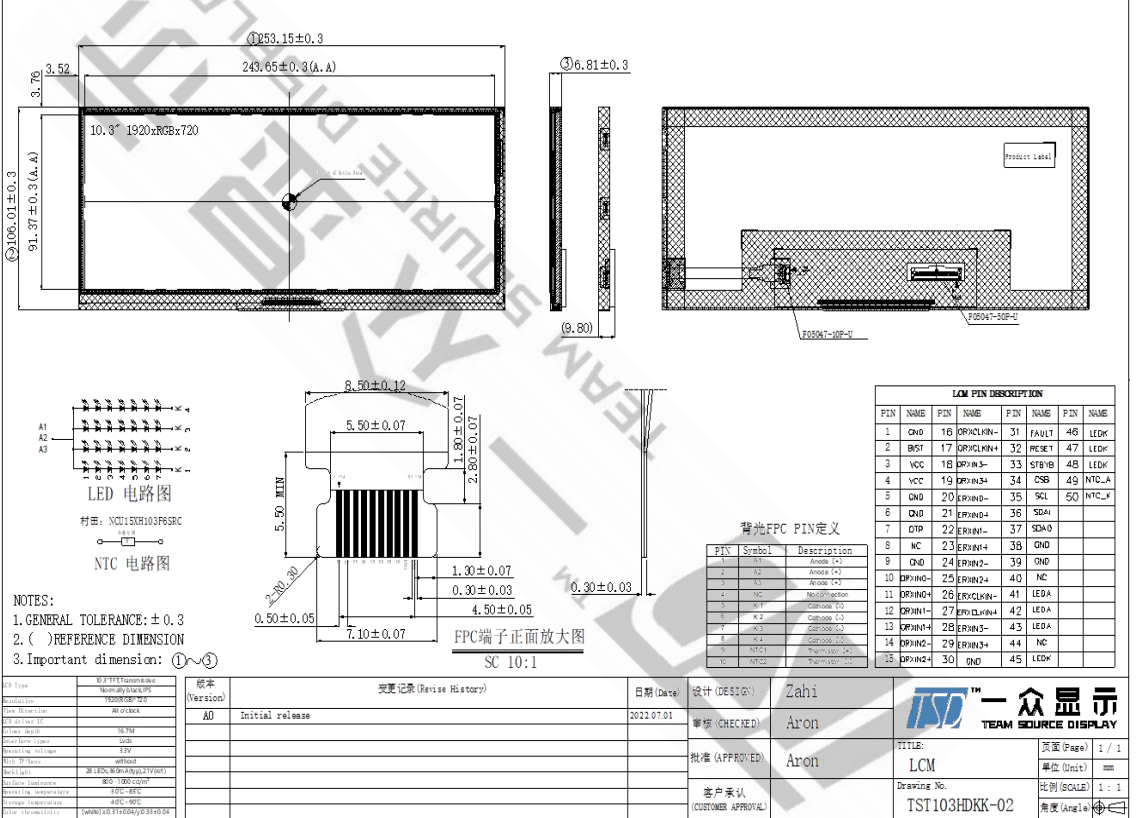

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST103HDKK-02 | |
| Outline Dimension(mm) |
253.15(W)x106.01(H)x6.81(D) |
|
| Active Area(mm) | 243.65(W) x 91.37(H) | |
| Resolution(dots) | 1920x (RGB) × 720 | |
| Operating temperature(°C) | -30 ~ +85°C | |
| Storage temperature(°C) | -40 ~ +90°C | |
| Number of Pixel(pixels) | 1920RGB(H)xRGBx720V) | |
| Touch panel | without | |
| Technology type | a-Si | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 10.3 inch TFT | |
| Surface treatment | Antiglare | |
| Viewing direction | All o'clock | |
| Brightness | 1000 nits | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | LVDS/HDMI |
|
| Module lifetime(Hours) | 30,000-50,000 | |
| Pins Description for HDMI Type A (CN1) | ||
| Pin No. | Symbol | Description |
| 1 | TMDS DATA2+ | HDMI data lane2 positive input |
| 2 | GND | Power ground |
| 3 | TMDS DATA2- | HDMI data lane2 negative input |
| 4 | TMDS DATA1+ | HDMI data lane1 positive input |
| 5 | GND | Power ground |
| 6 | TMDS DATA1- | HDMI data lane1 negative input |
| 7 | TMDS DATA0+ | HDMI data lane0 positive input |
| 8 | GND | Power ground |
| 9 | TMDS DATA0- | HDMI data lane0 negative input |
| 10 | TMDS_CLK+ | HDMI clock positive input |
| 11 | GND | Power Ground |
| 12 | TMDS_CLK- | HDMI clock negative input |
| 13 | CEC/NC | No connect |
| 14 | NC | No connect |
| 15 | DDC_SCL | Display Data Channel, clock input |
| 16 | DDC_SDA | Display Data Channel, data input/output |
| 17 | GND | Power ground |
| 18 | +5V | Power supply +5V |
| 19 | H-PLUG DETECT | Hotplug pin |
| Backlight control interface (CN3) | ||
| Pin No. | Symbol | Description |
| 1 | BL_EN | Backlight enable pin. High active |
| 2 | BL_PWM | Backlight PWM dimming control input |
| 3 | GND | Ground |
| 4 | NTCA | Backlight Thermistor+ |
| 5 | NTCK | Backlight Thermistor- |
Features:
10.3 (8:3 diagonal) inch configurationLandscape type
Fail detect function
Parallel RGB 8 bits (16.7M)
LVDS or HDMI interface supported
Applications:
TFT LCD Monitor
Industrial fields
Amusement
Vehicle
