TSD 240x128 dots STN graphic lcd display

  • Model Name: TSM240128-3A
  • LCD Type: 240*128 dots lcd
  • Resolution: 240*128
  • Viewing angle: 6H
  • Driver IC: RA6963
  • Voltage:3.3V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM240128-3A is a 240*128 dots dot-matrix LCD module. It has a STN panel composed of 240 segments and 128 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 240 x 128
Display type STN Yellow Green
Description 240x128 graphic lcd module
Model name TSM240128-3A
Outline Size 144x104x12.5mm
View Area 114x64mm
Active Area 107.95x57.55mm
Viewing angle 6 o'clock
MOQ 500pcs
Number of pins 21
Voltage 3.3V
IC RA6963
Operating temperature -20-70℃
Storage temperature -30-80℃
Backlight LED



Drawing:

Interface Description:

PIN SYMBOL
1 FG
2 VSS
3 VDD
4 V0
5 WR
6 RD
7 CE
8 CD
9 RST
10 DB0
11 DB1
12 DB2
13 DB3
14 DB4
15 DB5
16 DB6
17 DB7
18 FS
19 VOUT
20 A
21 K



Applications:

For our TSM240128-3A dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM240128-3A   240*128 dots lcd with 21pins

2. 3.3v working Voltage

3.RA6963 IC chip

4.font table support English/European/Japanses/Russian

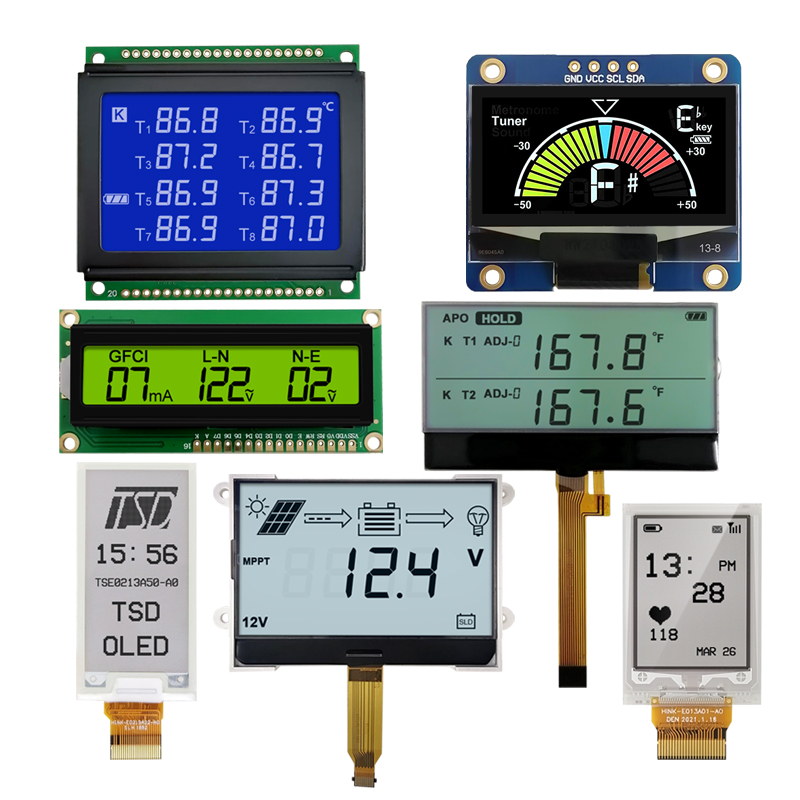

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Reliable TSD 240x128 graphic lcd module FSTN/STN Negative/Postive Factories
TSD 240x128 graphic lcd module FSTN/STN Negative/Postive
Model Name: TSM240128C LCD Type: 240*128 dots lcd Resolution: 240*128 Viewing angle: 6H Driver IC: RA6963 Voltage:3.3V Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
3.5 inch IPS MONO TFT
QVGA 240x320 resolution 3.5 inch IPS mono TFT lcd with high performance
QVGA 240x320 resolution 3.5 inch IPS mono tft lcd with high performance

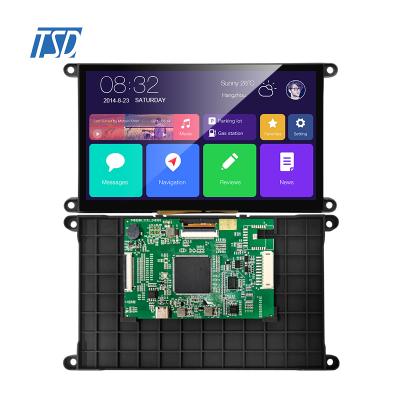

500cd/m2 brightness 7'' TFT LCD Module
