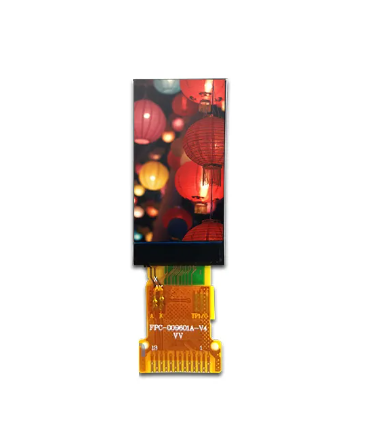

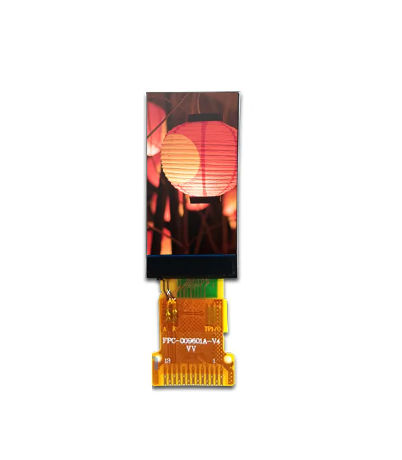

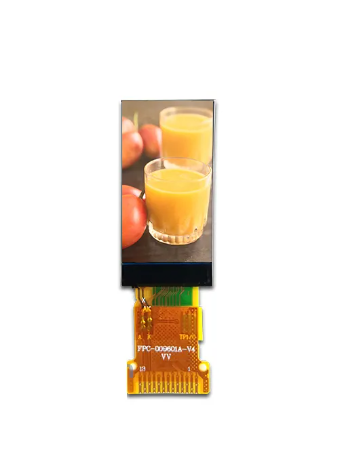

TSD 0.96 inch small size Customization lcd panel 80*160 Resolution



LCD Type: Transmissive/Normally Black

Resolution: 80x (RGB) × 160

View Direction: ALL

LCD driver IC: ST7735S

Interface types: 4-SPI

Weight: TBD

Operating temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Description:

This display module is a transmissive type color active matrix TFT(Thin film transistor) liquid crystal display that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back light  unit.The resolution of a 0.96 inch contains 80*160 dots and can be display up to 65K colors.

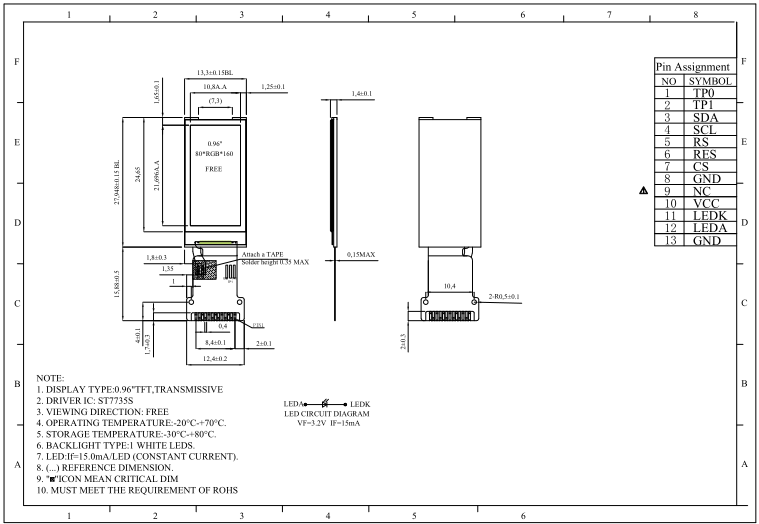

Drawing:



Specification



General Specification

Part No.

TST09601A-V3

Display Size(Diagonal)

0.96 inch

LCD type

Transmissive/Normally Black

Resolution

80 x (RGB) ×160

View Direction

All clock

Module Outline

13.3(H)*27.948(V)*1.4(T)

Active Area

10.80(H)*21.7(V)

Viewing Area

ALL

Colors

65k

Interface

4-SPI

Driver IC

ST7735S

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Operating Temperature

-2060

Storage Temperature

-3070



Pins Description

Pin No.

Symbol

Description

1

TP0

Touch PIN, if not used, please open this PIN

2

TP1

Touch PIN, if not used, please open this PIN

3

SDA

SPI interface, input/output pin. the date is latched on the rising edge of the SCL signal

4

SCL

This PIN is used to be serial interface on the rising edge of the SCL signal

5

D/C

Display data /command selection pin in 4-line serial interface

6

RESET

This signal will reset the device and it must be applied to properly initialize the chip, signal is active low

7

CS

Chip selectionpin, Low enable, HIgh disable

8

GND

Power ground

9

NC

No connection

10

VDD

Power supply for the Analog Vdd=2.5V-3.3V

11

LEDK

LED Cathode

12

LEDS

Led Anode

13

GND

Power Gound



 Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
