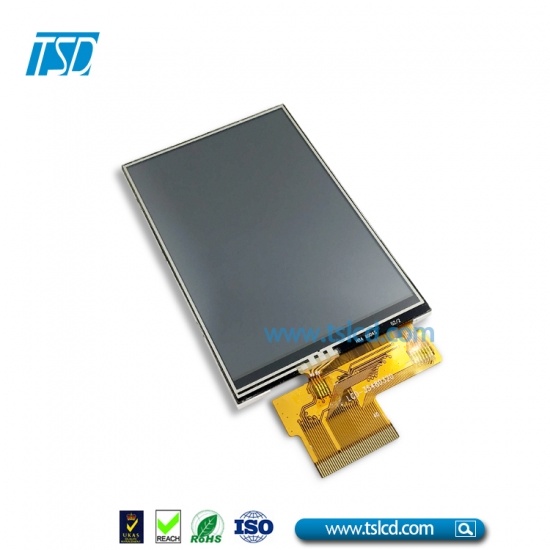

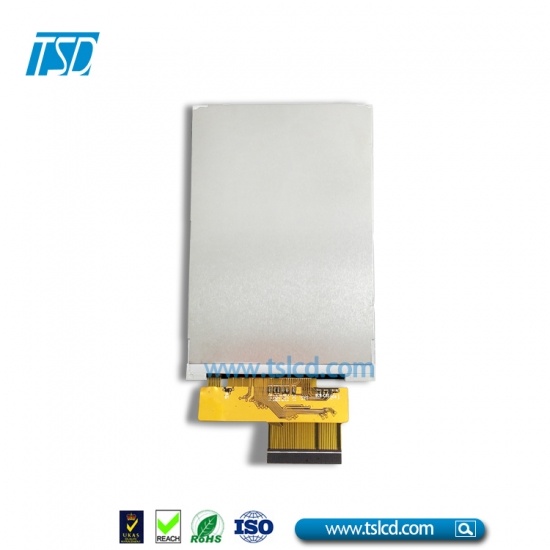

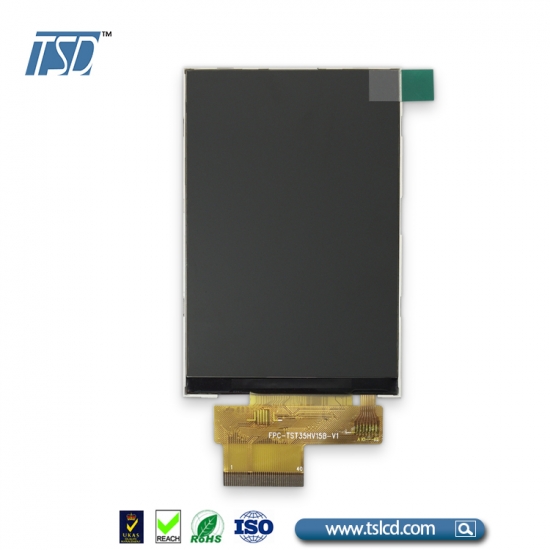

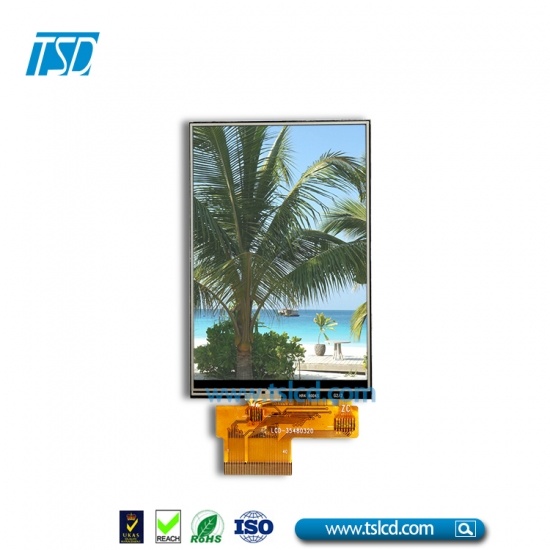

High resolution VGA 480x640 resolution 3.5 inch tft lcd dispplay with ILI9805C controller
| Specification | |
| LCD type | TFT, Transmissive |
| Display type | 3.5 inch TFT LCD VGA, 262k color, normal white |
| Driver element | a-si TFT Active matrix |
| Outline Dimension(mm) | 63.5x85.5x3.23 |
| A.A.(mm) | 48.96mm*73.44mm |
| Driver IC | ILI9805C |
| Item |
3.5 inch tft lcd panel with MIPI Interface |
| Resolution(dots)_ | 480*RGB*640 |
| Viewing Direction | 6H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Number of Pixel(pixels) | 480(H)x 3RGB x 640(V) |
|
Touch screen |
Available to custom |
| Operating Volatge | 2.8v |
| Pixel arrangement | RGB Stripe |
| Display mode | Normally white |
| Surface treatment | Antiglare, Hard-Coating(3H) |
| Weight(g) | TBD |
|
Connector (IC) |
COG (ili9805C) |
| Weight(g) | TBD |
| Interface | MIPI |
| Module lifetime(Hours) | 50,000-100,000 |
