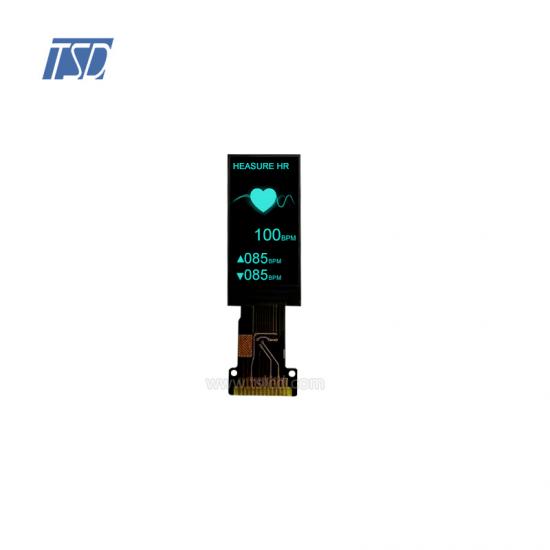

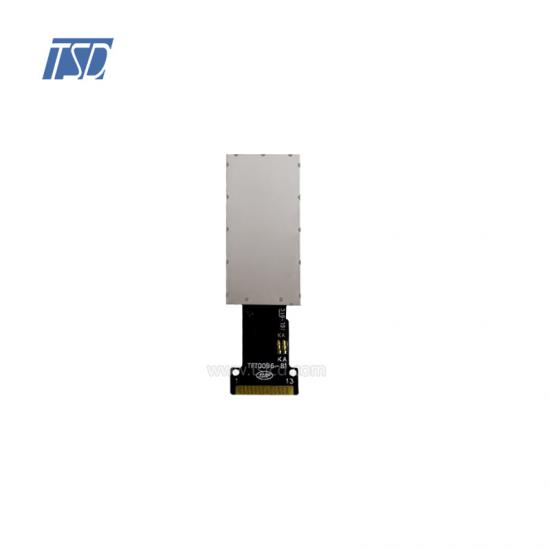

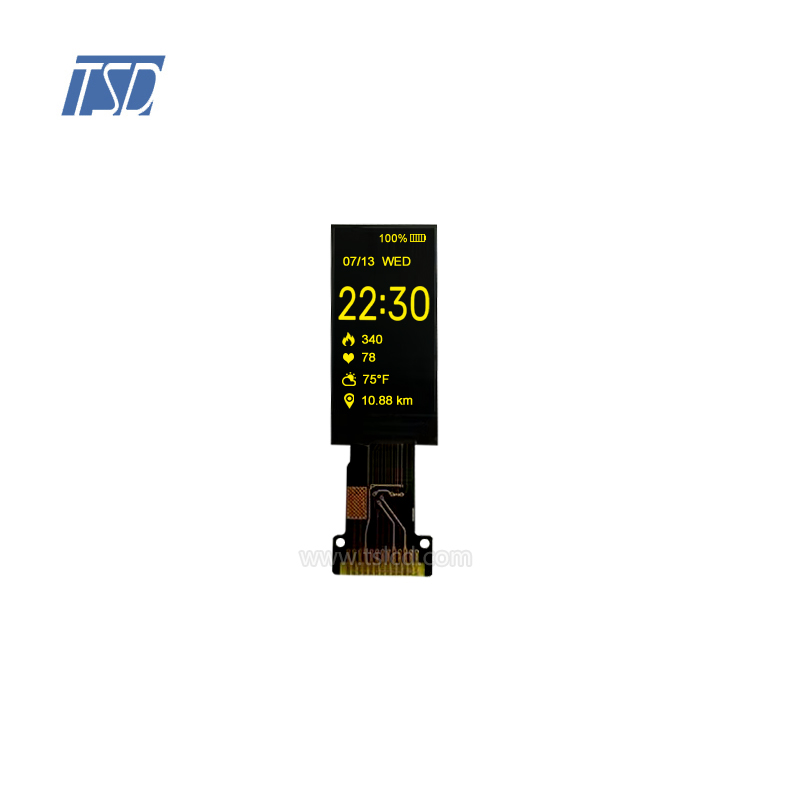

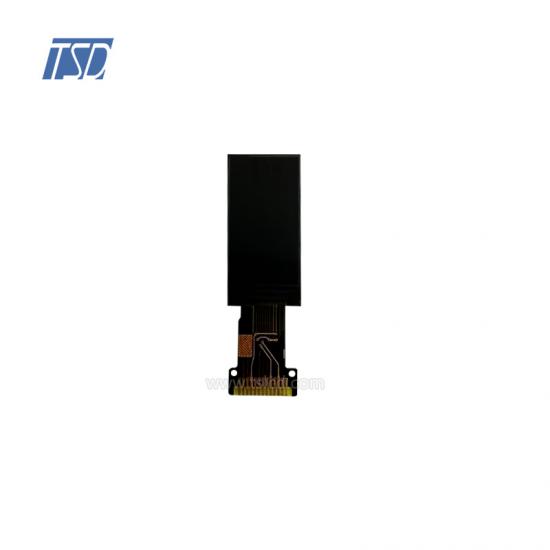

TSD 0.96 inch LCD display 80*160 resolution IPS panel with SPI interface

  • Model Name: TST09607A
  • LCD Type: 0.96 inch TFT LCD display
  • Resolution: 80*160
  • Viewing angle: All o'clock
  • Brightness: 600 cd/m2
  • Driver IC: ST7735S
  • Interface: SPI
  • Touch Screen: Customize
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST09607A is a 0.96 inch TFT LCD with 80*160 resolution, for the small size reason, popular in the devices of showing number, picture and time, as well as easy to carry. The 0.96 inch LCD we produced has the following standards: Driver IC is ST7735S, viewing direction is free because of the IPS panel, 4 wire SPI interface, Color depth is 65K, brightness is 600 cd/m². It is suitable for some electronic devices which need small size display, like smart watch, wearable product, and IOT devices.

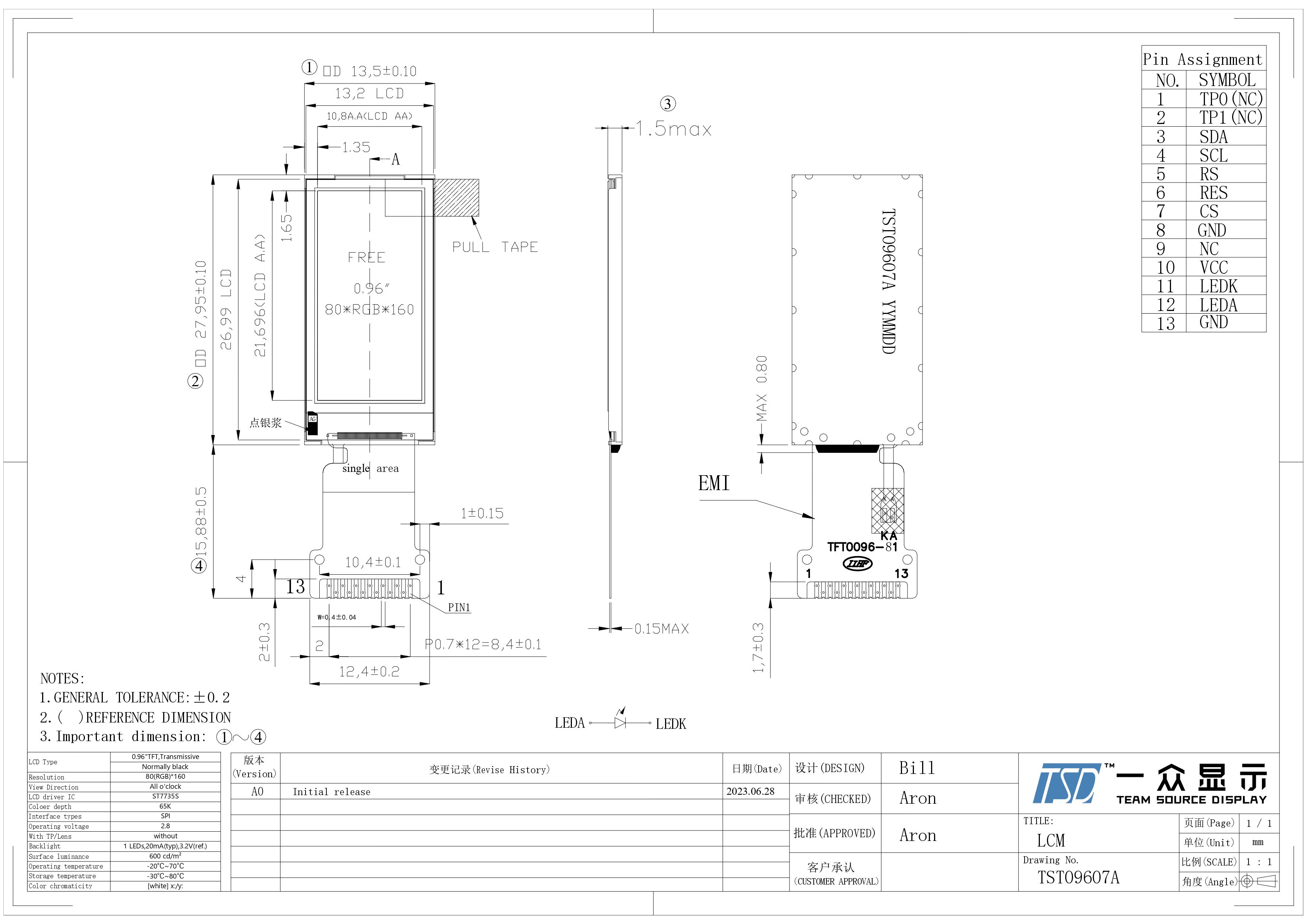

Drawing:




Specifications:



General Specification
Part No.  TST09607A
Outline Dimension(mm)
13.5W) x 27.95(H) x 1.5(D)
Active Area(mm)
10.8(W) x 21.696 (H)
Resolution(dots)  80*160
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 80x (RGB) × 160
Touch panel  Customizable
Driver IC ST7735S
Pixel arrangement
RGB Vertical stripe
Display mode
IPS,Transmissive,Normally Black
Surface treatment -
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 50,000-100,000





Pins Description
Pin No.  Symbol Description
1 TP0
No connect
2
TP1
No connect
3 SDA
the serial data input/output signal
4
SCL
the serial clock input signal
5 RS
Data/Command Selection pin
6 RES
Reset input signal,active low
7
CS
Chip select signal.Low Enable
8
GND
System Ground. (0V)
9 NC No connect
10 VCC
Power supply +2.8V
11
LEDK
Backlight K Cathode input pin.
12
LEDA
Backlight A Aothod input pin.
13
GND
System Ground. (0V)




Applications:



For our 0.96 inch LCD display TST09607A, is good for many small electronic devices, especially those that require a smaller display screen to display number, time, and pictures, etc. such as smart watch, fitness trackers, IoT devices.












Product Features:



1. Small size LCD is easy to carry for some small devices;

2. Standard LCD have 4 wire SPI interface;

3. Our 0.96 inch LCD display is good for fitness trackers because of the TFT panel and high brightness, so can bring you the fantstic viewing effect;

4. If you have the touch requirement, customized design are warmly welcome.
