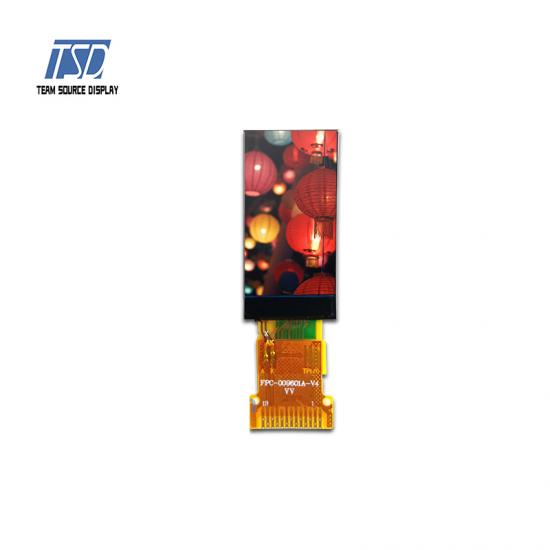

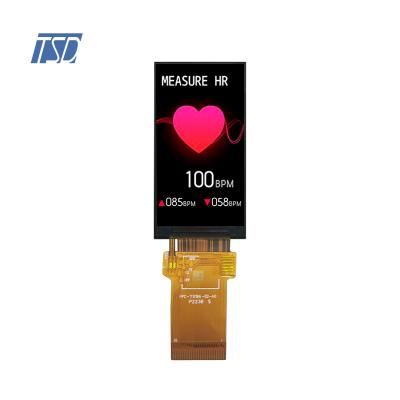

TSD 0.96 inch LCD display 80x160 resolution IPS panel with GC9106

  • Model Name: TST09604A-01B
  • LCD Type: 0.96 inch TFT LCD display
  • Resolution: 80x160
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: GC9106
  • Interface: SPI
  • Touch Screen: Customize
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



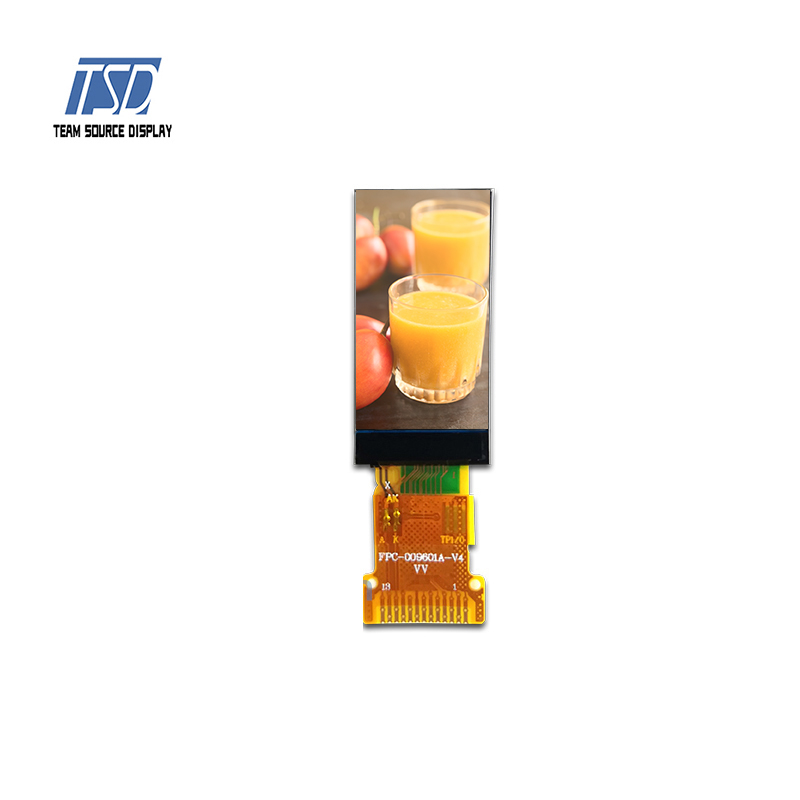

TST09604A-01B is a 0.96 inch TFT LCD with 80x160 resolution, for the small size reason, popular in the devices of showing number, picture and time, as well as easy to carry. The 0.96 inch LCD we produced has the following standards: Driver IC is GC9106, viewing direction is free because of the IPS panel, 4 wire SPI interface, Color depth is 65K, brightness is 600 cd/m². It is suitable for some electronic devices which need small size display, like smart watch, wearable product, and IOT devices.

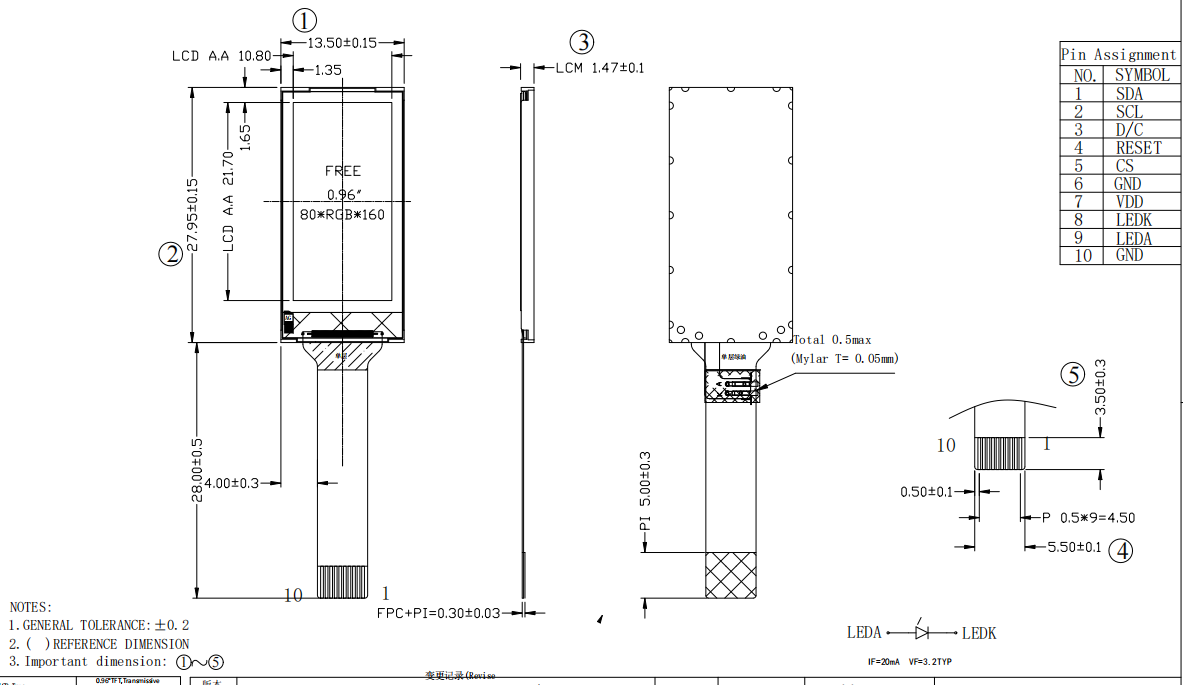

Drawing:




Specifications:



General Specification
Part No. TST09604A-01B
Outline Dimension(mm)
13.5x27.95x1.47
Active Area(mm)
10.8x21.7
Resolution(dots)  80x160
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Pin Number 10 pin
Touch panel  Customizable
Driver IC GC9106
Pixel arrangement
RGB Vertical stripe
Display mode
IPS,Transmissive,Normally Black
Surface treatment N/A
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI
Module lifetime(Hours) 30,000 hours





Pins Description
Pin No.  Symbol
1 SDA
2 SCL
3 D/C
4
RESET
5 CS
6 GND
7
VDD
8
LEDK
9 LEDA
10 GND




Applications:



For our 0.96 inch LCD display TST09604A-01B, is good for many small electronic devices, especially those that require a smaller display screen to display number, time, and pictures, etc. such as smart watch, fitness trackers, IoT devices.












Product Features:



1. Small size LCD is easy to carry for some small devices;

2. Standard LCD have 4 wire SPI interface;

3. Our 0.96 inch LCD display is good for fitness trackers because of the TFT panel and high brightness, so can bring you the fantstic viewing effect;

4. If you have the touch requirement, customized design are warmly welcome.
