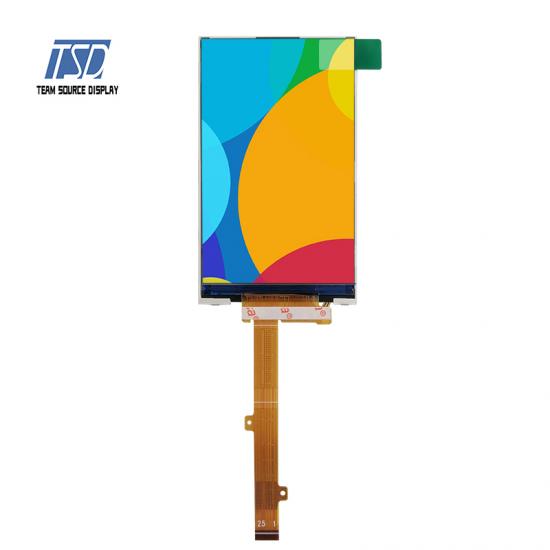

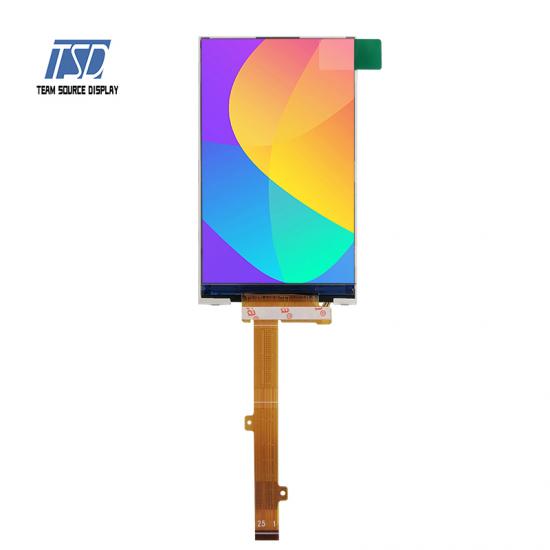

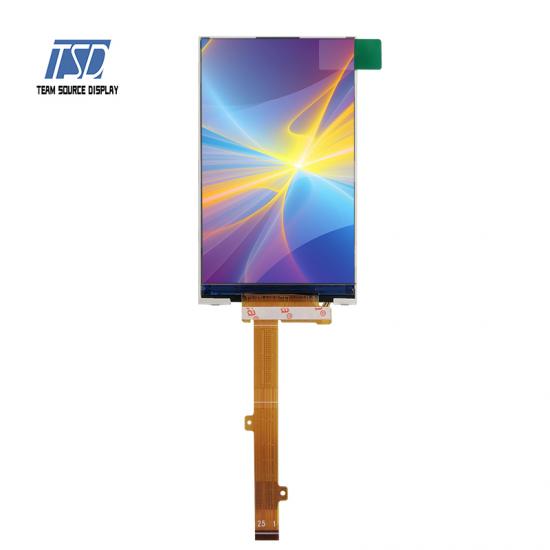

TSD 3.5 inch tft lcd 480*800 resolution MIPI interface ST7701S driver IC

LCD Type: a-Si TFT,Transmissive,Normally black

LCD Size: 3.5 inch

Resolution: (W x H) 480x (RGB) × 800 pixel

Outline size: 51.16(H) x 87.35(V) x2.1(T) mm

Active Area: 45.36 (H) x 75.60 V) mm

Pixel Pitch: 0.0945(H) × 0.0945(V) mm

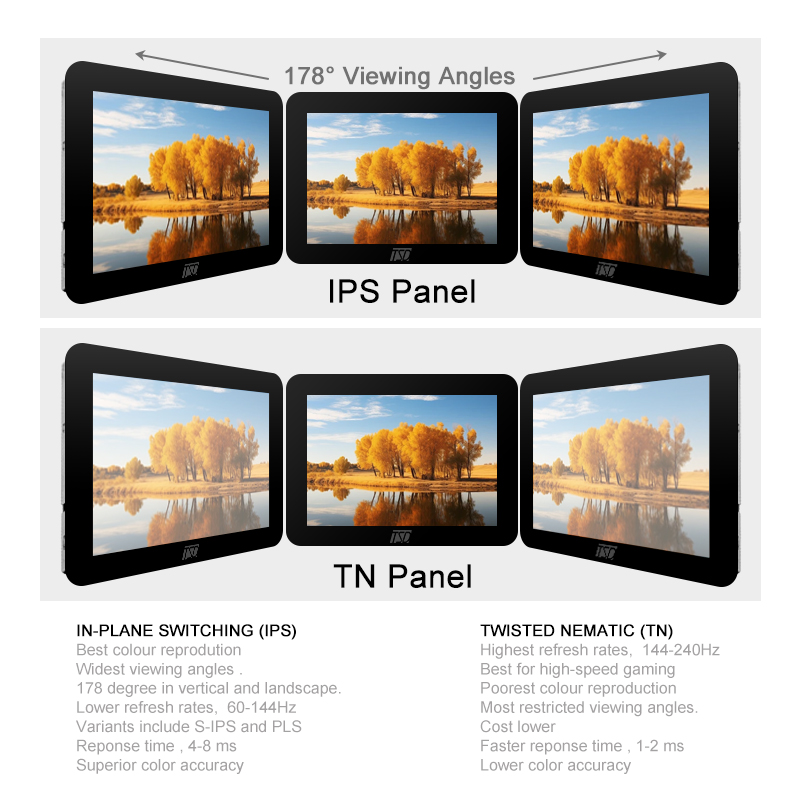

Viewing Direction: ALL o’clock

Color Depth: 16.7M

Pixel Arrangement RGB-stripe

Surface Luminance 420(TYP) cd/m²

LCD Interface:  MIPI

With/Without TP or Lens: Without

Weight: TBDg

Description:



TST035WVBS-66 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's as an active switching devices. this model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 45.36 (H) x 75.60 V) mm diagonally measured active area with Z6 resolutions.Each pixel is divided into Red, Green, Blue donts which are arranged in 2 domain stripe and this panel can display 16.7M colors

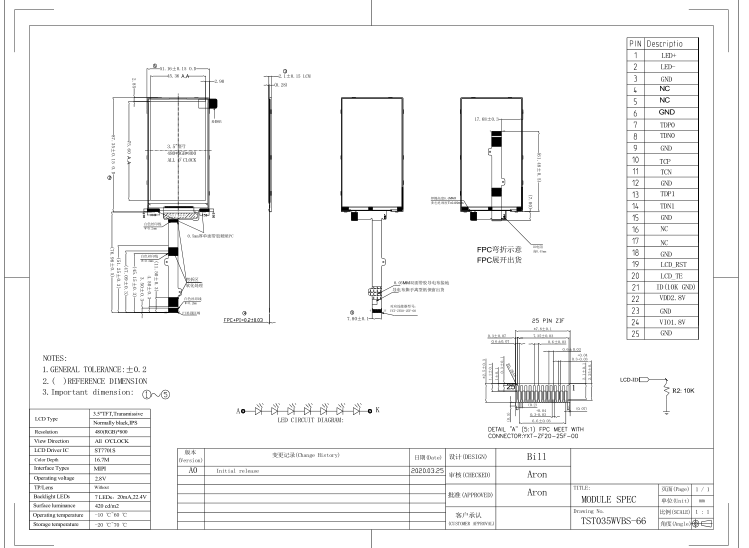

Drawing:



Specifications:



General specifications

Part No.

TST035WVBS-66

Outline Dimension(mm)

51.16(H) x 87.35(V) x2.1(T)

Active Area(mm)

45.36 (H) x 75.60 V)

Resolution(dots)

480x (RGB) × 800

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

420cd/m2

Touch panel

No

Pixel arrangement

RGB-stripe

Display mode

Normal black, IPS

Surface treatment

Antiglare

View direction

All o'clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MIPI



PIN Define

Pin No.

Symbol

Description

1

LED

Backlight Anode input pin

2

LED

Backlight Cathode input pin

3

NC

No connect

4

NC

No connect

5

GND

Power ground

6

GND

System grounduse it.

7

TDP0

MIPI differential data input Pair 0

8

TDN0

Power ground

9

GND

Power ground

10

TCP

MIPI differential Clock input Pair

11

TCN

/

12

GND

Power ground

13

TDP1

MIPI differential data input Pair 1

14

TDN

/

15

GND

Power ground

16

NC

No connect

17

NC

No connect

18

SYS_RST

Global reset pin

19

 LCD

Tearing Effect output signal

20

LCD

Tearing Effect output signal

21

ID(10K/GND)

ID(10K/GND)

22

VDD2.8V

power supply(+2.8V)

23

GND

Power ground

24

VIO1.8V

power supply (+1.8V)

25

GND

Power ground

Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.



7. Information Terminal Display: POS, PDA, Handheld devices.
