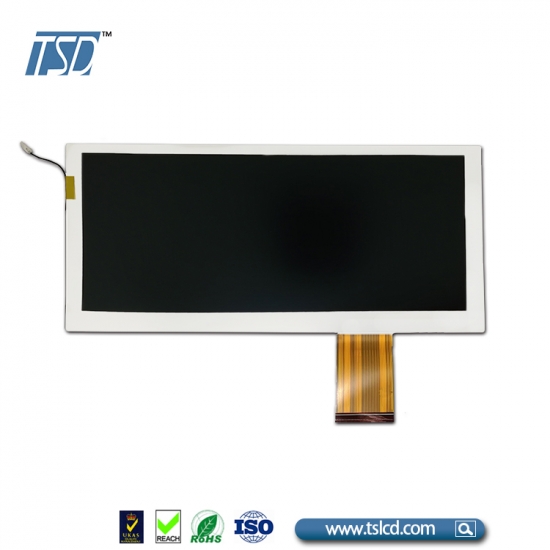

TSD 8.88 inch IPS LCD 1280*480 res.with high brightness automotive grade

    • Model Name: TST088HDHH-03
  • LCD Type: 8.8 inch TFT LCD display
  • Resolution: 1280*480
  • Viewing angle: IPS all viewing angle
  • Brightness: 1200 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +85℃



Description:



TST088HDHH-03 is 8.8 inch 1280*480 resolution LCD display with LVDS interface, standard brightness is 1200cd/m2. For this 8.8 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, outline size is 229.6x97.3x6.0mm. AA area is 209.28x78.48mm.Contrast is 1000:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 8.8 inch tft lcd is suitable used in Automotive grade application.



Specification
Part No. TST088HDHH-03, 8.8 inch lcd panel
Outline Dimension(mm) 229.6x97.35x6.2
Display Area(mm) 209.28x78.48
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Touch panel Available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,Transmissive, 8.88 inch TFT
Surface treatment Antiglare
Brightness
1200
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

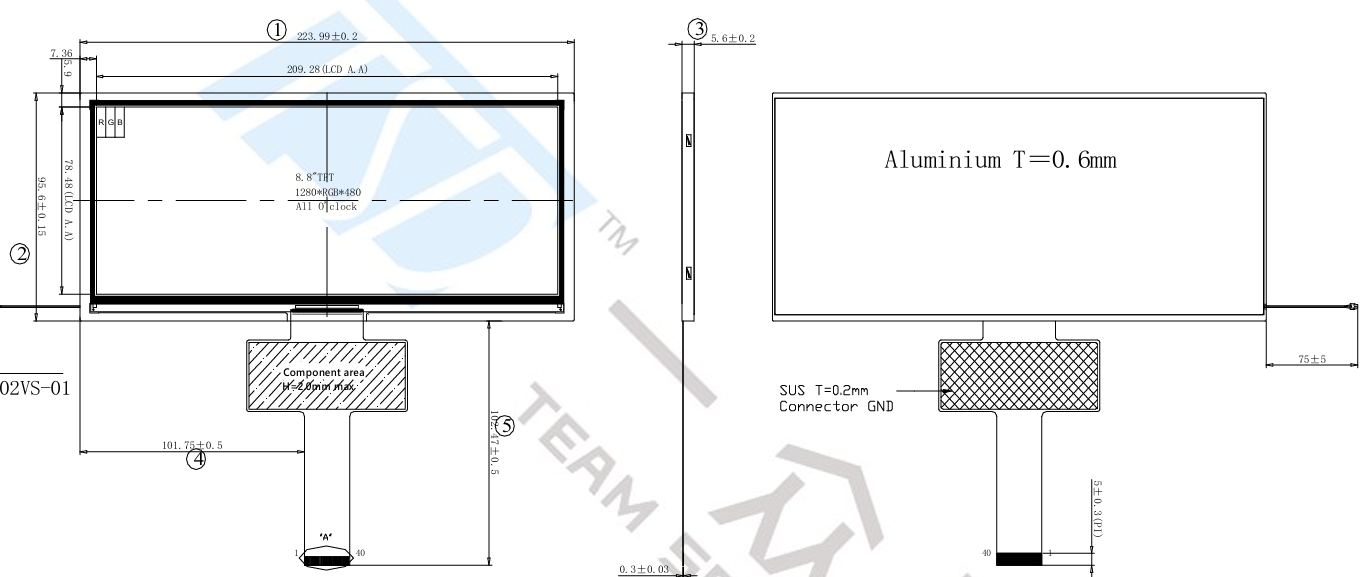

Drawing:

Interface Description:

Pin No.  Symbol Description
1 NC No connect
2-3 VDD Power voltage for digital circuit
4-6 NC Must open this pins
7 GND Ground
8 RXIN- Negative LVDS differential data input
9 RXIN+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1- Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential data input
18 RXCLKIN+ Positive LVDS differential data input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23-24 NC Noconnect
25 GND Powerground
26 NC Must open this pin
27 NC Must open this pin
28 SELB/NC No connect.Default 8bit
29 NC Noconnect
30 GND Ground
31-32 NC Noconnect
33 U/D UP/downselection
34 L/R Left/rightselection
35 NC Noconnect
36 Reset Globa lreset pin.Active low
37 Stbyb Standby mode setting pin,active low
38 NC Noconnect
39-40 NC No connect

Applications:

For our 8 inch LCD display TST088HDHH-03, it's widely using in industrail machine even some automotive grade application.

Product Features:

1. 8.8 inch 1280*480 res. with 40pins LVDS interface

2. IPS lcd : full viewing angle

3.high brightness up to 1200nits

4.Super wide working temp. -30 to +80

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
