TSD 1280x480 resolution 8.88 inch IPS LCD screen bar type with LVDS interface

  • Model Name: TST088HDBV-01
  • LCD Type: 8.8 inch TFT LCD display
  • Resolution: 1280*480
  • Viewing angle: IPS all viewing angle
  • Brightness: 400 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -40 ~ +85℃



Description:



TST088HDBV-01 is 8.8 inch 1280*480 resolution LCD display with LVDS interface, standard brightness is 400cd/m2. For this 8.8 inch TFT LCD module,   viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, outline size is 229.6x97.3x6.0mm. AA area is 209.28x78.48mm.Contrast is 1000:1. this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 8.8 inch tft lcd is suitable used in Automotive grade application.



Specification
Part No. TST088HDBV-01, 8.8 inch lcd panel
Outline Dimension(mm) 229.6x97.35x6.2
Display Area(mm) 209.28x78.48
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Touch panel Available to custom
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,Transmissive, 8.88 inch TFT
Surface treatment Antiglare
Brightness
400
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

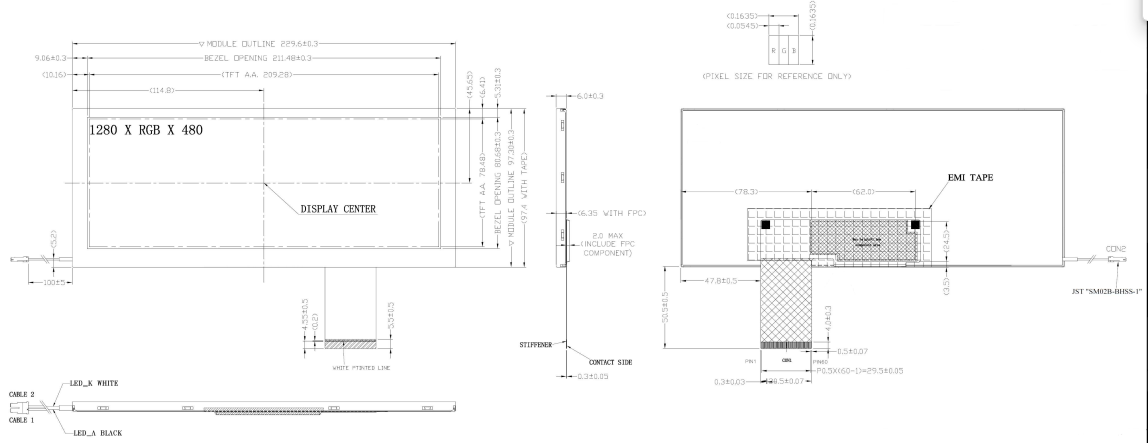

Drawing:

Interface Description:

Pin No.  Symbol I/0 Description
1 AGND P Analog Ground
2 NC - No connect
3 VDD P Power pin
4 GND P Ground
5 NC - Power pin
6 VDD P Standby Pin
7 GND P Ground
8-14 NC - No connect
15 GND P Ground
16 VDD_LVDS P LVDS Power pin
17 GND P Ground
18 PIND3 I LVDS Data channel 3 +
19 NIND3 I LVDS Data channel 3 -
20 GND P Ground
21 PINC I LVDS Clock channel +
22 NINC I LVDS Clock channel +
23 GND P Ground
24 PIND2 I LVDS Data channel 2 +
25 NIND2 I LVDS Data channel 2 -
26 GND P Ground
27 PIND1 I LVDS Data channel 1 +
28 NIND1 I LVDS Data channel 1 -
29 GND P Ground
30 PIND0 I LVDS Data channel 0 +
31 NIND0 I LVDS Data channel 0 -
32 GND P Ground
33 GND LVDS P Ground of LVDS
34 RESET I Reset Pin
35 STBYB I Standby Pin
36 SHLR I Horizontal shift direction selection
37 VDD P Power pin
38 UPDN I Vertical shift direction selection
39 AGND P Analog Ground
40-42 NC - No connect
43 GND P Ground
44 VDD P Power pin
45 GND P Ground
46-52 NC - No connect
53 GND P Ground
54 VDD P Power pin
55 SELB I 8/6 bit mode slection
56 NC - No connect
57 VDD I Power pin
58 NC - No connect
59 GND P Ground
60 NC - No connect

Applications:

For our 8 inch LCD display TST088HDBV-01, it's widely using in industrail machine even some automotive grade application.

Product Features:

1. 8.8 inch 1280*480 res. with 60pins LVDS interface

2. IPS lcd : full viewing angle

3.high brightness up to 400nits

4.Super wide working temp. -30 to +80

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
