TSD 4 inch Round tft LCD display with 720x720 resolution and FL7707N IC



  • Model Name: TST040HDBY-41
  • LCD Type: 4 inch IPS TFT display
  • Resolution: 720x720
  • Viewing angle: All o'clock
  • Brightness: 300 cd/m2
  • Driver IC: FL7707N
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +60℃









Description:



TST040HDBY-41 is 4 inch 720x720 resolution tft ips lcd display screen module with MIPI interface. It's round tft display with good performance. LCD driver IC is FL7707N. LCD type is 4.0 inch TFT, transmissive, normally black. Viewing direction is all o'clock, operating voltage is 2.8V. This 4 inch tft lcd module is consumer grade, operating temperature is -10 ~ +60°C, storage temperature is -20 ~ +70°C. Except for this design, TSD also have the other model which is with wider temperature range, automotive grade display.

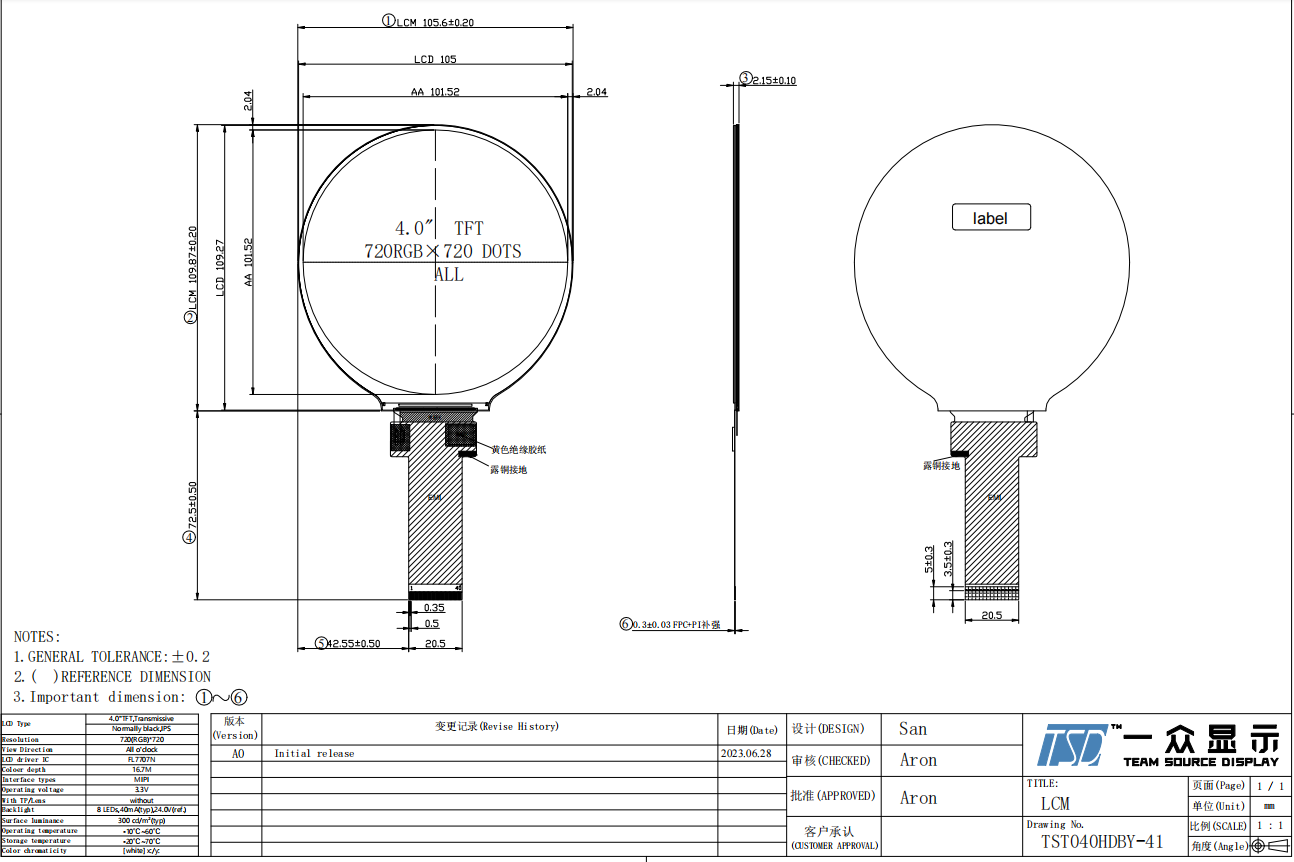

Drawing:




Specifications:



General Specification
Part No.  TST040HDBY-01
Outline Dimension for Backlight(mm)

105.6(W)x109.87(H)x2.15(D)

Outline dimension for LCD(mm) 101.52(W) x 101.52(H)
Resolution(dots) 720x (RGB) × 720
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 720RGB(H)xRGBx720(V)
Touch panel  without
Driver IC FL7707N
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 4 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-50,000




Features:



LCD Size: 4.0''(Normal, IPS). Brightness can be designed per customer's needs

FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material

LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution

Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 30K hours

Customized CTP 0.96-50 inch: Slide, Single-touch in-cell, on-cell, G+G, G+F, G+F+F  industry or automotive CTP solutions with OCA, OCR optical bonding




Applications:



For TSD round tft display, it's widely using in many applications, such as :

  • Industrial automation
  • Electric power, telecommunications
  • Environmental protection
  • Medical care
  • Finance
  • Chemical industry
  • Transportation
  • Energy
  • Smart home appliances
  • Charging piles
  • National defenser
  • Shared equipment and other industries and fields.
