Description:

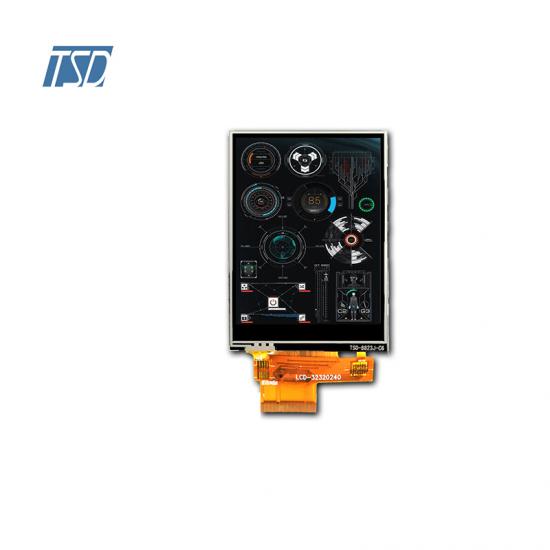

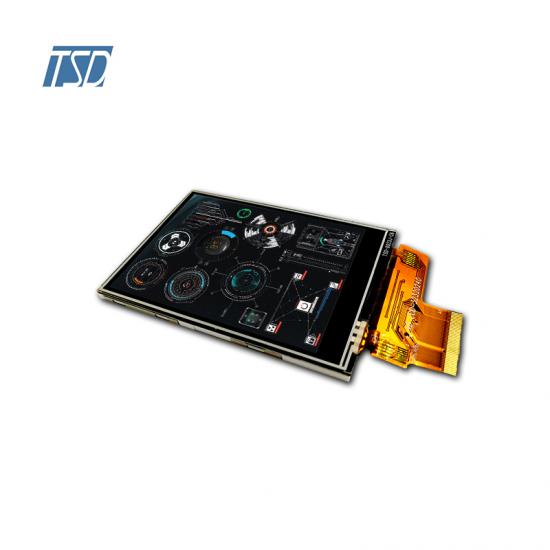

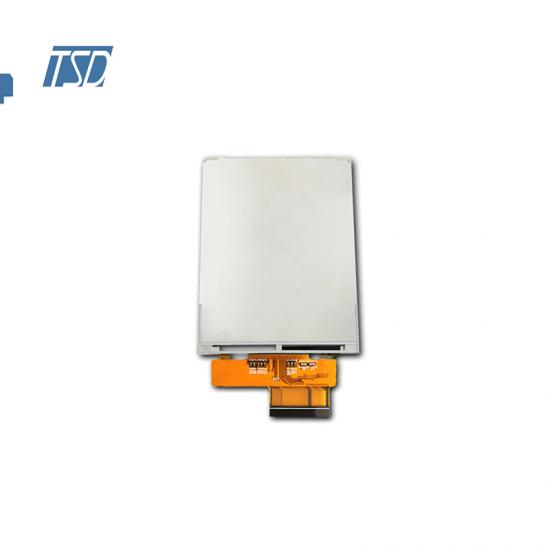

TST32QV08B is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 48.6*64.8 and the native resolution is 240*320. feathers of this product are listed in the following table

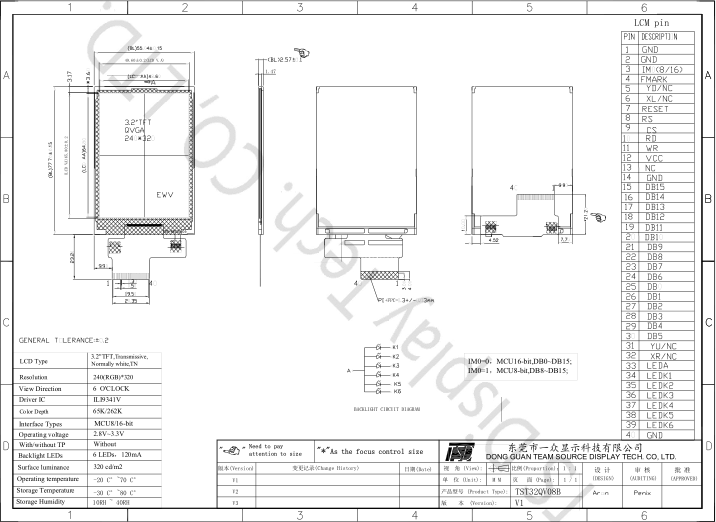

Drawing:
Specification
|
General Specification |
||
|
Part No. |
TST32QV08B |
|
|
Display Size(Diagonal) |
3.2 inch |
|
|
LCD type |
TFT,Transflective,Normally white |
|
|
Resolution |
240*320 |
|
|
View Direction |
6 o’clock |
|
|
Module Outline |
55*77*2.57 |
|
|
Active Area |
48.6*64.8 |
|
|
Viewing Area |
6 o’clock |
|
|
Backlight |
LED |
|
|
Driver IC |
ILI9341V |
|
|
Interface |
MCU |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Operating Temperature |
-20～70 |
|
|
Storage Temperature |
-30～80 |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
GND |
System Ground. (0V) |
|
2 |
GND |
System Ground. (0V) |
|
3 |
IM0 |
IM0=0: MCU16-BIT, DB0~DB15 IM0=1: MCU8-BIT, DB8~DB15 |
|
4 |
FMARK |
Tearing Effect output signal |
|
5 |
YD |
The touch panel Y Down pin |
|
6 |
XL |
The touch panel X Left pin |
|
7 |
RESET |
Reset input signal |
|
8 |
RS |
Data/Command Selection pin |
|
9 |
CS |
Chip select pin,if not use, please open it |
|
10 |
RD |
read signal |
|
11 |
WR |
Serves as a write signal |
|
12 |
VCC |
Power supply +2.8V |
|
13 |
NC |
- |
|
14 |
GND |
System Ground. (0V) |
|
15~24 |
DB15~DB6 |
Data BUS |
|
25~30 |
DB0~DB5 |
Data BUS |
|
31 |
YU |
The touch panel Y Up pin |
|
32 |
XR |
The touch panel X Right pin |
|
33 |
LEDA |
Backlight A Aothod input pin. |
|
34~39 |
LEDK1~LEDK6 |
Backlight K Cathode input pin. |
|
40 |
GND |
System Ground. (0V) |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
