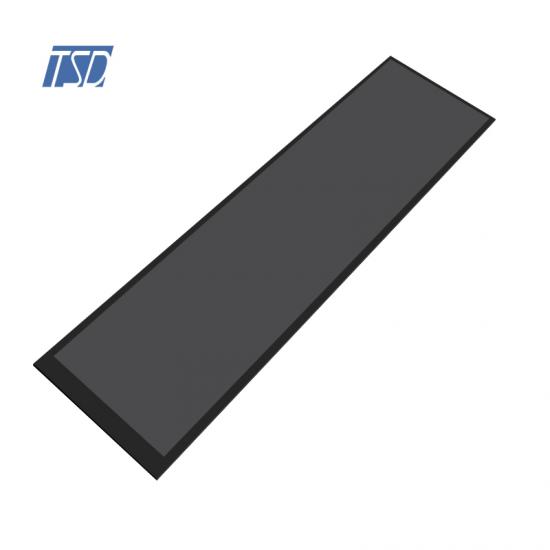

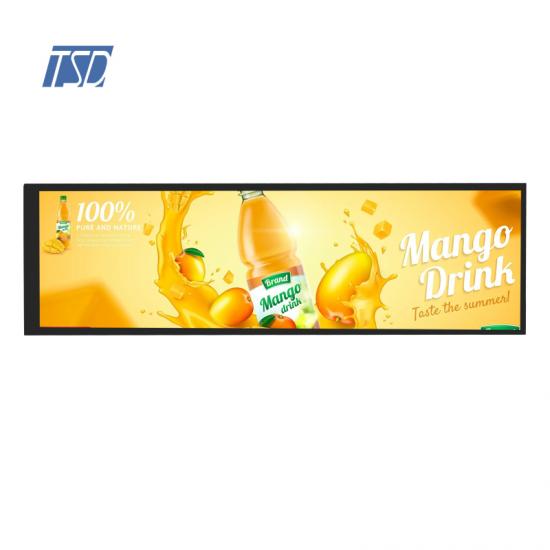

TSD 8.8 inch tft automotive lcd display 1280*480 with free viewing direction

  • Model Name: TST088HDBV-01
  • LCD Type: 8.8 inch TFT LCD display
  • Resolution: 1280x480
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +80℃





Description:



TST088HDBV-01 is the 8:3, landscape, normally black, ADS, transmissive, amorphous Silicon TFT LCD module. Interface type is LVDS, typ.brightness is 400 cd/m2. It's a color active matrix TFT LCD module using amorphous silicon TFT's (ThinFilm Transistors)as an active switching devices. Outline dimension of the LCD module is 229.6(H)X97.3(V)X6.0(T) mm, active area is 209.28(H)X78.48 (V) mm. This is a bar type TFT display, support display 16.7M colors.

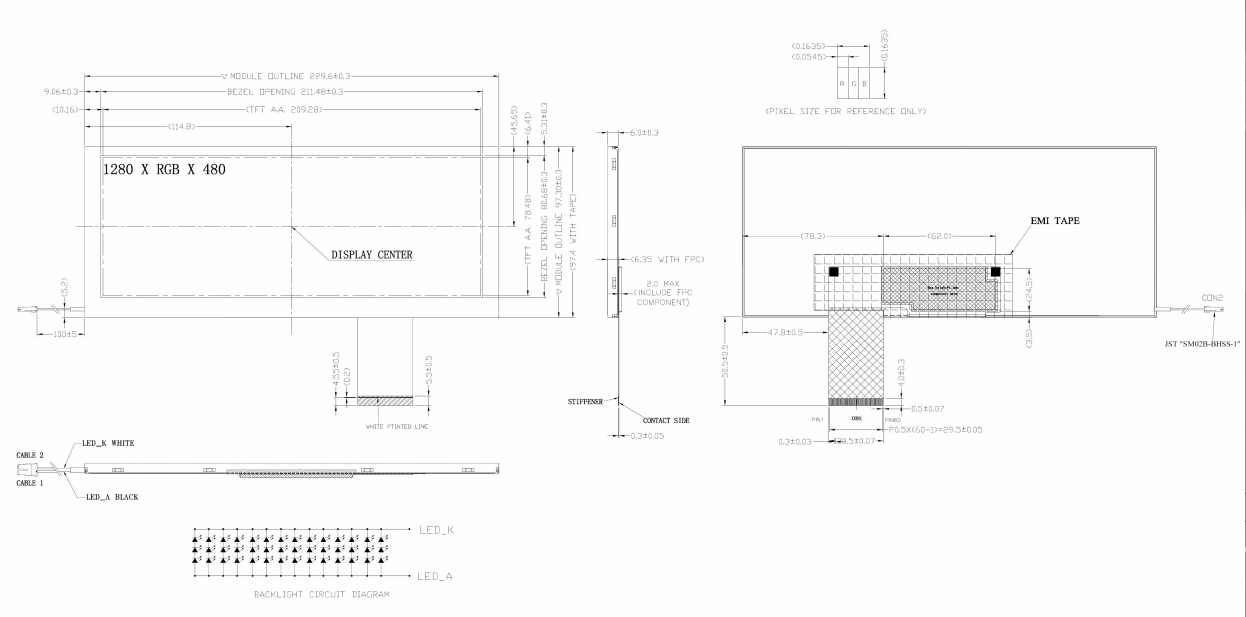

Drawing:




Specifications:



General Specification
Part No.  TST088HDBV-01
Outline Dimension(mm)  229.6(H)X97.3(V)X6.0(T) mm
Active Area(mm) 209.28(H)X78.48 (V) mm
Resolution(dots) 1280x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1280(H)xRGBx480(V)
Touch panel  without
Brightness 400 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 8.8 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 AGND Analog Ground
2 NC No connection
3 VDD Power pin
4 GND Ground
5 NC No connection

6

VDD Power pin
7 GND Ground
8 NC No connection
9 NC No connection
10 NC No connection
11 NC No connection
12 NC No connection
13 NC No connection
14 NC No connection
15 GND Ground
16 VDD_LVDS LVDS Power
17 GND Ground
18 PIND3 LVDS Data channel 3 +
19 NIND3 LVDS Data channel 3 -
20 GND Ground
21 PINC LVDS Clock channel +
22 NINC LVDS Clock channel -
23 GND Ground
24 PIND2 LVDS Data channel 2 +
25 NIND2 LVDS Data channel 2 -
26 GND Ground
27 PIND1 LVDS Data channel 1 +
28 NIND1 LVDS Data channel 1 -
29 GND Ground
30 PIND0
LVDS Data channel 0 +
31 NIND0
LVDS Data channel 0 -
32 GND
Ground
33 GND_LVDS
Ground of LVDS
34 RESET
RESET PIN
35 STBYB
Standby pin
36 SHLR
Horizontal shift direction selection
37 VDD
Power pin
38 UPDN
Vertical shift direction selection
39 AGND
Analog Ground
40 NC
No connection
41 NC
No connection
42 NC
No connection
43 GND
Ground
44 VDD
Power pin
45 GND
Ground
46 NC No connection
47 NC
No connection
48 NC
No connection
49 NC
No connection
50 NC
No connection
51 NC
No connection
52 NC
No connection
53 GND
Ground
54 VDD Power pin
55 SELB
8/6 bit mode slection
56 NC
No connection
57 VDD
Power pin
58 NC
No connection
59 GND
Ground
60 NC
No connection




Features:

• Display Resolution: 1280 x RGB x 480

• Wide viewing angle (U/D/L/R): Free viewing direction

• Display up to 16.7M colours

• 24-bit single port LVDS interface (with T-CON)

• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.

• White LED backlight

• “RoHS” compliance.
