TSD 40x2 dots character lcd module



  • Model Name:TSM4002-001
  • LCD Type: 40*2 dots lcd
  • Resolution: 40*2
  • Viewing angle: 6H
  • Driver IC: AIP31066
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM4002-001 is a 40*2 dots dot-matrix LCD module. It has a STN panel composed of 20segments and 4 commons. The LCM can be easily accessed by microcontroller via SPI interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 40 character x 2 lines
Item 40x2 character lcd module
Display type Negative,Transmissive
Plolarize mode Negative,Transmissive
Operating voltage 3.3v
Outline 182.0x33.5x13.5max
View Area 153x17mm
Active Area 147.5x11.5mm
Character size 3.2x5.55
Character pitch 3.7x5.95
Dot size 0.6x0.65
Dot pitch 0.65x0.7
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C
Backlight color White LED

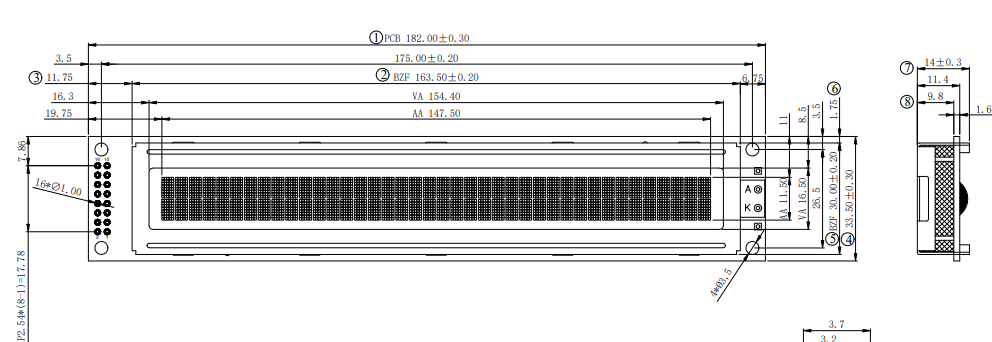

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD 5V
3 V0
4 RS
5 RW
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LED-A 5V
16 LEDK



Applications:

For our 4002 dots character lcd TSM4002-001 , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.4002 dots lcd with 16 pins

2. 5v working Voltage

3.AIP31066L IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome
