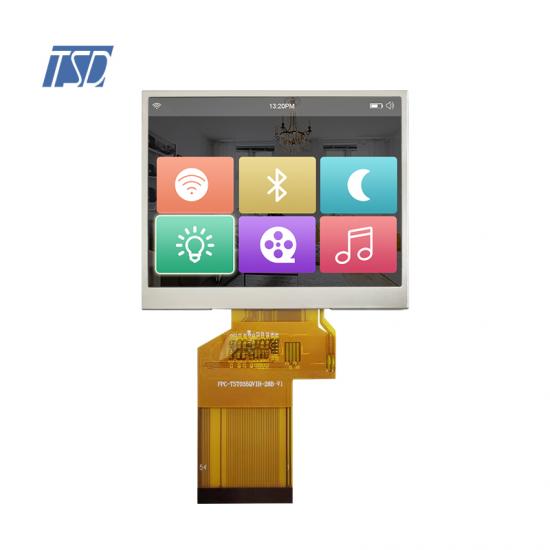

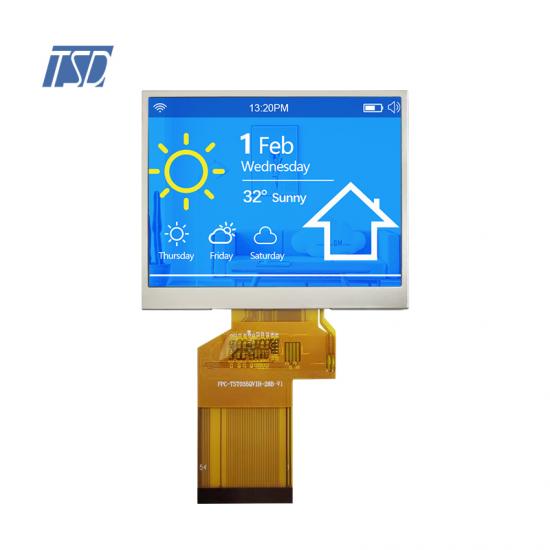

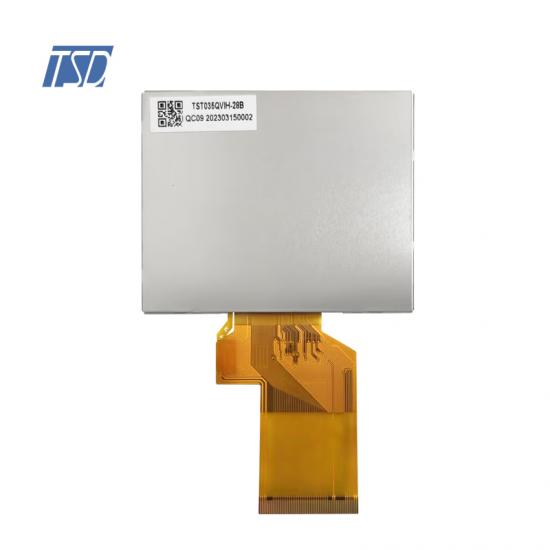

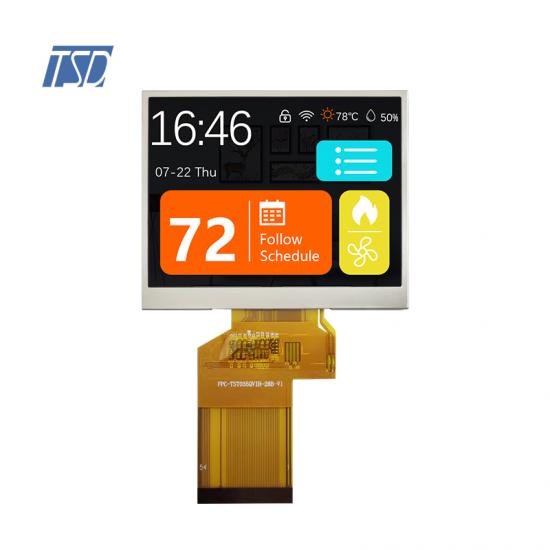

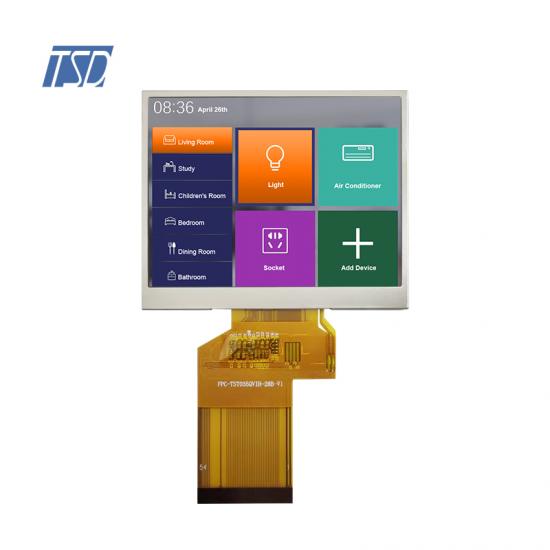

3.5 inch 320x240 resolution TN color display with HX8238-D

Specification
Part No.	TST035QVIH-28B
Outline Dimension(mm)	76.9mm x63.9mm x3.27mm
Active Area(mm)	70.08mmx52.56mm
Resolution(dots)	320x240
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	320RGB(H)xRGBx240(V)
Touch panel	without
Driver IC	HX8238-D
Pixel arrangement	RGB Vertical stripe
Display mode	Normal white,TN 3.5 inch TFT
Surface treatment	Antiglare
View direction	ALL
Weight(g)	TBD
Power Consumption(w)	Panel	TBD
	B/L system	TBD
Interface	RGB24-bit
Module lifetime(Hours)	50,000-100,000
