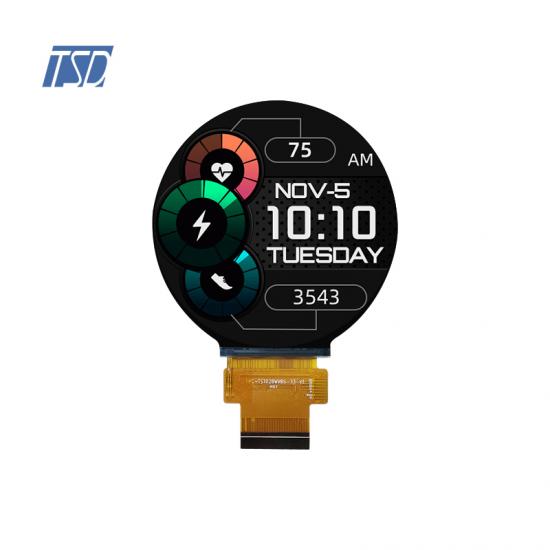

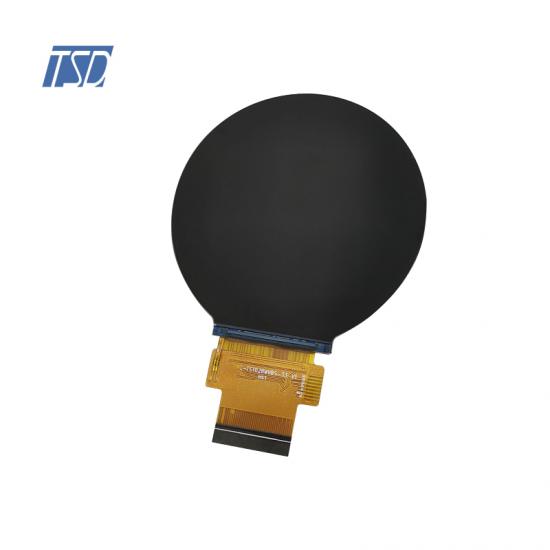

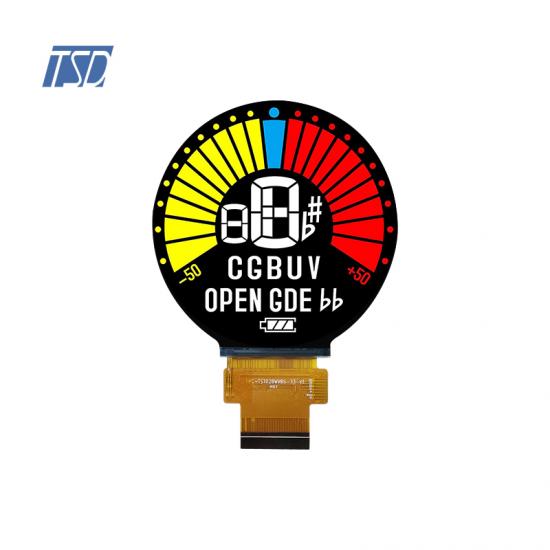

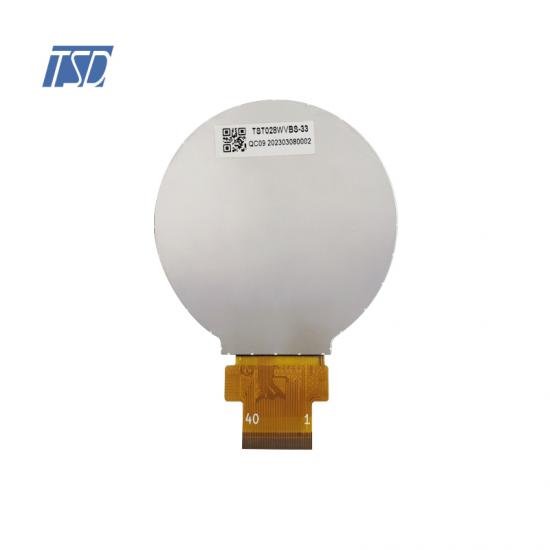

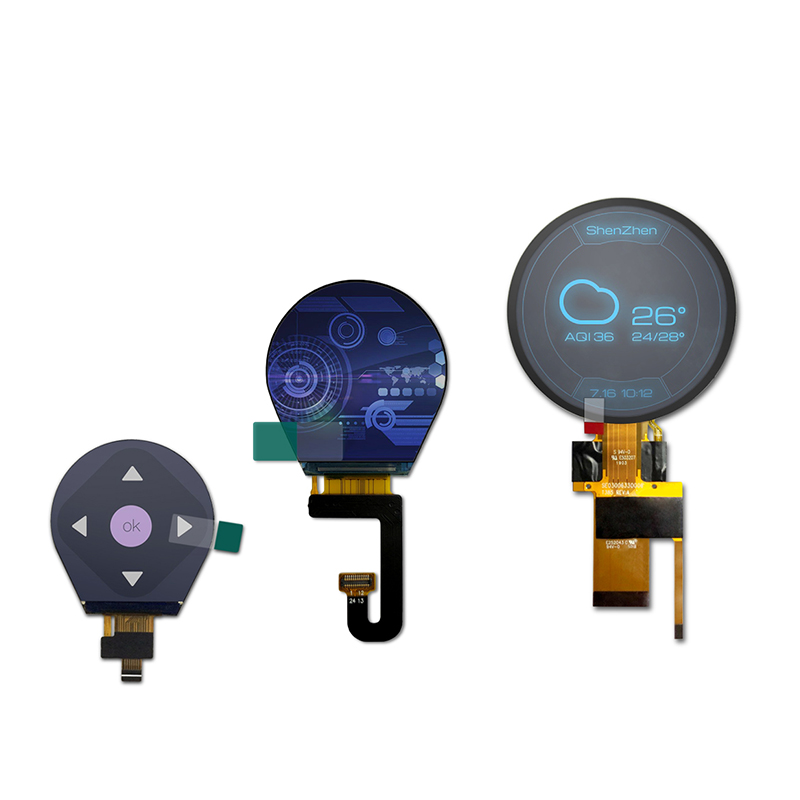

TSD IPS 2.8 inch Round 480x480 resolution 300 nits SPI+RGB interface TFT lcd display module



  • Model Name: TST028WVBS-33
  • LCD Type: 2.8 inch IPS TFT display
  • Resolution: 480x480
  • Viewing angle: All o'clock
  • Brightness: 300 cd/m2
  • Driver IC: ST7701S
  • Interface: SPI+RGB
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:



TST028WVBS-33 is 2.8 inch 480x480 resolution round tft lcd display with SPI+RGB interface, also called 2.76 inch TFT display module. Surface luminace is 250~300 cd/m2, backlight LEDs is 4pcs LED, 80mA, 3V. Operating voltage for LCD is 2.8V~3.3V. This 2.8 inch round tft lcd modules was drived by ST7701S chip. Touch screen is available to make the customization. LCD oultine size is 73.03x76.48x2.28mm, active area is 70.13x70.13mm, with square pixel.

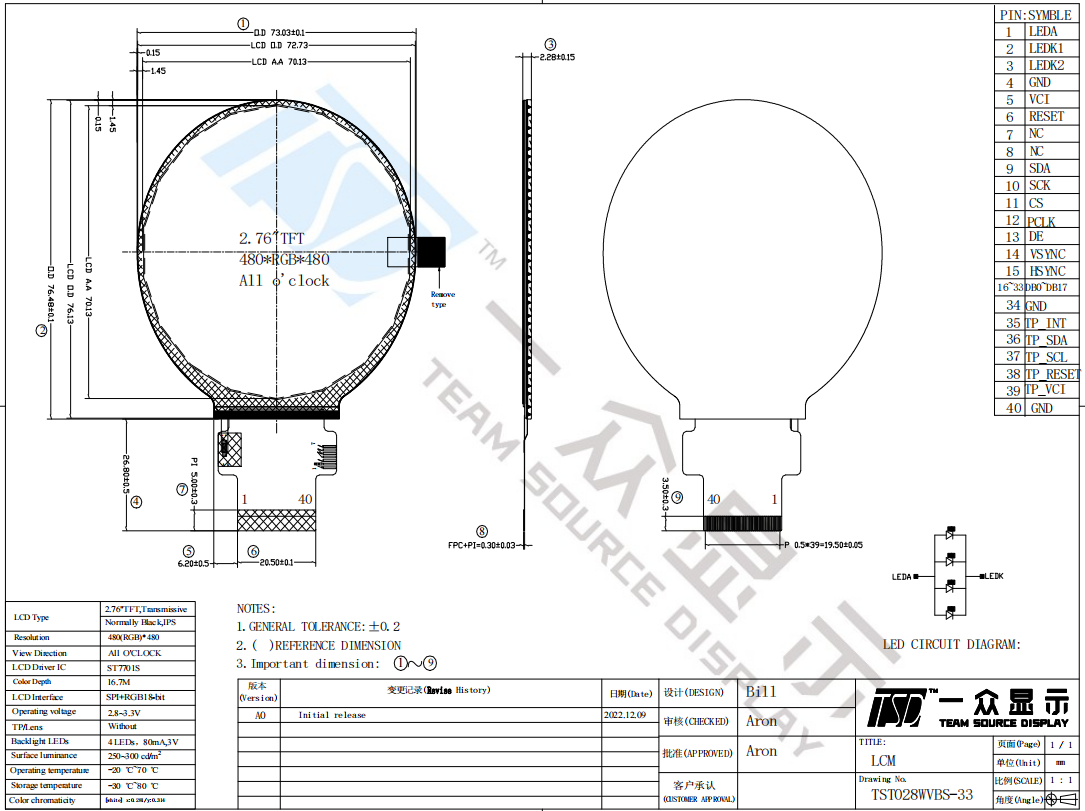

Drawing:




Specifications:



General Specification
Part No.  TST028WVBS-33
Outline Dimension(mm)

73.03(W)x76.48(H)x2.28(D)

Active Area(mm) 70.13(W) x 70.13(H)
Resolution(dots) 480x (RGB) × 480
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480RGB(H)xRGBx480(V)
Touch panel  without
Driver IC ST7701S
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 2.8 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface SPI+RGB
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDA BackliBacklight A Aothod input pin.
2 LEDK1 Backlight K Cathode input pin.
3 LEDK2 Backlight K Cathode input pin.
4 GND System Ground (0V)
5 VCI Power supply +2.8V
6 RESRT RESET input signal
7 NC No connect
8 NC No connect
9 SDA Serial data input/output signal
10 SCK Serial clock signal
11 CS Chip select signal.
12 PCLK
Dot clock signal
13 DE A data ENABLE input signal
14 VSYNC Line synchronizing signal
15 HSYNC Frame synchronizing signal
16~33 DBO~DB17 Data pins
34 GND System Ground (0V)
35 LEDA Backlight anode input pin.
36 TP_INT/NC CTP interrupt sianal output pin
37 TP_SDA/NC
CTPdata input/ouput pin
38 TP_SCL/NC
CTPclock input pin
39 TP_VCI/NC
CTP Power supply
40 GND System Ground (0V)






Features:


LCD Size: 2.8''(Normal, IPS). Brightness can be designed per customer's needs

FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material

LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution

Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 30K hours high brightness up to 300 nits

Customized CTP 0.96-50 inch: Single-touch in-cell, on-cell, G+G, G+F, G+F+F solutions with OCA, OCR optical bonding
