TSD 2.8 inch 480x480 resolution circule tft lcd display with wide temperature



  • Model Name: TST028WVBS-S64
  • LCD Type: 2.8 inch IPS TFT display
  • Resolution: 480x480
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST7701SI
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -30 ~ +85℃

Description:



TST028WVBS-64 is 2.8 inch 480x480 resolution round tft lcd display with MIPI interface, surface luminace is 1000 cd/m2 high btightness. Operating voltage for LCD is 2.8V~3.3V. This 2.8 inch round tft lcd modules was drived by ST7701SI chip. Operating temperature is -30 to 85℃, suitable for the automotive application. Touch screen is available to make the customization.

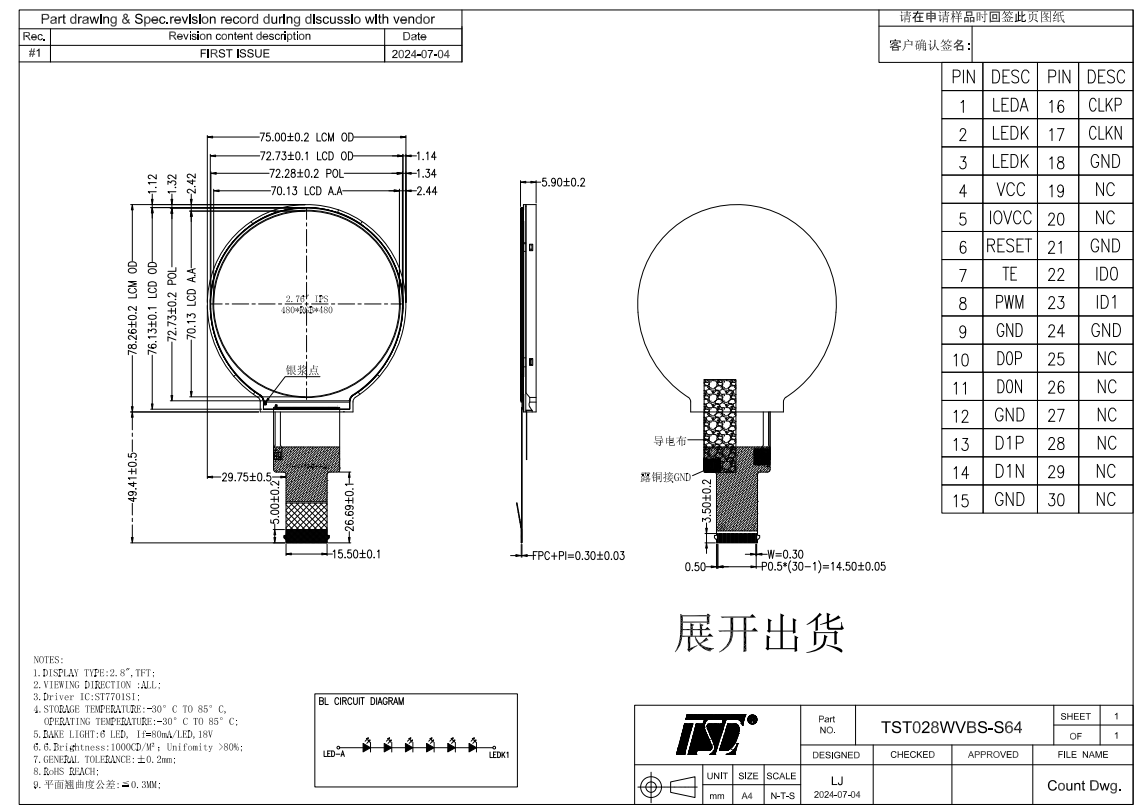

Drawing:



2.8 inch round lcd


Specifications:



General Specification
Part No.  TST028WVBS-S64
Outline Dimension(mm)

75(W)x78.26(H)x5.9(D)

Active Area(mm) 70.13(W) x 70.13(H)
Resolution(dots) 480x (RGB) × 480
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480RGB(H)xRGBx480(V)
Touch panel  without
Driver IC ST7701SI
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 2.8 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 LEDA BackliBacklight A Aothod input pin.
2 LEDK Backlight K Cathode input pin.
3 LEDK Backlight K Cathode input pin.
4 VCC Power supply +2.8V
5 IOVCC Power supply +2.8V
6 RESRT RESET input signal
7 TE Tearing Effect output signal
8 PWM Backlight adjustment
9 GND Ground
10 D0P MIPI data positive input
11 D0N MIPI data negative input
12 GND
Ground
13 D1P MIPI data positive input
14 D1N MIPI data negative input
15 GND Ground
16 CLKP MIPI postive clock input
17 CLKN MIPI negative clock input
18 GND Ground
19 NC No connection
20 NC
No connection
21 GND
Ground
22 ID0
ID0
23 ID1 ID1
24 GND Ground
25 NC No connection
26 NC No connection
27 NC No connection
28 NC No connection
29 NC No connection
30 NC No connection






Features:


LCD Size: 2.8''(Normal, IPS). Brightness can be designed per customer's needs

FPC Design: Customized Interface and Pins definition/Customized FPC Shape and Material

LCD Viewing Angle: Full range of IPS LCD Options Super-wide viewing angle Glare or Anti-glare Polarizer O-film solution

Backlight(BL) design: Customized Outline Dimension BL Frame Material: Meta/Plastic/Metal & Plastic integrated/Lifetime up to 30K hours high brightness up to 300 nits

Customized CTP 0.96-50 inch: Single-touch in-cell, on-cell, G+G, G+F, G+F+F solutions with OCA, OCR optical bonding
