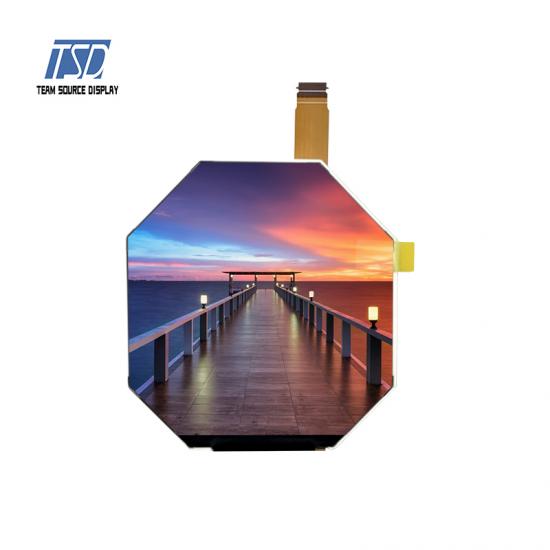

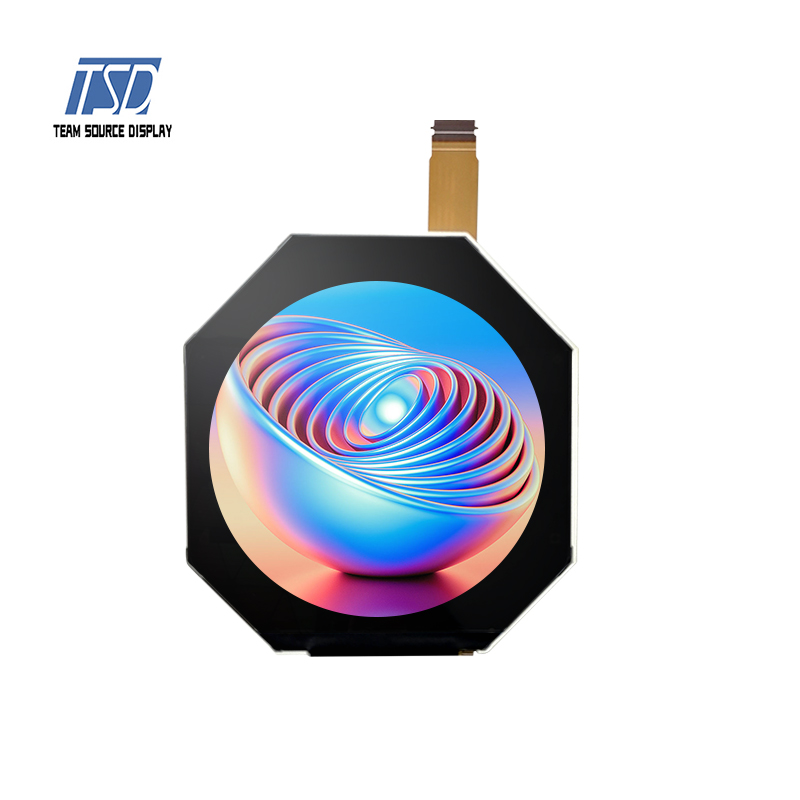

TSD 2.47 inch 480x480 MIPI lcd display

  • Model Name: TST025WVBH-01
  • LCD Type: 2.47 inch TFT LCD display
  • Resolution: 480x480
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Driver IC: HX8379-C
  • Interface: MIPI interface
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -10 ~ +60℃
  • Storage Temperature: -20 ~ +70℃

Description:



TST025WVBH-01 is a 2.47 inch tft lcd module in 480x480 resolution, it is MIPI interface in 35 pins, and could be customed for other pinout. Brightness is 400 nits. It is suitable for indoor application, such as thermostat control display, hybrid recorders, temperature measurement device etc. Backlight current is 36mA and backlight voltage is 9.6V, which could be customized. This 2.47 inch TFT LCD module is designed with HX8379-C, viewing direction is all o'clock, color depth is 16.7M, white backlight and transmissive type.

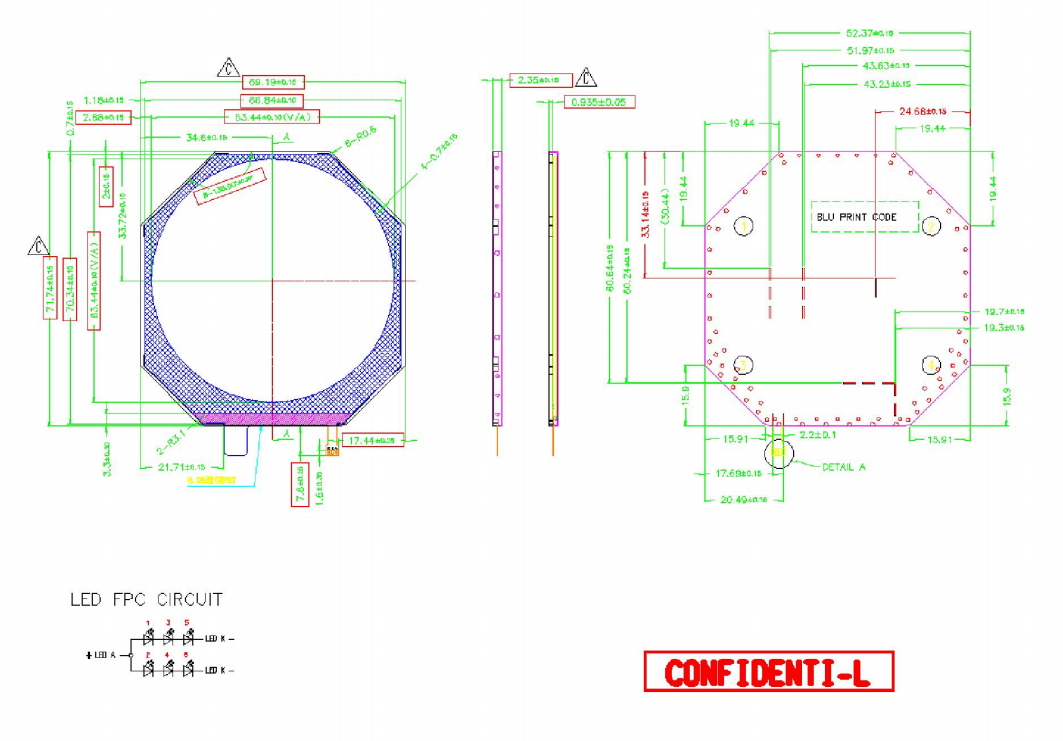

Drawing:




Specifications:



General Specification
Part No.  TST025WVBH-01
Outline Dimension(mm)

69.19x71.74x2.45

Active Area(mm) 62.64x62.64
Resolution(dots) 480x480
Operating temperature(°C) -10 ~ +60°C
Storage temperature(°C) -20 ~ +70°C
Number of Pixel(pixels) 480(H)xRGBx480(V)
Touch panel  w/o CTP
Driver IC HX8379-C
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 2.47 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 GND Ground
2 DSI_D1P MIPI DSI: Data differential signal input pins. (Data lane 1 positive)
3 NC No connect
4 DSI_D1N MIPI DSI: Data differential signal input pin. (Data lane 1 negative)
4 GND Ground
6 GND Ground
7 GND
Ground
8 DSI_CP MIPI DSI: clock differential signal input pins. (Clock lane positive)
9 NC No connect
10 DSI_CN MIPI DSI: clock differential signal input pins. (Clock lane negative)
11 GND Ground
12 GND Ground
13 GND Ground
14 DSI_D0P MIPI DSI: Data differential signal input pins. (Data lane 0 positive)
15 NC No connect
16 DSI_D0N MIPI DSI: Data differential signal input pins. (Data lane 0 negative)
17 GND Ground
18 GND Ground
19 ID0 Display ID0 (0V/1.8V) - Add pull up/down resistor
20 ID1 Display ID1 (0V/1.8V) - Add pull up/down resistor
21 RST Display reset
22 NC Vendor to use as OTP
23 THERM Thermistor Readout
24 IOVCC 1.8V, power supply for logic and I/O circuits
25 GND Ground to avoid power supply noise interface
26 VCI Power supply for analog circuits
27 VCI Power supply for analog circuit
28 GND Ground to avoid power supply noise interface
29 LED1- Power supply for LED1-
30 LED2- Power supply for LED2-
31 NC No connect
32 LED+ Power supply for LED+
33 LED+ Power supply for LED+
34 NC No connect
35 GND Ground




Applications:



This small round lcd display is suitable for thermostat control display, hybrid recorders, temperature measurement device.




Product Features:



TST025WVBH-01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switcing devices. This model is composed of a TFT-LCD panel, a driving circuit and a backlight system. It is a transmissive Type display operating in the normal back. This TFT-LCD has a 2.47 inch diagonally measured active area with Z6 resolutions (480 horizontal by 480 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 16.7M colors.
