TSD 1366×768 resolution 18.5 inch IPS tft lcd display module with LVDS interface

  • Model Name: TST185HDCM-L22
  • LCD Type: 18.5 inch TFT LCD display
  • Resolution: 1366*768
  • Viewing angle: IPS all viewing angle
  • Brightness: 250 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -0 ~ +50℃
  • Storage Temperature: -10 ~ +60℃



Description:

TSD TFT item number TST185HDCM-L22 is 18.5 inch, IPS TFT LCD, 1366*768 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
Part No. 18.5 inch IPS TFT
Outline Dimension(mm) 430.37x254.60x10.50
Active Area(mm) 409.80X230.40
Operating temperature(°C) -0 to 50
Storage temperature(°C) -20 to 60
Resolution(dots) 1366*768
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 19 inch TFT
Brightness 250 nits
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

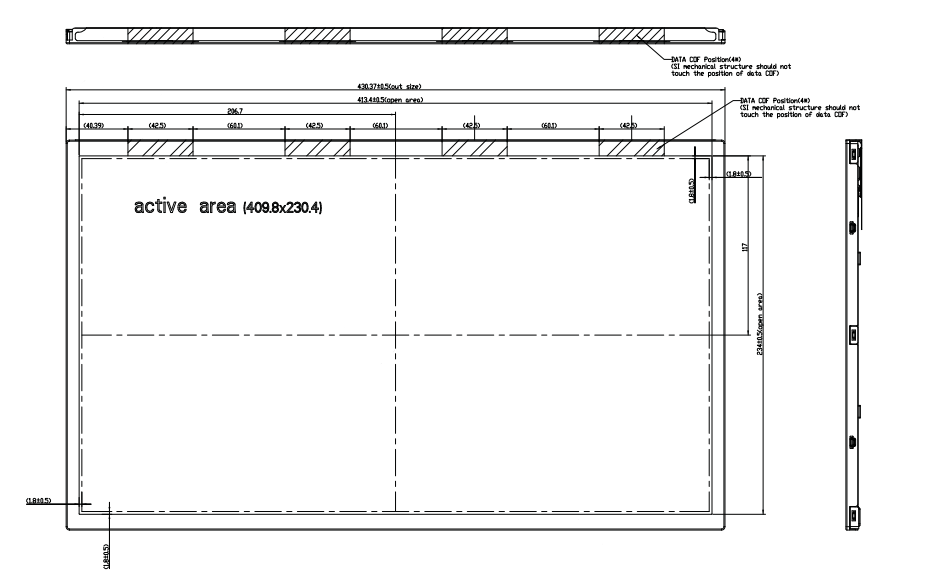

Drawing:

Interface Description:

Pin No.  Symbol Description
1 NC Not connection, this pin should be open
2 NC Not connection, this pin should be open
3 NC Not connection, this pin should be open
4 GND Ground
5 RX0- Negative LVDS differential data input. Channel 0 (odd)
6 RX0+

Positive LVDS differential data input. Channel 0 (odd)

7 GND Power Ground
8 RX1- Negative LVDS differential data input. Channel 1 (odd)
9 RX1+ Positive LVDS differential data input. Channel 1 (odd)
10 GND Power Ground
11 RX2- Negative LVDS differential data input. Channel 2 (odd)
12 RX2+ Positive LVDS differential data input. Channel 2 (odd)
13 GND Power Ground
14 RXCLK- Negative LVDS differential clock input. (odd)
15 RXCLK+ Positive LVDS differential clock input. (odd)
16 GND Ground
17 RX3- Negative LVDS differential data input. Channel 3 (odd)
18 RX3+ Positive LVDS differential data input. Channel 3 (odd)
19 GND Ground
20 NC For LCD internal use only, Do not connect
21 NC For LCD internal use only, Do not connect
22 NC For LCD internal use only, Do not connect
23 GND Ground
24 GND Ground
25 GND Ground
26 Vcc +5.0V power supply
27 Vcc +5.0V power supply
28-30 Vcc +5.0V power supply

Applications:



For our 18.5 inch LCD display TST185HDCM-L22, it's widely using in advertising machine.

Product Features:

1.18.5 inch 1366*768 res. with 30 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
