Description:

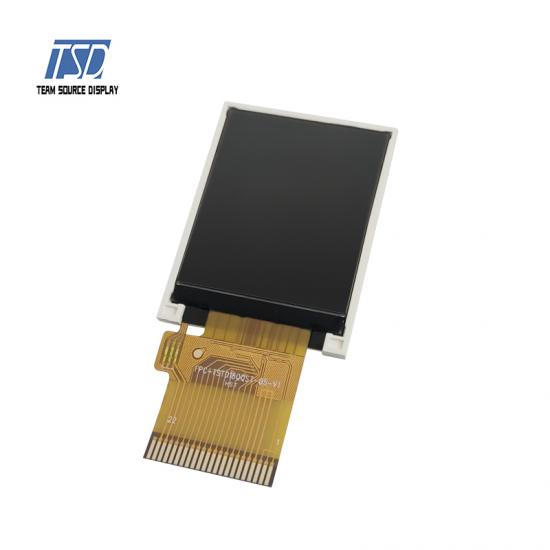

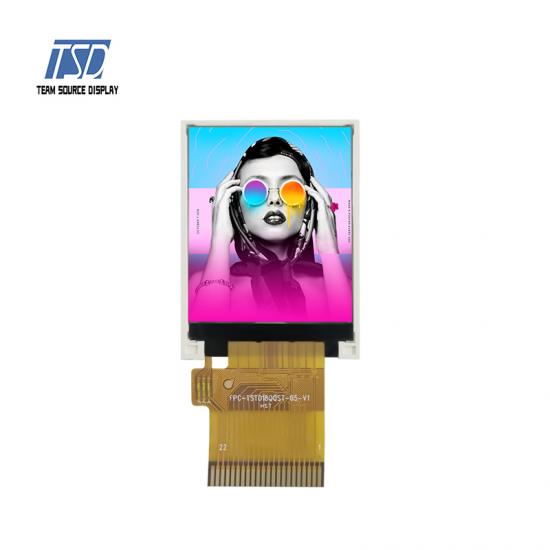

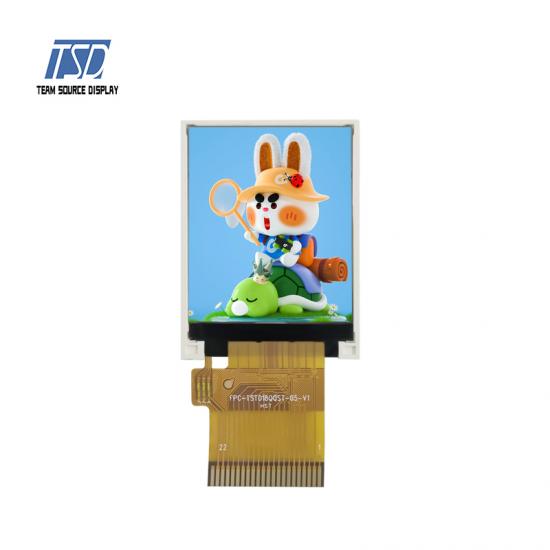

TST018QQST-05 is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 28.03*35.04 measurement on the diagonal, with an active resolution of 128*rgb*160. This 1.77 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

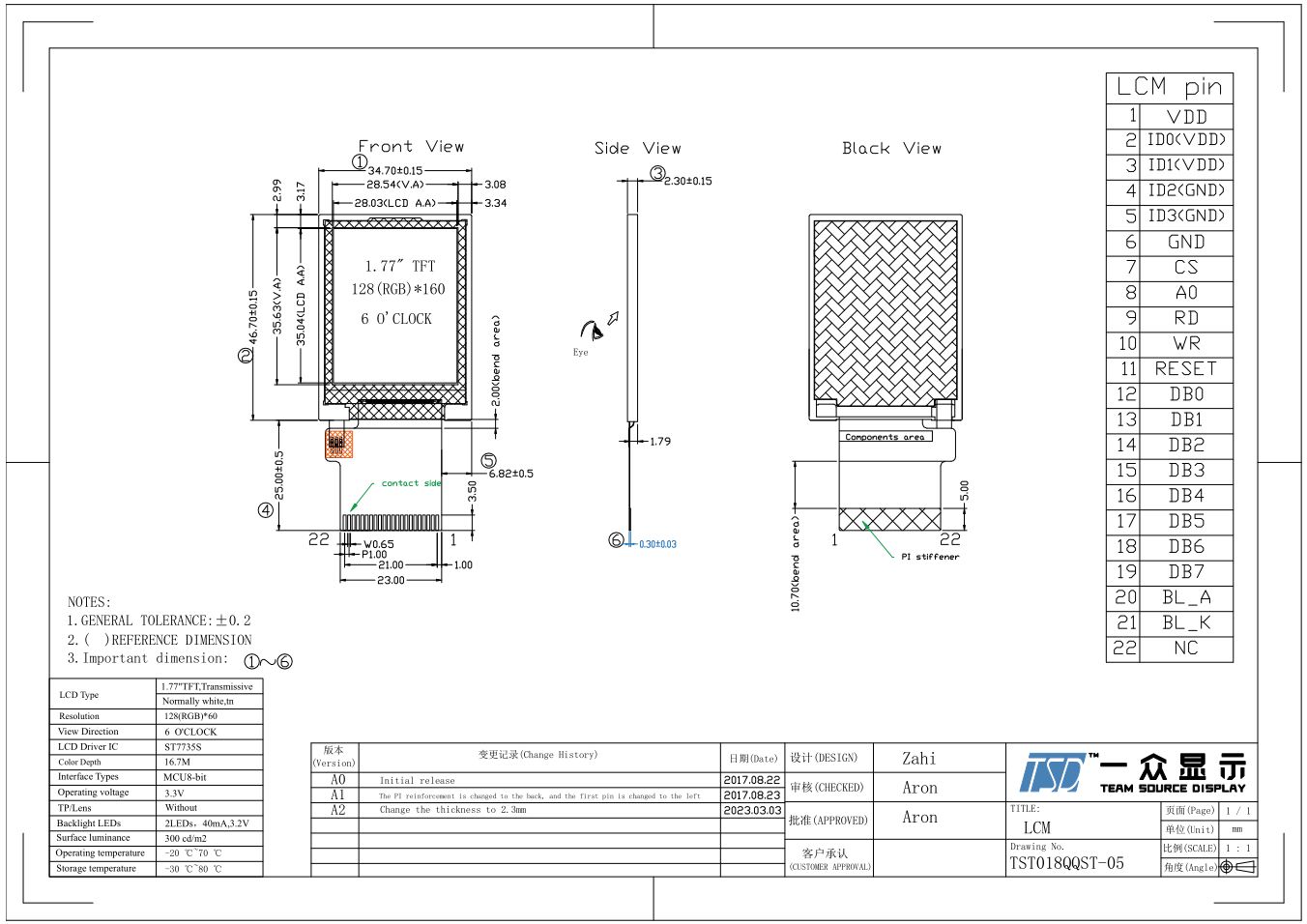

Drawing:
Specifications:
|
General Specification |
||
|
Part No. |
TST018QQST-05 |
|
|
Outline Dimension(mm) |
34.70x46.70x2.55 |
|
|
Active Area(mm) |
28.03x35.04 |
|
|
Resolution(dots) |
128xRGBx160 |
|
|
Operating temperature(°C) |
-20 ~ +70°C |
|
|
Storage temperature(°C) |
-30 ~ +80°C |
|
|
Number of Pixel(pixels) |
320RGB(H)xRGBx480V) |
|
|
Touch panel |
CTP |
|
|
Driver IC |
ST7735S |
|
|
Pixel arrangement |
RGB-stripe |
|
|
Display mode |
Normal white,TN, 3.5 inch TFT |
|
|
Surface treatment |
Antiglare |
|
|
View direction |
6 o'clock |
|
|
Weight(g) |
TBD |
|
|
Power Consumption(w) |
Panel |
TBD(Typ.) |
|
B/L system |
TBD(Typ.) |
|
|
Interface |
MCU |
|
|
Backlight LED |
2 LEDs ， 40mA,3.2V |
|
|
Pins Description |
||
|
Pin No. |
Symbol |
Description |
|
1 |
VDD |
Power supply for digital voltage |
|
2 |
VDD |
Power supply for digital voltage |
|
3 |
VDD |
Power supply for digital voltage |
|
4 |
GND |
System ground |
|
5 |
GND |
System ground |
|
6 |
GND |
System grounduse it. |
|
7 |
CS |
Chip select signal |
|
8 |
AO |
AO |
|
9 |
RO |
Read signal |
|
10 |
WR |
Write signal |
|
11 |
RESET |
Reset input signal |
|
12-19 |
DB0-DB7 |
8 bit date bus |
|
20 |
BL-A |
Backlight a aothod input pin |
|
21 |
BL-K |
Backlight k cathode input pin |
|
22 |
NC |
No connect |
Applications:
1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.
2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.
3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.
4. Medical Devices: sphygmomanometer, ECG machine
5. Sports Equipment: Running machine.
6. Industrial Control Equipment: remote control, punched-card machine.
7. Information Terminal Display: POS, PDA, Handheld devices.
Security Products: elevator controller, electronic indicator.
