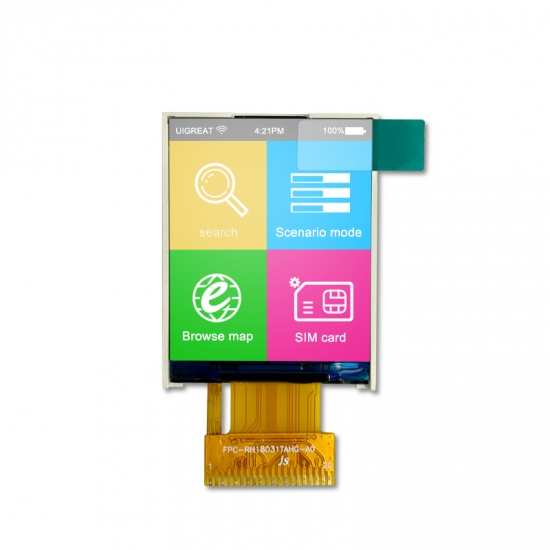

Cheap 128*160 Resolution 1.77 inch tft lcd display with MCU interface

Inquiry now Data sheet

Cheap 128*160 Resolution 1.77 inch tft lcd display with MCU interface

Specification
LCD type	TFT,Transmissive
Display type	1.8 inch TFT, 262k color, normal white
Description	1.77" tft lcd module with MCU interface
Driver element	a-si TFT Active matrix
Outline Dimension(mm)	46.7x34.7x2.5
A.A.(mm)	35.04x28.03
Driver IC	GC9106
Resolution(dots)_	128RGB160
Viewing Direction	12H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Logic Volatge	3.0v
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Weight(g)	TBD
Backlight	2 LEDs, White
Weight(g)	TBD
Interface connector	MCU interface
Module lifetime(Hours)	50,000-100,000
