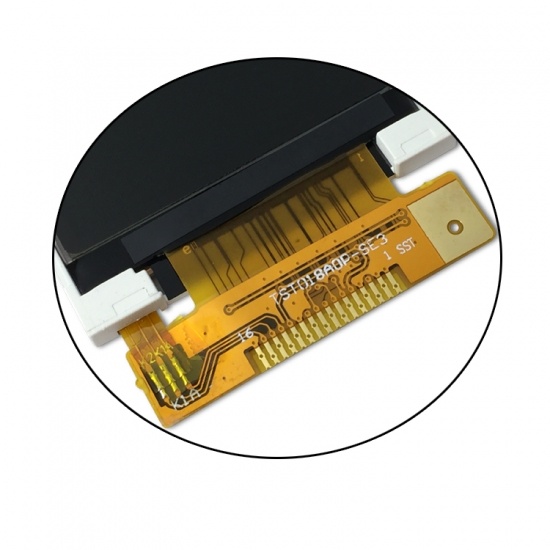

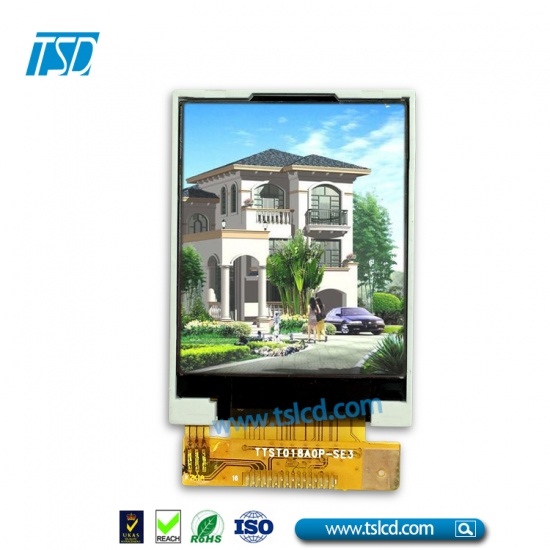

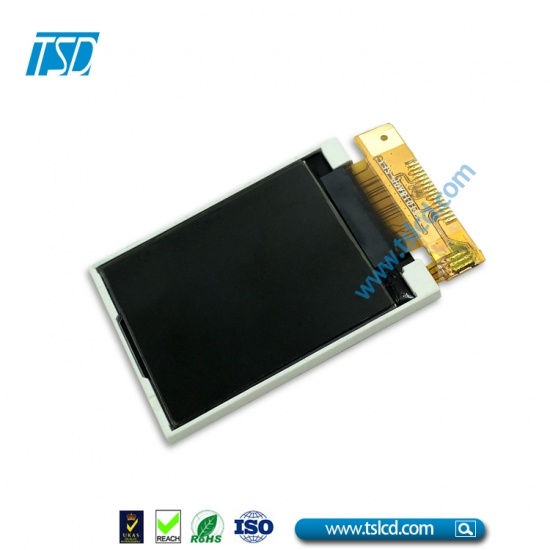

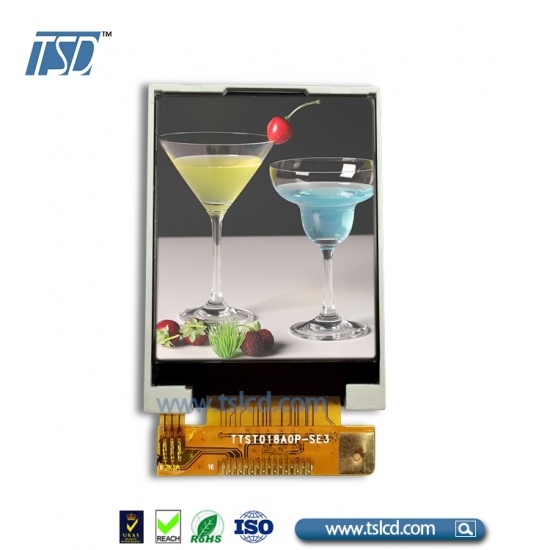

1.77" color TFT lcd module 128*160 Resolution with SPI interface

1.77 inch color TFT lcd module with 128xRGBX160

with SPI interface

1.77“ color tft lcd module with SPI interface


Specification
LCD type TFT,Transmissive
Display type 1.8 inch TFT, 262k color, normal white
Description 1.77" tft lcd module with SPI interface
Driver element a-si TFT Active matrix
Outline Dimension(mm) 46.7x34.7x2.5
A.A.(mm) 35.04x28.03
Driver IC ILI9163C
Resolution(dots)_ 128*RGB*160
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Logic Volatge 3.0v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 2 LEDs, White
Weight(g) TBD
Interface connector  SPI interface
Module lifetime(Hours) 50,000-100,000
