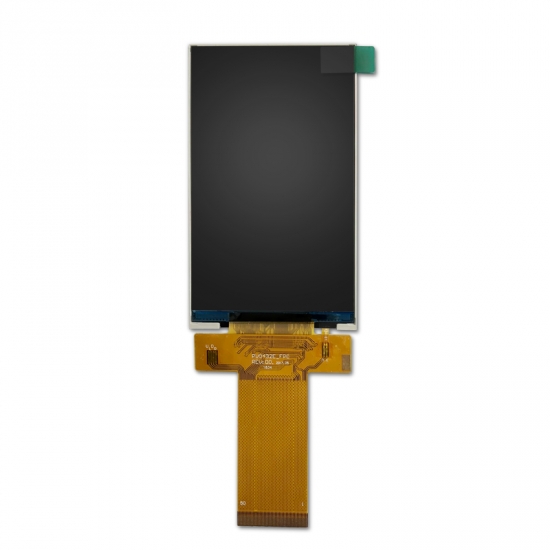

480x800 resolution 4.3 inch ips tft lcd module with SPI and RGB interface


4.3 inch IPS TFT
4.3 inch IPS TFT

480x800 resolution 4.3 inch ips tft lcd module with SPI and RGB interface

IPS all viewing angle



Inquiry now Data sheet

480x800 resolution 4.3 inch ips tft lcd module with SPI and RGB interface



Specification
Part No.
TST043WVBI-57
Outline Dimension(mm)
60.9 (w) x104.5(h) x 1.9 (t)mm
Active Area(mm) 56.16 (w) x 93.6 (h) mm
Resolution(dots) 480*RGB*800
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 480RGB(H)xRGBx800(V)
Display colors 262K
Driver IC ILI9806E
Touch screen Available to custom touch screen
Display mode Normal white,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface SPI+RGB
Module lifetime(Hours) 50,000-100,000
