TSD 16x4 dots character lcd module



  • Model Name: TSM1604B
  • LCD Type: 16*4 dots lcd
  • Resolution: 16*4
  • Viewing angle: 6H
  • Driver IC: AIP31066
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



 Description:

The TSM1604BL is a 16*4 dots dot-matrix LCD module. It has a STN panel composed of 16 segments and 4 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 16x4 character lcd module
Display type STN-Blue/STN-YG,Negative/positive,Transmissive/transflective
DRive mode 1/16 DUTY, 1/5 BIAS
Operating voltage 5.0v
Outline 87.0x60.0x14.0max
View Area 61.8x25.2mm
Active Area 56.2x20.8mm
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C

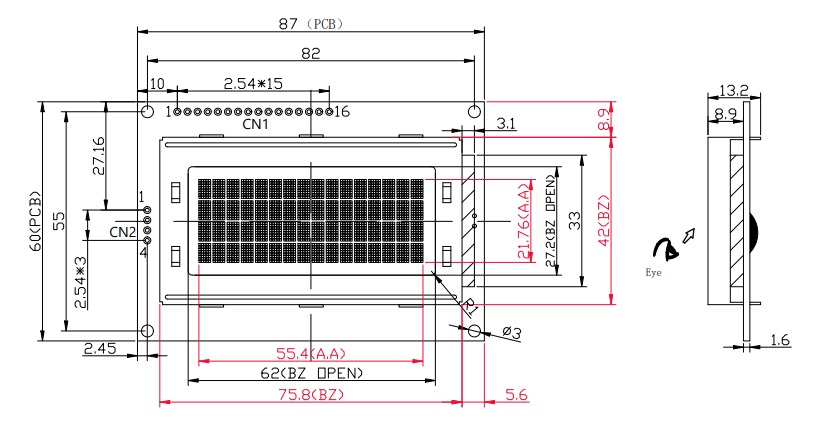

Drawing:

Interface Description:

PIN SYMBOL
1 VSS
2 VDD
3 V0
4 RS
5 R/W
6 E
7 DB0
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 A
16 K



Applications:

For our 1604 dots character lcd TSM1604BL , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1.1604 dots lcd  with 16pins

2. 5v working Voltage

3. AIP31066 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
