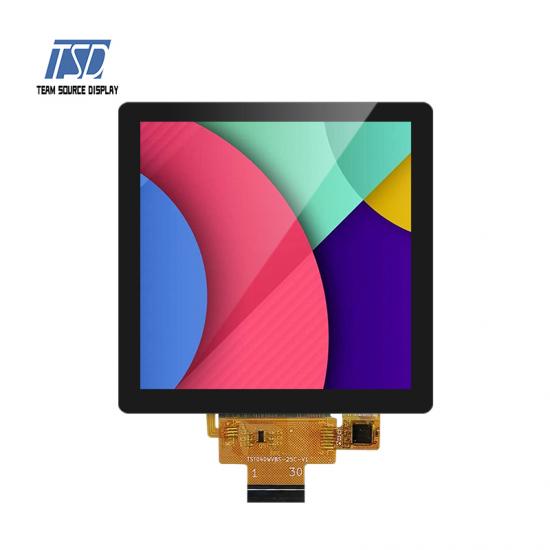

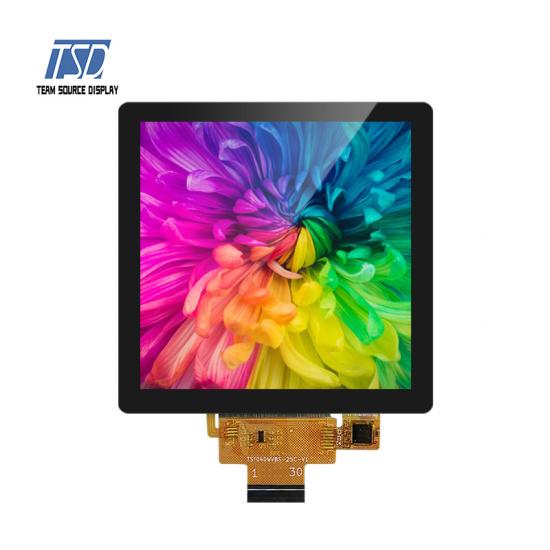

TSD 4.0 Inch Multi-Touch TFT Touch Screen 720*720 resolution

Model Name: TST040WVBS-34C

LCD Type: 4.0"TFT,TransmissiveNormally Black

Resolution: 720(RGB)*720

Viewing angle:  All O'CLOCK

Brightness: 260 cd/m 2 (typ)

Driver IC:  ST7703

Interface: MIPI

Touch Screen: With CTP(FT6336U)

Operating Temperature: -20 ℃~70 ℃

Storage Temperature: -30 ℃~80 ℃

Description:



TST040WVBS-34C  is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 72.58*72.58  measurement on the diagonal, with an active resolution of 720*RGB*720. This 2.13 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

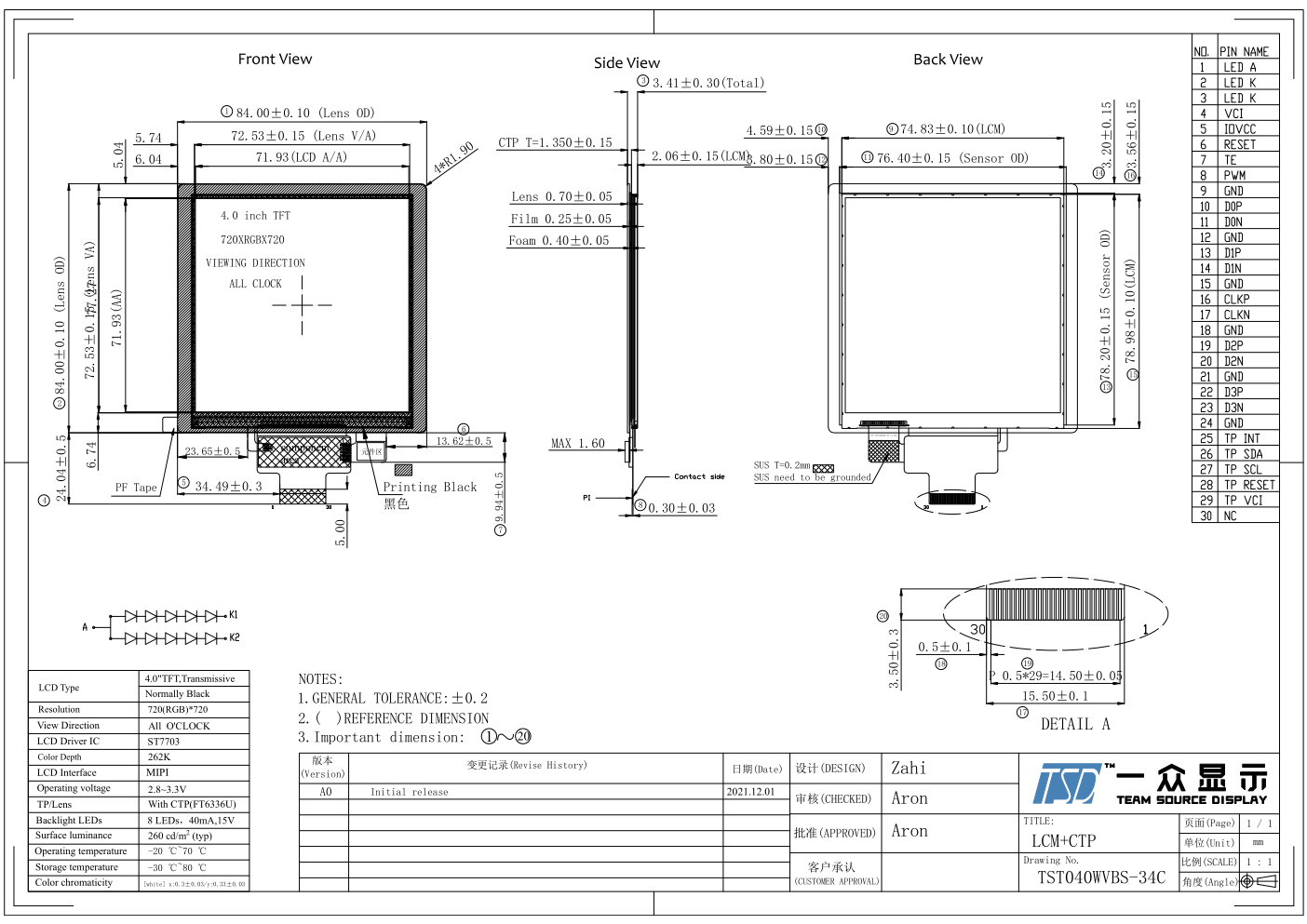

Drawing:





Specifications:





General Specification

Part No.

TST040WVBS-34C

Outline Dimension(mm)

74.83(W) x 78.98(H) x 2.06(D)

Active Area(mm)

71.93 (W) x 71.93 (H)

Resolution(dots)

720 x (RGB) × 720

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Pixel Pitch (W × H)

0.0999 x 0.0999

Touch panel

With CTP(FT6336U)

Driver IC

ST7703

Pixel arrangement

RGB-stripe

Display mode

Normal white,TN, 3.5 inch TFT

Surface treatment

-

View direction

ALL o’clock

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

MIPI

Module lifetime(Hours)

50,000-100,000





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
