TSD 2.8 inch 480x480 resolution circle LCD round display with automotive grade

  • Model Name: TST028WVBS-S64
  • LCD Type: 2.8 inch tft lcd display
  • Resolution: 480x480
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Driver IC: ST770SI
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -30 ~ +85℃

Description:



TST028WVBS-S64 is 2.8 inch ips tft lcd display with MIPI interface, available to make the customization of touch screen. It's round shape display, circle lcd display, resolution is 480x480. Outline dimension is 75x78.26x5.9mm, active area is 70.13x70.13mm. LCD driver IC is ST7701SI, support MIPI communication, operating temperature is -30 to 85℃, storage temperature is  -30 to +85℃, suitable for automotive application, such as 2 wheels.

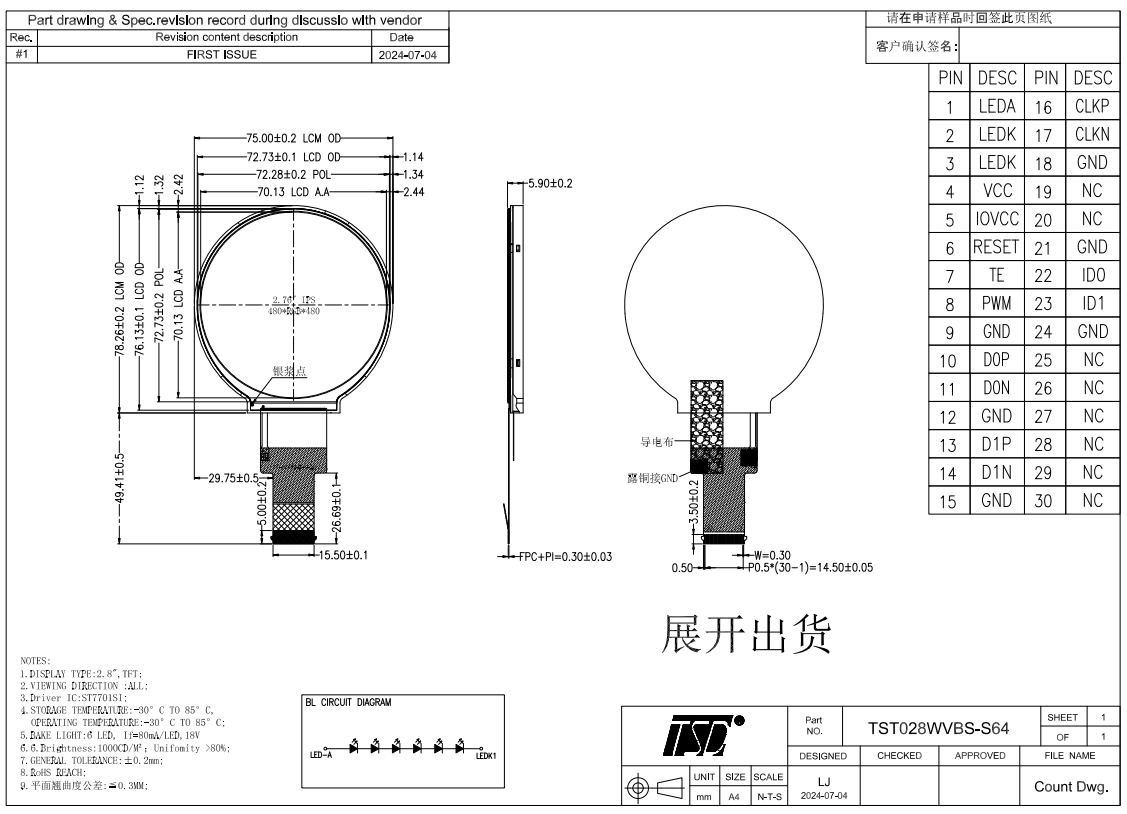

Drawing:

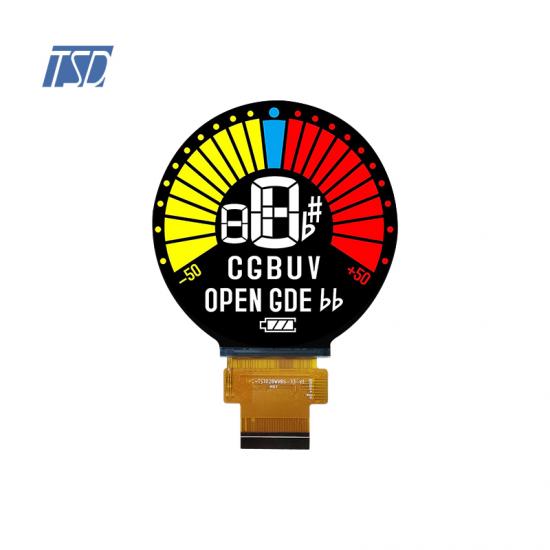

2.8 inch LCD


Specifications:



General Specification
Part No.  TST028WVBS-S64
Outline Dimension(mm)  75x78.26x5.9
Active Area(mm) 70.13x70.13
Resolution(dots) 480x480
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 480(H)xRGBx480(V)
Touch panel  without
Driver IC ST7701SI
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 2.8 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-40,000





Pins Description
Pin No.  Symbol Description
1 LEDK Backlight K Cathode input pin
2 LEDA Backlight A  Aothod inout pin
3

LEDK

Backlight K Cathode input pin
4 VCC Power supply
5 IOVCC Power supply
6 RESET Reset pin, setting either pin low initializes the LSI. Must be reset after power is supplied.
7 TE Tearing effect signal is used to synchronize MCU to frame memory
8 PWM Backlight adjustment
9 GND System Ground (0V)
10 D0P MIPI data 0+
11 D0N MIPI data 0-
12 GND System Ground (0V)
13  D1P  MIPI data 1+
14  D1N  MIPI data 1-
 15  GND System Ground (0V)
 16  CLKP  /
 17  CLKN  /
 18  GND System Ground (0V)
 19  NC  No connection
 20  NC  No connection
21 GND System Ground (0V)
22 ID0  /
23 ID1  /
24 GND System Ground (0V)
25 NC No connection
26 NC No connection
27 NC No connection
28 NC No connection
29 NC No connection
30 NC No connection




Applications:



Our 2.8 inch color TFT LCD is specifically designed for automotive and mobility applications, including electric scooters, motorcycles, and other compact vehicle systems. This compact yet robust display delivers clear visibility, high brightness (optional), and wide viewing angles, ensuring critical information (speed, battery level, navigation, etc.) remains readable in various lighting conditions.


Key Features for Vehicle Integration:


✔ Sunlight Readability: High-luminance options (up to 1000 nits) for outdoor visibility
✔ Wide Temperature Range (-30°C to +85°C or custom) for reliable operation in all climates
✔ Vibration & Shock Resistant: Reinforced structure for durability on rough roads
✔ Custom Interface: Supports SPI interface; can display speedometer, battery icons, warning indicators, etc.


Typical Applications:

Electric scooter/motorcycle dashboards
Battery management system displays
Compact vehicle telemetry screens







Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
