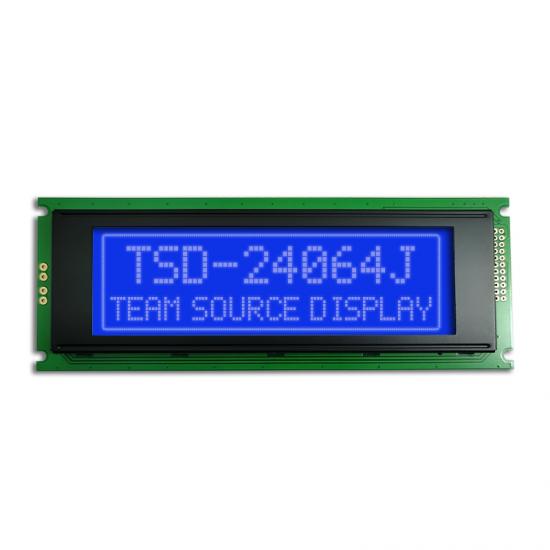

TSD 240x64 dots STN graphic lcd display COB module



  • Model Name: TSM24064J-D01
  • LCD Type: 240*64 dots lcd
  • Resolution: 240*64
  • Viewing angle: 6H
  • Driver IC: T6963C
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM24064J-D01 is a 240*64 dots dot-matrix LCD module. It has a FSTN panel composed of 240 segments and 64 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 240 x 64
Display type STN
Description 240x64 graphic lcd module
Driving method 1/64 DUTY, 1/9 BIAS
Outline Size 180x65x14.5mm
View Area 132x39mm
Active Area 127.16x33.88mm
Character size 0.49x0.49mm
Character pitch 0.53x0.53mm
Number of pins 22
Model name TSM24064J-D01
Warranty 12 months
Operating temperature -20-70℃
Storage temperature -30-80℃
MOQ 1000pcs

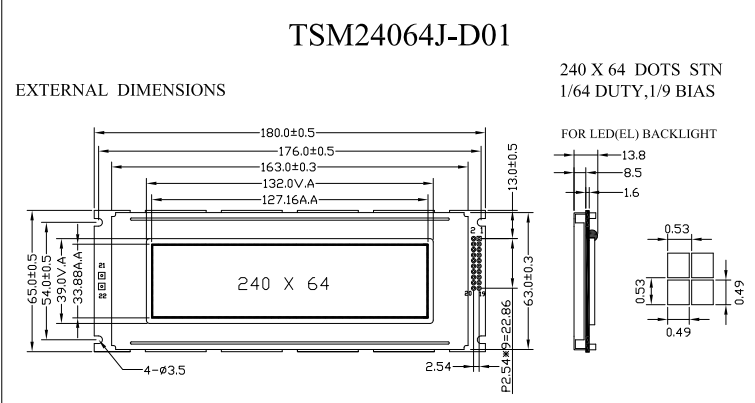

Drawing:

Interface Description:

PIN SYMBOL
1 FG
2 VSS
3 VDD
4 V0
5 WR
6 RD
7 CE
8 RS
9 NC
10 RST
11 DB0
12 DB1
13 DB2
14 DB3
15 DB4
16 DB5
17 DB6
18 DB7
19 FS
20 VOUT
21 A
22 K

Applications:

For our TSM24064J-D01 dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM24064J-D01 dots lcd with 22pins

2. 5v working Voltage

3.T6963C IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.
