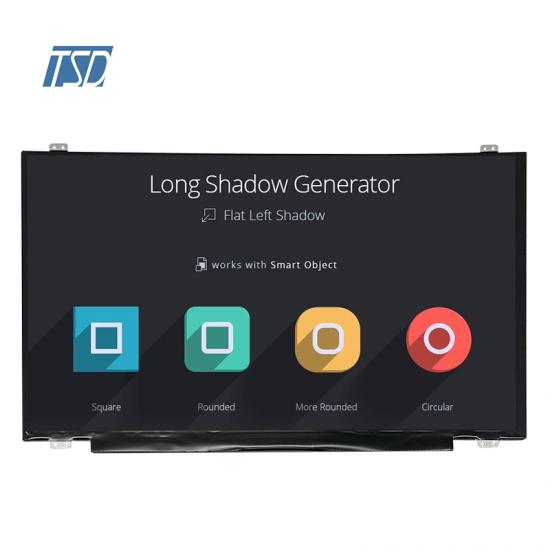

TSD 15.6 inch 1920x1080 FHD IPS TFT LCD display with LVDS interface

  • Model Name: TST156FHBH-H73T
  • LCD Type: 15.6 inch TFT LCD display
  • Resolution: 1920x1080
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +80℃
  • Storage Temperature: -30 ~ +85℃





Description:



TST156FHBH-H73T is a color active matrix TFT LCD module using amorphous solicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.




Specifications:



General Specification
Part No.  TST156FHBH-H73T
Outline Dimension(mm)  360.1x212.55mm
Active Area(mm) 344.16×193.59mm
Resolution(dots) 1920x1080
Operating temperature(°C) -30 ~ +80°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 1920(H)xRGBx1080(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 15.6 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 NC No connection
2 NC No connection
3 NC No connection
4 NC

No connection

5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 NC No connection
10 NC No connection
11 LCD_VCC LVDS power supply 3.3V (typical)
12 LCD_VCC LVDS power supply 3.3V (typical)
13 LCD_VCC VDS power supply 3.3V (typical)
14 NC NC
15 NC No connection
16 NC No connection
17 GND Ground
18 RXO0- -LVDS different data input
19 RXO0+ +LVDS different data input
20 RXO1- -LVDS different data input
21 RXO1+ +LVDS different data input
22 RXO2- -LVDS different data input
23 RXO2+ +LVDS different data input
24 GND Ground
25 RXOC- -LVDS different clock input
26 RXOC+ +LVDS different clock input
27 GND Ground
28 RXO3-

-LVDS different data input

29 RXO3+ +LVDS different data input
30 RXE0- -LVDS different data input
31 RXE0+ +LVDS different data input
 32 RXE1- -LVDS different data input
 33 RXE1+ +LVDS different data input
 34 GND Ground
35 RXE2- -LVDS different data input
36 RXE2+ +LVDS different data input
37 RXEC- -LVDS different clock input
38 RXEC+ +LVDS different clock input
39 RXE3- -LVDS different data input
40 RXE3+ +LVDS different data input




Features:

  •
  • - 1920 x 1080 resolution
    - DE (Data Enable) only mode
    - LVDS Interface
    - PSWG (Panel Standardization Working Group)
    - Wide operating temperature
  • - RoHS compliance
  •


  • Applications:

  • -TFT LCD Monitor
    - Factory Application
    - Amusement
  • - Vehicle
