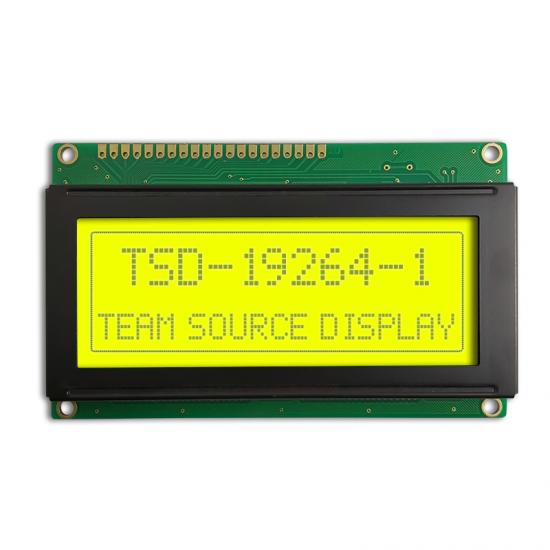

TSD COB STN LCD 192*64 Yellow and Green VDD 5v

  • LCD Type:  FSTN
  • Polarizer type: Reflective
  • Connector Type: Metal Pins
  • Display Mode: Positive, Transflective
  • The range of operating Temperature: -20~70°C
  • Custom Service Support: LCD Type, Interface, Size, Display Mode

Description:



TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

COB STN LCD 192*64 Yellow and Green VDD 5v:

Custom Process:

Confirm specific requirements  Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks

OEM and customization are welcome!




Drawing:


Specifications:



General Specification
Part No.  TSG19264-1
Outline Dimension(mm)

100.00(W)x60.00 (H)x13.00(D)

Active Area(mm) 97.00 (W) x26.19(H)
Resolution(dots) 192x64
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 192x64
Touch panel  Without
Driver IC S6BD107
Display mode Positive, transflective
Surface treatment No
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface PIN
Module lifetime(Hours) 50,000-100,000




Applications:



The energy meter, digital meter, oiling machine, crane, EV-car, and air conditioner are customized for your device.




Product Features:

    1. LCD Type:  FSTN
    2. Polarizer type: Reflective
    3. Connector Type: Metal Pins
    4. Display Mode: Positive
    5. The range of operating Temperature: -20~70°C
    6. Custom Service Support: LCD Type, Interface, Size, Display Mode
    7. Another model: 128*32,128*64,160*128,240*320,240*128,256*128, etc.
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
 192x64 lcd cob modul
TSD 192x64 lcd STN blue Negative cob module with backlight
LCD Type:  STN Blue type Polarizer type: Reflective Connector Type: Metal Pins Display Mode: Positive, Transflective The range of operating Temperature: -20~70°C Custom Service Support: LCD Type, Interface, Size, Display Mode
COB 192*64 LCD
TSD COB STN LCD 192*64 Blue VDD 5v
LCD Type:  FSTN Polarizer type: Reflective Connector Type: Metal Pins Display Mode: Positive, Transflective The range of operating Temperature: -20~70°C Custom Service Support: LCD Type, Interface, Size, Display Mode
9.0 inch TFT with RGB interface
TSD 9 inch tft lcd module 800x480 with RGB interface display
Model Name: TST090WVIE-04 LCD Type: 9 inch TFT LCD display module Resolution: 800x480 Viewing angle: 12 o'clock Brightness: 450 cd/m2 Driver IC: EK9713CA&EK73002A Interface: RGB 24bit Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
4.3 inch Touch Panel
TSD 4.3 inch TFT LCD with 480x800 resolution with CTP and 560 nits
TSD 4.3 inch TFT LCD with 480x800 resolution with CTP and 560 nits

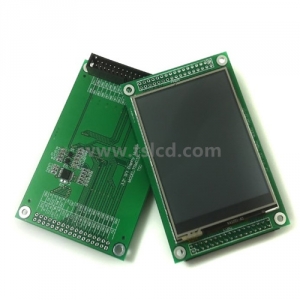

2.8 inch TFT LCD UART
