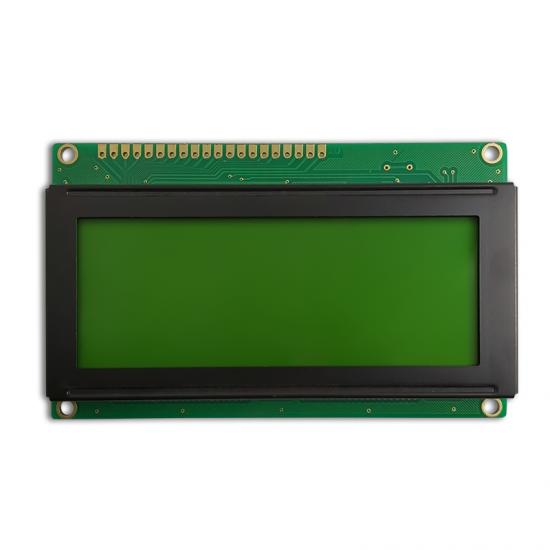

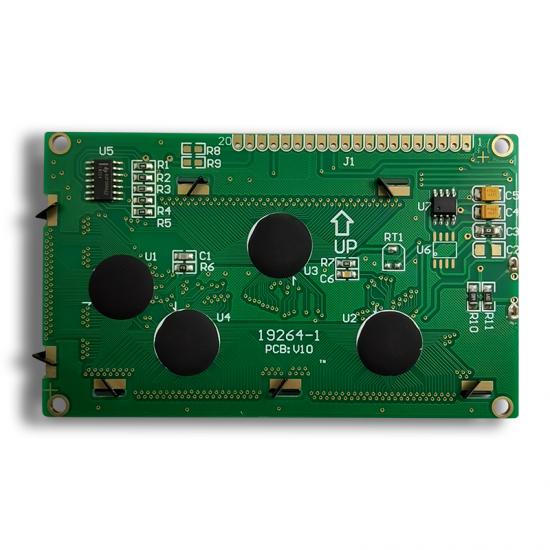

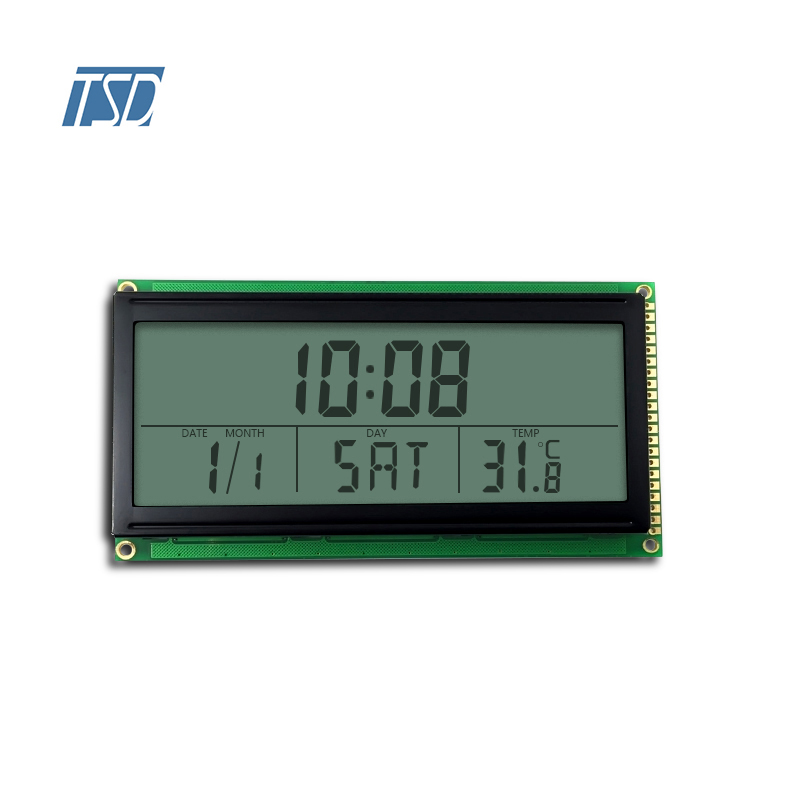

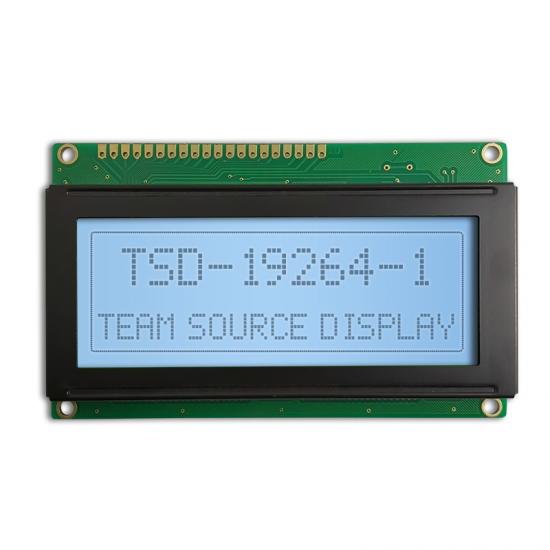

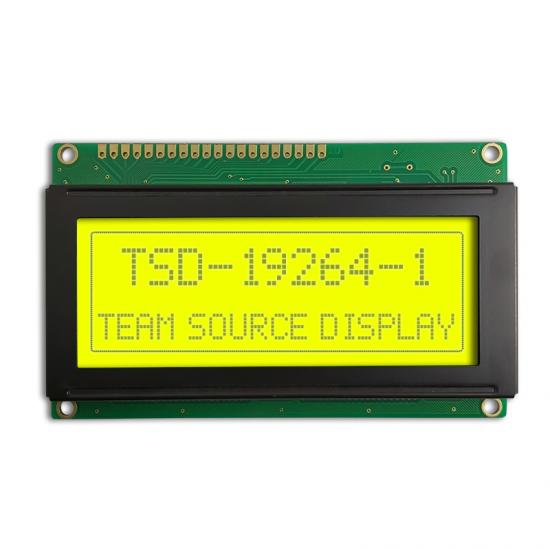

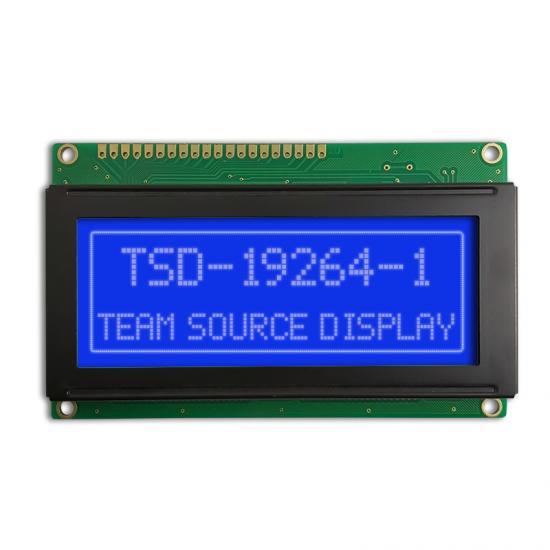

TSD 192x64 lcd STN blue Negative cob module with backlight

  • LCD Type:  STN Blue type
  • Polarizer type: Reflective
  • Connector Type: Metal Pins
  • Display Mode: Positive, Transflective
  • The range of operating Temperature: -20~70°C
  • Custom Service Support: LCD Type, Interface, Size, Display Mode

Description:



TSD is a professional LCD manufacturer in China, specializing in TFT LCD, Mono LCD, Touch Panel, OLED Display and E-ink for many years. TSD has developed thousands of OEM&ODM LCD Modules for various fields, including Smart Home Appliances, Industrial, Automotive, Medical, etc.

The TSM19264-3 is a 192*64 dots dot-matrix LCD module. It has a FSTN panel composed of 192 segments and 64 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

TSD COB STN LCD 192*64 Blue VDD 5v:

Custom Process:

Confirm specific requirements  Pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collect



Lead time for custom LCD:

drawing making:2-5days

tooling and samples: around 3wks

OEM and customization are welcome!




Drawing:


Specifications:



General Specification
Part No.  TSG19264-2
Outline Dimension(mm)

120.00(W)x62.00 (H)x13.00(D)

Active Area(mm) 104*39
Resolution(dots) 192x64
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 192x64
Touch panel  Without
Driver IC S6BD107
Display mode Positive, transflective
Surface treatment No
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface PIN
Module lifetime(Hours) 50,000-100,000




Applications:



The energy meter, digital meter, oiling machine, crane, EV-car, and air conditioner are customized for your device.




Product Features:

    1. LCD Type:  FSTN
    2. Polarizer type: Reflective
    3. Connector Type: Metal Pins
    4. Display Mode: Positive
    5. The range of operating Temperature: -20~70°C
    6. Custom Service Support: LCD Type, Interface, Size, Display Mode
    7. Another model: 128*32,128*64,160*128,240*320,240*128,256*128, etc.
