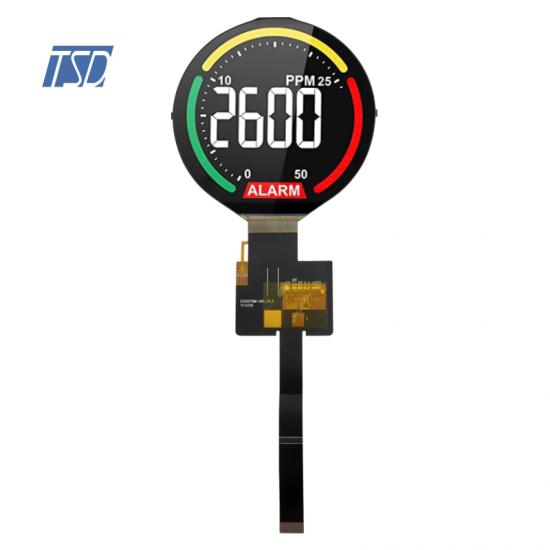

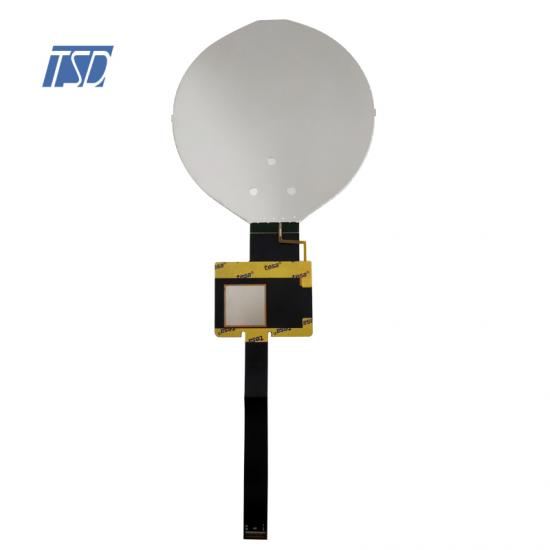

TSD 1080×1080 resolution 5.0 inch Round IPS TFT LCD display



  • Model Name: TST050FHBH-40
  • LCD Type: 5 inch IPS TFT display
  • Resolution: 1080x1080
  • Viewing angle: All o'clock
  • Brightness: 400 cd/m2
  • Contrast Radio: 1300
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +60℃
  • Storage Temperature: -30 ~ +75℃



Description:



TST050FHBH-40 is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin FilmTransistors) as an active switching devices. This model is composed of a TFT-LCD Panel,a driving circuit and a back light system. It is a transmissive type display operating in thenormal black. This TFT-LCD has a 5.0 inch diagonally measured active area with FHDresolutions (1080 horizontal by 1080 vertical pixel array).Each pixel is divided into Red,Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7Mcolors.

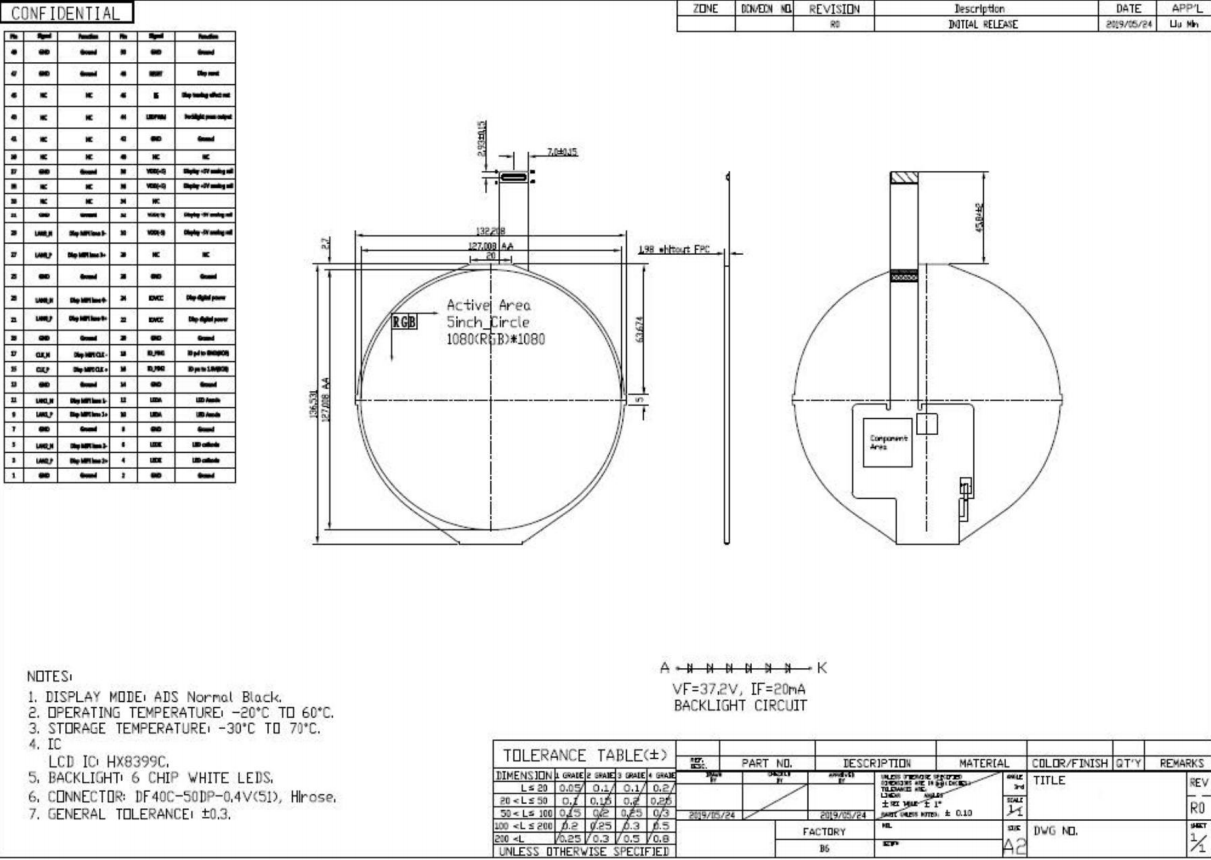

Drawing:




Specifications:



General Specification
Part No.  TST050FHBH-40
Outline Dimension for Backlight(mm)

136.531x132.208x1.98mm

Outline dimension for LCD(mm) 127.008x127.008mm
Resolution(dots) 1080x (RGB) × 1080
Operating temperature(°C) -20 ~ +60°C
Storage temperature(°C) -30 ~ +75°C
Number of Pixel(pixels) 1080RGB(H)xRGBx1080(V)
Touch panel  without
Surface luminance 400 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black, IPS, 5 inch TFT
Surface treatment Antiglare
View direction  All o'clock
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MIPI
Module lifetime(Hours) 30,000-50,000





Pins Description
Pin No.  Symbol Description
1 GND Ground
2 GND Ground
3 LAN2_P Disp MIPI lane 2+
4 LEDK LED Cathode
5 LAN2_N Disp MIPI lane 2-
6 LEDK LED Cathode
7 GND Ground
8 GND Ground
9 LAN1_P Disp MIPI lane 1+
10 LEDA LED Anode
11 LAN2_N
Disp MIPI lane 1-
12 LEDA LED Anode
13 GND Ground
14 GND Ground
15 CLK_P Disp MIPI CLK+
16 ID_PIN2 ID pu to 1.8V (BOE)
17 CLK_N Disp MIPI CLK+
18 ID_PIN1 ID pd to GND (BOE)
19 GND Ground
20 GND Ground
21 LAN0_P Disp MIPI lane 0+
22 IOVCC Disp digital power
23 LAN0_N Disp MIPI lane 0-
24 IOVCC Disp digital power
25 GND Ground
26 GND Ground
27 LAN3_P Disp MIPI lane 3+
28 NC No connect
29 LAN3_N
Disp MIPI lane 3-
30 VDD (-5) Display -5V analog rail
31 GND Ground
32 VDD(-5)
Display -5V analog rail
33 NC No connect
34 NC No connect
35 NC No connect
36 VDD (+5) Display +5V analog rail
37 GND Ground
38 VDD (+5)
Display +5V analog rail
39 NC No connect
40 NC No connect
41 NC No connect
42 GND Ground
43 NC No connect
44 LEDPWM Backlight pwm output
45 NC No connect
46 TE Disp tearing effect out
47 GND Ground
48 RESET Disp reset
49 GND Ground
50 GND Ground






Applications:

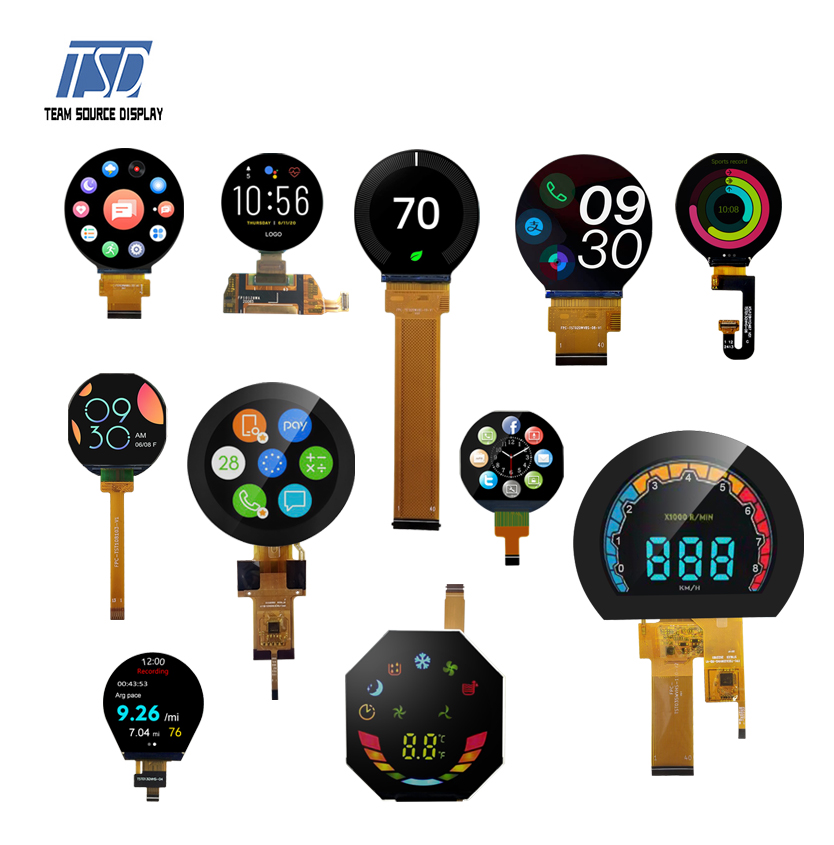

TSD have various sizes of round tft lcd display, for our 5 inch round display, it's  are widely using in many fields:

Industrial display modules, automotive clocks, electronic instruments, CDs, VCDs, car audio, automotive LCD lighting, household appliances, industrial instrument displays, electronic dictionaries, mobile phones, assistant phones, fax machines, MP3, handheld telephones, air conditioners, handheld computers Electronic game consoles, voice assistants, electronic watches, electronic pets, BP machines, electronic scales, mobile phones, electronic notepads, radios, etc., will use integrated display products to examine all aspects of the Internet of Things in social life.
