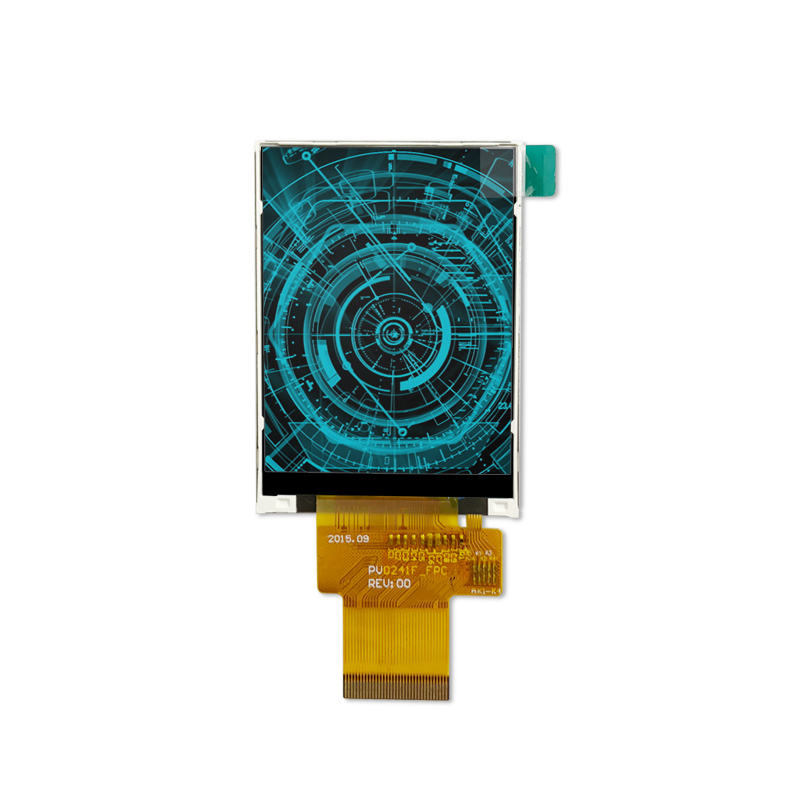

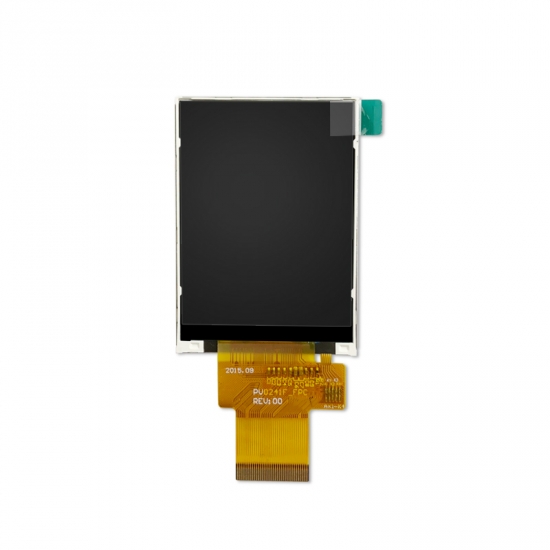

TSD 3.0 inch 240x400 resolution lcd monitor 3 inch transflective display

  • Model Name: TST030WQBH-03
  • LCD Type: 3.0 inch transflective TFT LCD display
  • Resolution: 240x400
  • Viewing angle: All o'clock
  • Brightness: 150 cd/m2
  • Driver IC: ST7789V
  • Interface: MCU 8 btis
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +85℃

Description:

TST030WQBH-03 is 3.0 inch 240x400 resolution MCU 8 bit interface LCD display module, without standard capacitive touch panel. Backlight is 150 nits, White LEDs is 6, which could be customized. For this 3.0 inch TFT LCD module, driver IC is HX8352-B00, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.

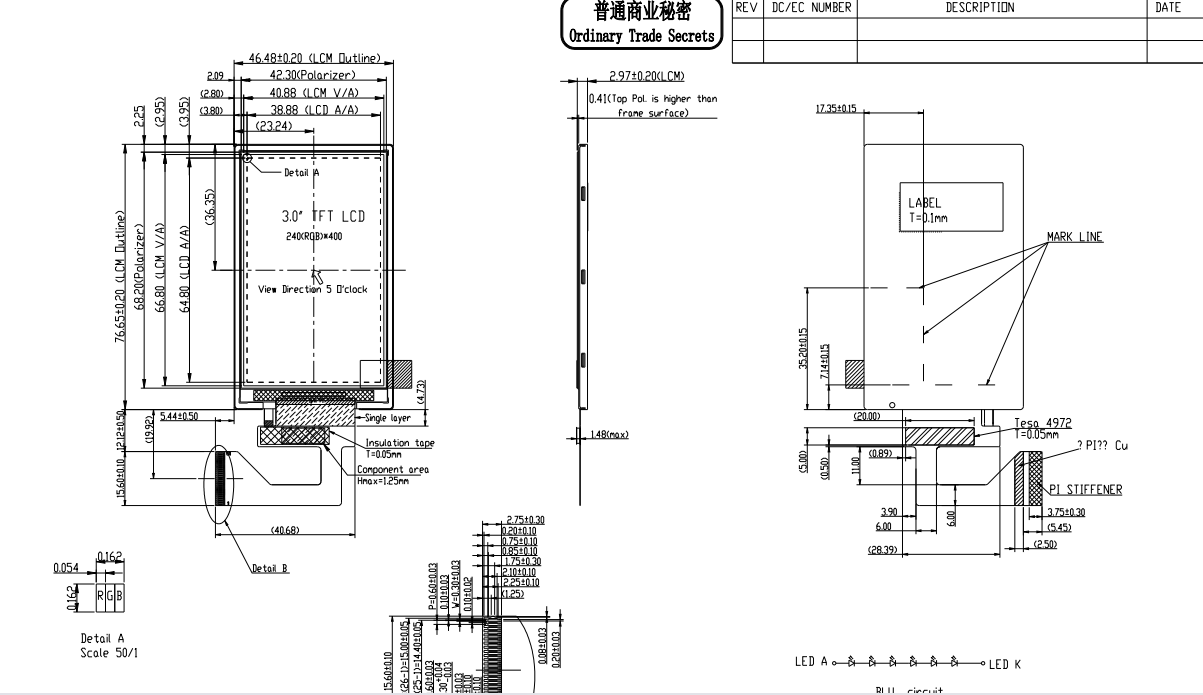

Drawing:




Specifications:



General Specification
Part No.  TST030WQBH-03
Outline Dimension(mm)

76.65x46.48x2.97

Active Area(mm) 38.88x64.8
Resolution(dots) 240x400
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +85°C
Number of Pixel(pixels) 240(H)xRGBx400(V)
Touch panel  w/o CTP
Driver IC HX8352-B00
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 3.0 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8 bits
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 ID2 Identification(pull VDD 1.8V internally)
2-3 GND System Ground. (0V)
4 RESET System reset
5 NC No connect
6-13 DB15-DB8 Data signal
14 NC No connect
15-22 DB7-DB0 Data signal
23 NC No connect
24 LEDK Power supply for LED(Cathode)
25 NC No connect
26 LEDA Power supply for LED of full(Anode)
27 GND Ground(pull low internally)
28 GND System ground.
29 ID1 Backlight A Aothod input pin.
30 TE Tearing effect output
31-36 GND System ground.
37 NC Not connect
38 VDD Voltage input pin for logic I/O
39 VCI Booster input voltage pin
40-42 IM0-IM2 Interface mode select pin
43-45 GND Ground
46 RD Read control input pin
47 WR Write control input pin
48 RS Resister select input pin.
49 CS Chip select pin of serial interface
50 NC No connect




Applications:



For our 3.0 inch LCD display TST030WQBH-03, normally used in smart home product, such as smart thermostat, temperature and humidity control panel, to make it very intelligent life.



3 tft lcd display


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 3.0" contains 240x320 dots and can display up to 262k colors.
