TSD Automotive display FHD 1920×1080 resolution 14.6 inch IPS tft lcd display module with LVDS interface

  • Model Name: TST146FHBH-V05
  • LCD Type: 14.6 inch TFT LCD display
  • Resolution: 1920*1080
  • Viewing angle: IPS all viewing angle
  • Brightness: 650 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +90℃

Description:

TSD TFT item number TST146FHBH-V05 is 14.6 inch, IPS TFT LCD, 1920*1080 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.

Specification
Part No. 14.6 inch IPS TFT
Outline Dimension(mm) 336.249x198.46x 7.73
Active Area(mm) 323.136x 181.764
Operating temperature(°C) -30 to 85
Storage temperature(°C) -40 to 90
Resolution(dots) 1920x1080
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 14.6 inch TFT
Brightness 650 nits
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface LVDS
Module lifetime(Hours) 50,000-100,000

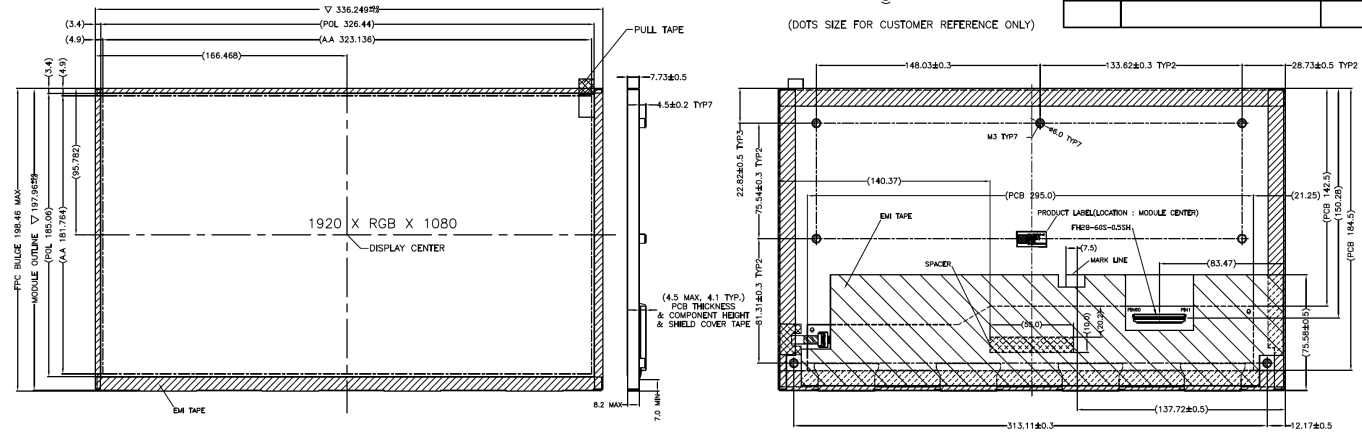

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VCC Power pin
2 VCC Power pin
3 NC No connection
4 NC No Connection
5 NC No connection
6 VDDA

Power pin

7 VDDA Power pin
8 VDDA Power pin
9 NC No connection
10 NC No connection
11 ID (1.8V) ID Pin, 1.8V read
12 GND Ground
13 RXO0- Odd Data channel 0 -
14 RXO0+ Odd Data channel 0 +
15 GND Ground
16 RXO1- Odd Data channel 1 -
17 RXO1+ Odd Data channel 1 +
18 GND Ground
19 RXO2- Odd Data channel 2 -
20 RXO2+ Odd Data channel 2 +
21 GND Ground
22 RXOC- Odd Clock channel -
23 RXOC+ Odd Clock channel +
24 GND Ground
25 RXO3- Odd Data channel 3 -
26 RXO3+

Odd Data channel 3 +

27 GND Ground
28 RXE0- Even Data channel 0-
29 RXE0+ Even Data channel 0+
30 GND Ground
31 RXE1- Even Data channel 1 -
32 RXE1+ Even Data channel 1 +
33 GND Ground
34 RXE2- Even Data channel 2 -
35 RXE2+ Even Data channel 2 +
36 GND Ground
37 RXEC- Even Clock channel -
38 RXEC+ Even Clock channel +
39 GND Ground
40 RXE3- Even Data channel 3 -
41 RXE3+ Even Data channel 3 +
42 GND Ground
43 RESET Reset pin, active low.
44 STBY Standby mode setting pin,active low. Timing controller.output buffer, DAC andpower circuit all off whenSTBY is low.
45 GND Ground
46 Cs SPI interface chip select
47 SCL

SPI interface clock

48 SDA SPI interface data bus
49 NC No connection
50 NC No connection
51 A2+ LED Anode2
52 A1+ LED Anode1
53 NTC1 NTC thermistor terminal
54 NTC2 NTC thermistor terminal
55 K6- LED Cathode6
56 K5- LED Cathode5
57 K4- LED Cathode4
58 K3- LED Cathode3
59 K2- LED Cathode2
60 K1- LED Cathode1

Applications:



For our 14.6 inch LCD display TST146FHBH-V05, it's widely using in industrial machine and automotive grade lcd application.

Product Features:

1.14.6 inch 1920*1080 res. with 60 pins LVDS interface

2. IPS lcd full viewing angle

3.FHD high definition

4.super wide working temp.

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.

Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
7 inch Automotive Grade IPS TFT
TSD 1024X600 resolution 7 inch TFT LCD Module with high brightness
Model Name: TST070WSIH-187 LCD Type: 7 inch TFT LCD display Resolution: 1024x600 Viewing angle: All o'clock Brightness: 1000 cd/m2 Driver IC: HX8282 +HX8296 Interface: RGB Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
10.1 inch ips display
TSD 1200x1920 resolution 10.1 inch IPS lcd display with mipi interface
  Model Name: TST101WUIH-79 LCD Type: 10.1 inch TFT LCD display Resolution: 1920*1200 Viewing angle: IPS all viewing angle Brightness: 250 cd/m2 Interface: MIPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
TST035HVSI-53

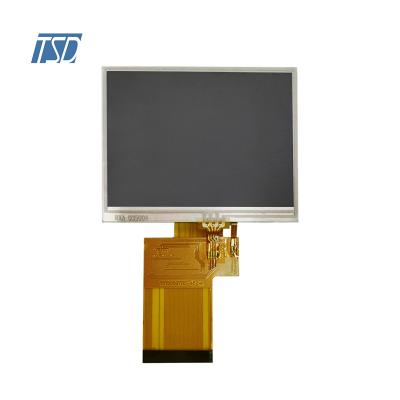

TSD 3.5 Inch TFT LCD Customization lcd panel 320 x (RGB) × 480 resolution
LCD Type: a-Si TFT,Transmissive,Normally white,TN Resolution: 320 x (RGB) × 480 View Direction: 6 o’clock LCD driver IC: ILI9488 Interface types:MCU 8/16-bit Operating voltage: 2.8~3.3V With TP/Lens: with CTP Backlight: 6 LEDs Surface luminance: 280 cd/m 2 Operating temperature: -20℃~70℃ Storage temperature: -30℃~80℃
5 inch IPS TFT
TSD 5 inch 480* 690 res. tft lcd displayRGB/SPI interface ST7701S controller
Model Name: TST050FWBS-107 LCD Type: 5 inch TFT LCD display Resolution: 480*960 Viewing angle: IPS all viewing angle Brightness: 450 cd/m2 Driver IC: ST7701S Interface: RGB/SPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
4.3 TFT LCD with SSD9163
TSD 4.3 inch tft lcd SSD1963 board with Resistive Touch Screen Controller
  Model Name: TSM043WQHS-72P LCD Type: 4.3 inch IPS TFT display Resolution: 480x272 Viewing angle: All o'clock Brightness: 560~600 cd/m2 Driver IC: SSD1963 Interface: MCU Touch Screen: with Resistive touch panel Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
7 inch TFT LCD 800*480 with MCU interface
TSD 7 inch TFT LCD MCU interface with SSD1963 board and RTP
Model Name: TSM070WVBE-32 LCD Type: 7 inch TFT display Resolution: 800x480 Viewing angle: 12 o'clock Brightness: 500 cd/m2 Driver IC: SSD1963 Interface: MCU Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
5.0 inch IPS TFT
TSD 720*1280 resolution HD 5.0 inch IPS TFT Lcd MIPI interface
  Model Name: TST050WVHS-92 LCD Type: 5 inch TFT LCD display Resolution: 720*1280 Viewing angle: IPS all viewing angle Brightness: 380 cd/m2 Driver IC: ST7703 Interface: MIPI Touch Screen: without Operating Temperature: -20 ~ +70℃ Storage Temperature: -30 ~ +80℃
15 inch lcd monitor

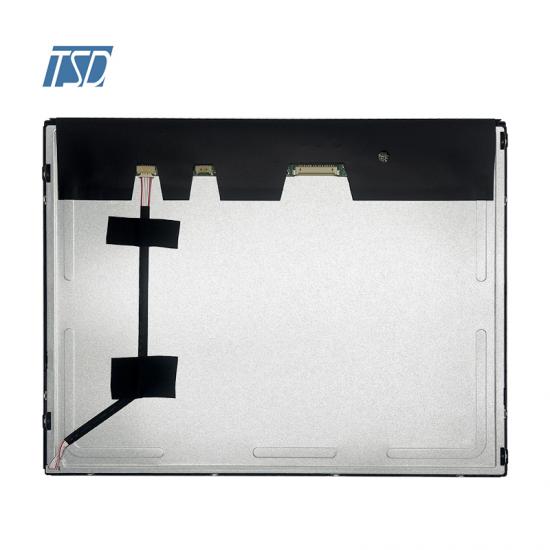

15 inch lcd monitor 1024x768 resolution TN display with LVDS interface
