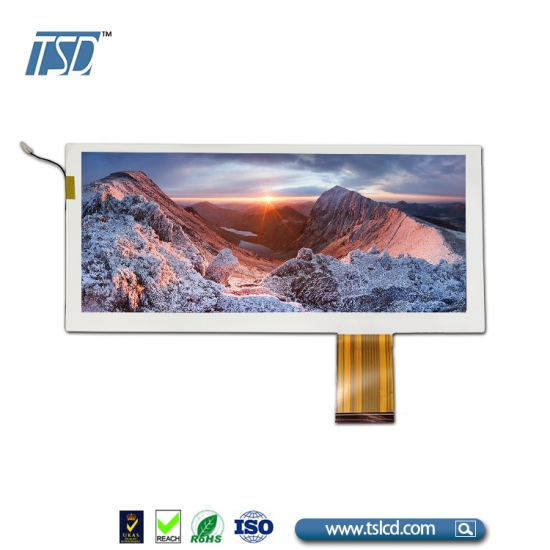

TSD 1920x720 resolution ips display 12.3 inch lcd automotive applications

  • Model Name: TST123HDKK-06
  • LCD Type: 12.3 inch TFT LCD display
  • Resolution: 1920*720
  • Viewing angle: IPS all viewing angle
  • Brightness: 1000 cd/m2
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -40 ~ +85℃
  • Storage Temperature: -40 ~ +90℃



Description:

TSD TFT item number TST123HDKK-06 is 12.3 inch, IPS TFT LCD, 1920*720 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
LCD type 12.3 inch ips tft lcd
Display type 12.3 inch TFT
Driver element color active matrix thin film transistor
Backlight white LED
Outline Dimension(mm)
312.6x131.65x13.3
Display Area.(mm)

292.03x109.51
Resolution(dots) 1920xRGBx720
Viewing Direction 80/80/80/80
Operating temperature(°C) -30-85
Storage temperature(°C) -40-90
Backlight white LEDs
Brightness 1000 nits
Touch panel availabe to custom
Surface treatment Anti-Glare
Application Automotive
Weight 460g
Interface  LVDS
Module lifetime(Hours) 50,000-100,000

Drawing:

Interface Description:

Pin No.  Symbol Description
1 GND Power ground
2 NC/BIST No connector(BIST Pin)
3 VCC Digital Power/Vin = 3.3V
4 VCC Digital Power/Vin = 3.3V
5 GND Power ground
6 GND

Power ground

7 NC No connector(Serial interface OTP Power)
8 NC No connector(Serial interface OTP Power)
9 GND Power ground
10 ORXIN0- Negative LVDS differential data input (Odd data)
11 ORXIN0+ Positive LVDS differential data input (Odd data)
12 ORXIN1- Negative LVDS differential data input (Odd data)
13 ORXIN1+ Positive LVDS differential data input (Odd data)
14 ORXIN2- Negative LVDS differential data input (Odd data)
15 ORXIN2+ Positive LVDS differential data input (Odd data)
16 ORXCLKIN- Negative LVDS differential clock input (Odd clock)
17 ORXCLKIN+ Positive LVDS differential clock input (Odd clock)
18 ORXIN3- Negative LVDS differential data input (Odd data)
19 ORXIN3+ Positive LVDS differential data input (Odd data)
20 ERXIN0- Negative LVDS differential data input (Even data)
21 ERXIN0+ Positive LVDS differential data input (Even data)
22 ERXIN1- Negative LVDS differential data input (Even data)
23 ERXIN1+ Positive LVDS differential data input (Even data)
24 ERXIN2- Negative LVDS differential data input (Even data)
25 ERXIN2+ Positive LVDS differential data input (Even data)
26 ERXCLKIN-

Negative LVDS differential clock input (Even clock)

27 ERXCLKIN+ Positive LVDS differential clock input (Even clock)
28 ERXIN3- Negative LVDS differential data input (Even data)
29 ERXIN3+ Positive LVDS differential data input (Even data)
30 GND Power ground
31 FAULT FAULT signal output(normal=L,abnormal=H)
32 RESET Global reset pinactive low.
33 STBYB Standby mode,active low.
34-37 NC No connector(Serial interface chip enable.CSB)
38-39 GND Power ground
40 NC No connector
41-43 LEDA LED power (Anode)
44 NC No connector
45 LEDK Cathode 1
46 LEDK Cathode 2
47 LEDK Cathode 3
48 LEDK Cathode 4
48 NTC A NTC_Anode
50 NTC K NTC Cathode

Applications:



For our 12.3 inch LCD display TST123HDKK-06, it's widely using in automotiva grade applications.

Product Features:

1.12.3 inch 1920*720 res. with 50 pins LVDS interface

2. IPS lcd full viewing angle

3.super wide working temp.

4.high contrast 3000:1

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
