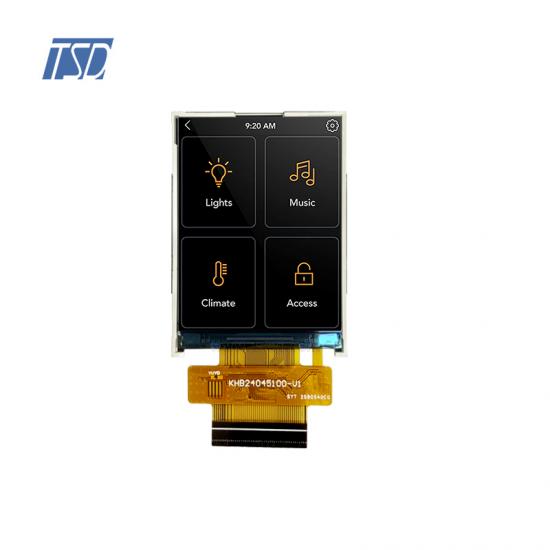

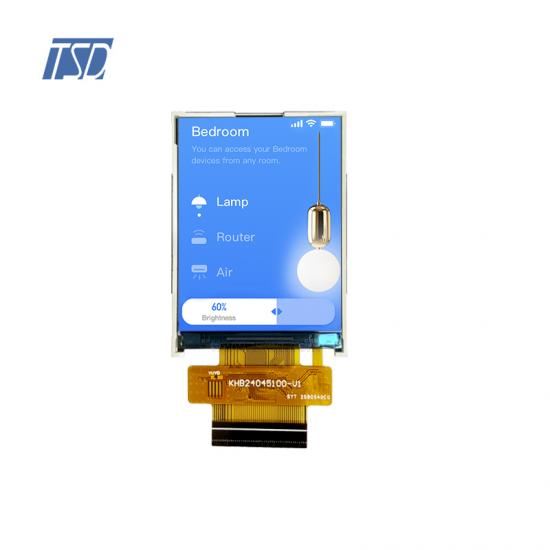

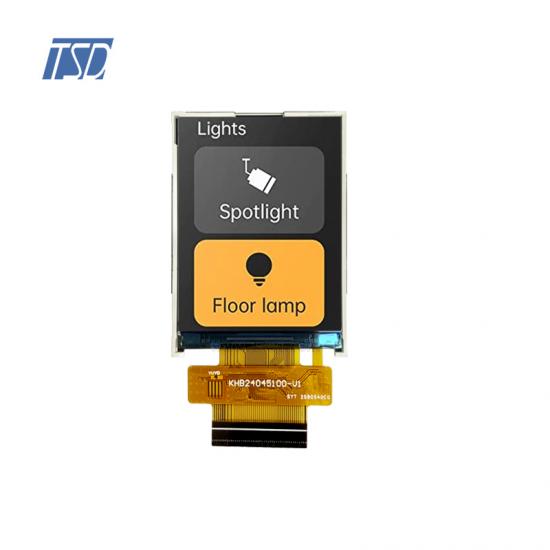

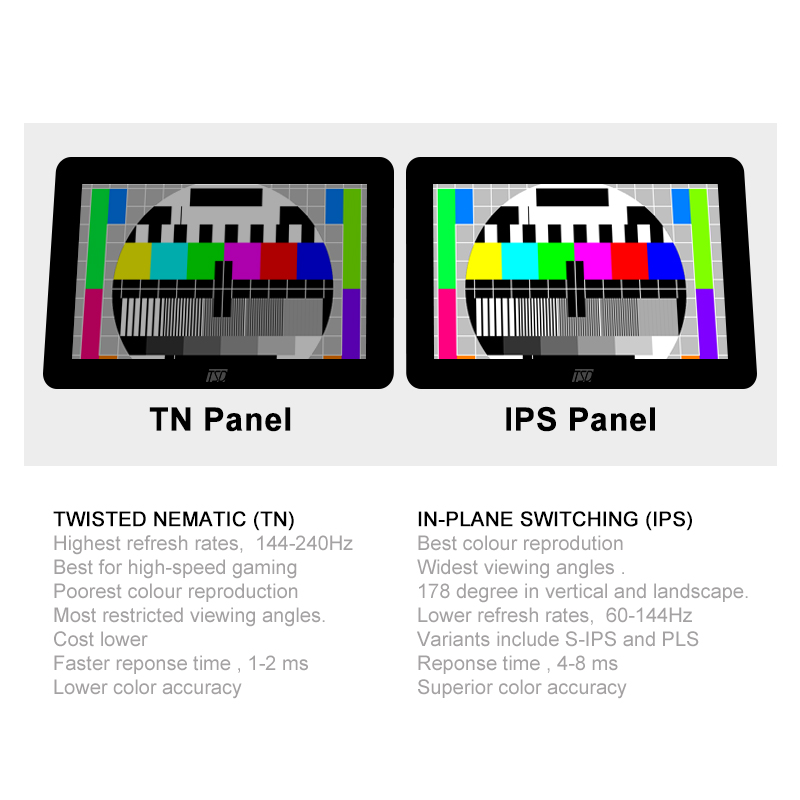

2.31 inch a-si TFT,Transmissive,Normally white,TN display

LCD Typea-si TFT,Transmissive,Normally white,TN

LCD Size2.31 inch

Resolution 320 x (RGB) × 240 pixel

LCM 50.8(W) x 45.8(H) x 2.44(D) mm

Active Area 46.75(W) x 35.06(H) mm

Pixel Pitch0.0487(H)x0.1461(V) mm

Viewing Direction6 o’clock

Color Depth262K

Pixel ArrangementRGB-stripe

Backlight Type4 LEDs

Surface Luminance450 cd/m2

Driver IC: ILI9342C

Interface TypeSPI

Input Voltage: VCC=2.8 V

With/Without: TP Without

Weight : TBD

TEAM SOURCE DISPLAY (Brand:TSD ) was established in 2004. Factory in Dongguan ,have 12000+ sqms workshop . TSD's business scope covers LCD / LCM Module development, single-chip production and materials processing. In a span of more than 15 years, we have developed thousands of LCD and LCM products for Industrial,home appliance, consumer electronics, medical equipment and other applications.TSD also worked on the full range of the LCD products and LCD solutions development, offering customers unique,innovative, and cost effective yet market leading modules , catering for a range of applications and industries.We follow a people-oriented, quality and customer-first approach in all of our dealings. That is why we maintain a clean environment which is conducive for working and take the environment into account during the manufacturing process. Find out more about the benefits of working with us. Contact us today for any of your LCD / LCM / LCD solution projects and requirements.MORE...

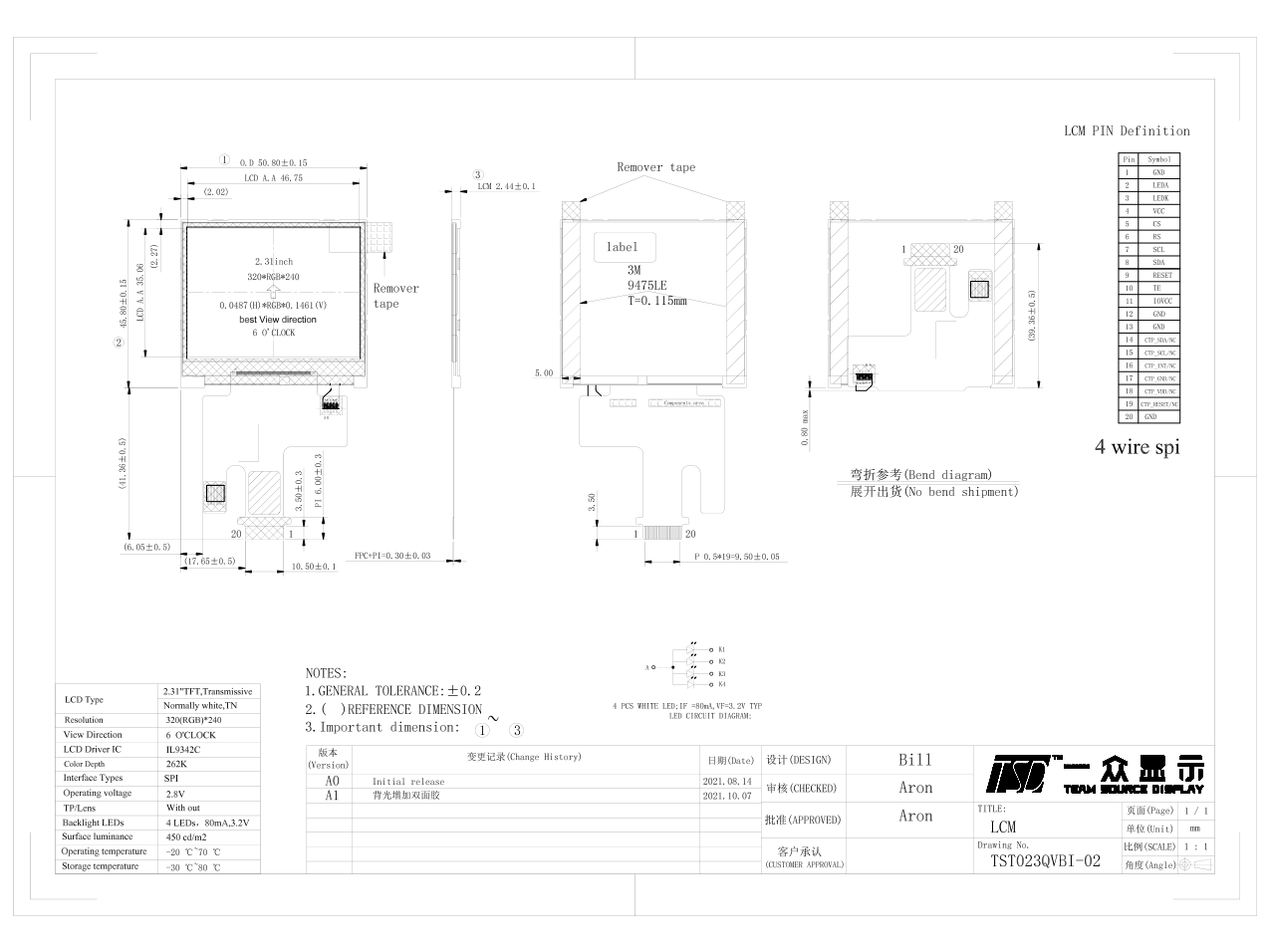

Drawing:



Specifications:





General Specification

Part No.

TST023QVBI-02

Outline Dimension(mm)

50.82x45.8x2.44

Active Area(mm)

46.75x35.06

Resolution(dots)

320xRGB×240

Operating temperature(°C)

-20 ~ +70°C

Storage temperature(°C)

-30 ~ +80°C

Brightness

450cd/m2

Touch panel

Yes

Pixel arrangement

RGB-stripe

Display mode

Normal white

Surface treatment

Antiglare

View direction

6H

Weight(g)

TBD

Power Consumption(w)

Panel

TBD(Typ.)

B/L system

TBD(Typ.)

Interface

SPI

Module lifetime(Hours)

25g





Pins Description

Pin No.

Symbol

Description

1

GND

System Ground. (0V)

2

LEDA

Backlight A Aothod input pin.

3

LEDK

Backlight K Cathode input pin.

4

VCC

Power supply +2.8V

5

CS

Chip select signal.

6

RS

Data/Command Selection pin

7

SCL

Serial interface clock input pin

8

SDA

Serial interface data input/output pin

9

RESET

Reset input signal

10

TE

Tearing effect signal

11

IOVCC

Power supply +1.8~2.8V

12

GND

System Ground. (0V

13

GND

System Ground. (0V)

14

CTPSDA

NC No connect

 15

CTPSCL/NC

No connect

16

CTPINT/NC

No connect

17

CTPGND/NC

No connect

18

CTPVDD/NC

No connect

19

CTPRES/NC

No connect

20

GND

System Ground. (0V)





Applications:



1. Office Electronic Equipment: money counting machine, office phone set, copying mechine.

2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens.

3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale.

4. Medical Devices: sphygmomanometer, ECG machine

5. Sports Equipment: Running machine.

6. Industrial Control Equipment: remote control, punched-card machine.

7. Information Terminal Display: POS, PDA, Handheld devices.
